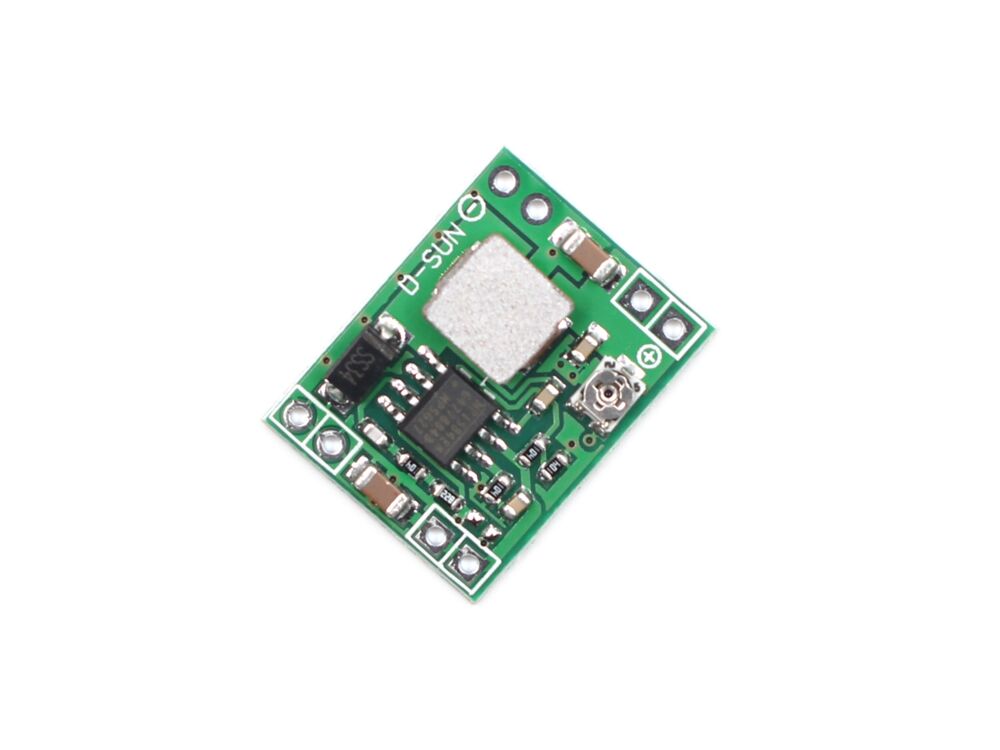

Adjustable Mini DC-DC Module- MP1584EN

$0.55
Availability: In stock
SKU
MPC1518EN

The MP1584 is a high-frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET. It provides 3A output with current mode control for fast loop response and easy compensation. The wide 4.5V to 28V input range accommodates a variety of step-down applications, including those in an automotive input environment. A 100µA operational quiescent current allows use in battery-powered applications.

Features:

  • Wide 4.5V to 28V Operating Input Range
  • Programmable Switching Frequency from 100kHz to 1.5MHz
  • High-Efficiency Pulse Skipping Mode for Light Load
  • Ceramic Capacitor Stable
  • Internal Soft-Start
  • Internally Set Current Limit without a Current Sensing Resistor
  • Package List:

  • 1 x Adjustable Mini DC-DC Module- MP1584EN
  • Documents:

  • Datasheet
