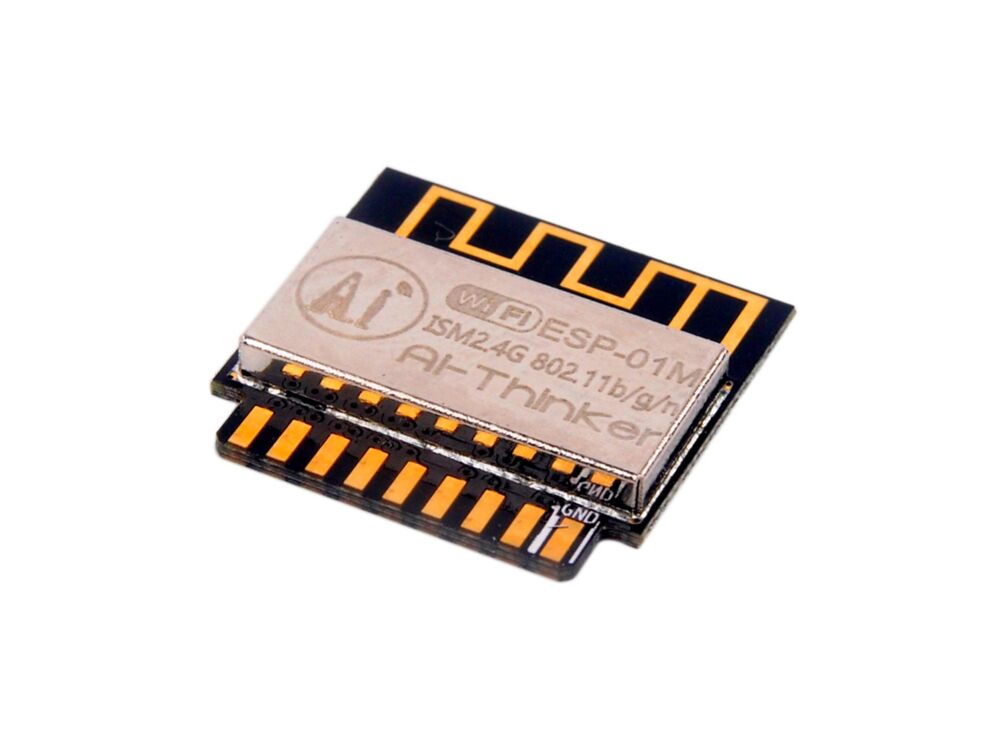

ESP-01M ESP8285 Wifi Module

$1.90
Availability: In stock
SKU
MCC8285ES

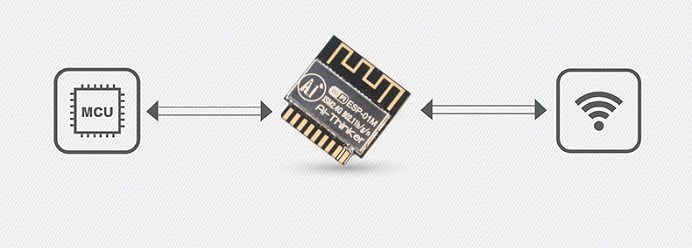

The smallest 802.11b/g/n Wi-Fi SOC module - Low power 32-bit CPU ESP8285, can also serve as the application processor, the clock speed Up to 160MHz with Built-in 10 bit high precision ADC and Integrated Wi-Fi MAC/BB/RF/PA/LNA, can be widely used in a variety of networking, for home automation, industrial wireless control, baby monitors, wearable electronic products, wireless positioning system signals, and other networking applications.

ESP-01M-ESP8285-Wifi-Module_1
ESP-01M-ESP8285-Wifi-Module_1
ESP-01M-ESP8285-Wifi-Module_1

Features:

  • Supports UART/GPIO/PWM/ADC
  • Deep sleep current as low as 20uA
  • Embedded lwIP protocol stack
  • Supports STA/AP/STA + AP operation mode - Support Smart Config/AirKiss technology
  • UART baudrate up to 4Mbps
  • General AT commands can be used quickly
  • Supports remote firmware upgrade (FOTA)
  • Package: DIP-18
  • Size: 18x18x2.8mm
  • SPI Flash: Built-in 1MByte

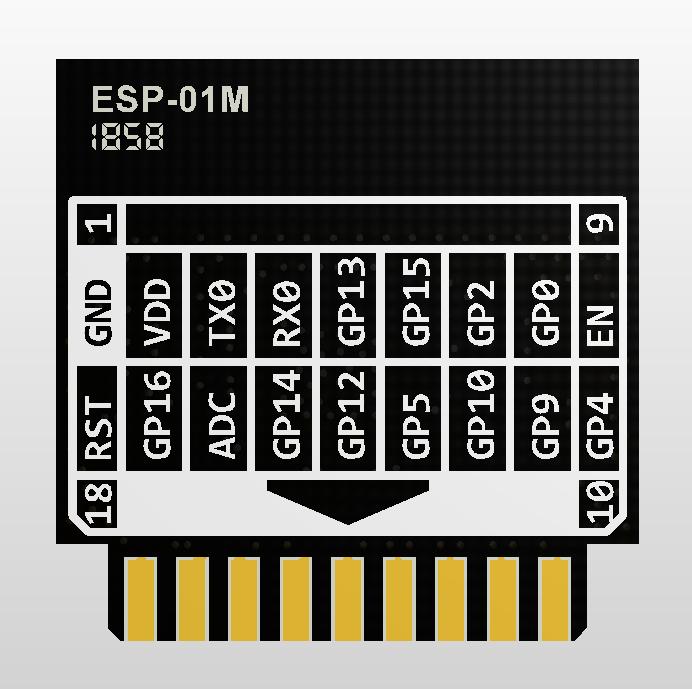

  • Interface: UART/GPIO/PWM/ADC
  • IO Port: 11
  • UART Baudrate: 300-4608000bps, default is 115200
  • Frequency range: 2412-2484MHz
  • Antenna: PCB antenna, 2dBi
  • Secondary development: support
  • Transmit Power:

  • 802.11b: 16±2 dBm (@11Mbps)
  • 802.11g: 14±2 dBm (@54Mbps)
  • 802.11n: 13±2 dBm (@HT20, MCS7)
  • Receiving Sensitivity:

  • CCK, 1 Mbps: -90dBm
  • CCK, 11 Mbps: -85dBm
  • 6 Mbps (1/2 BPSK): -88dBm
  • 54 Mbps (3/4 64-QAM): -70dBm
  • HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
  • Power (Typical Values):

  • Continuous Transmission => Average: ~ 71mA
  • Peak: 300mA
  • Modem Sleep: ~20mA
  • Light Sleep: ~2mA
  • Deep Sleep: ~0.02mA
  • Power Supply: Voltage 3.0V ~ 3.6V Current >300mA
  • Operating temperature: -20 ~ 85℃
  • Storage Environment: -40 ~ 90, < 90%RH
  • Security:

  • WEP/WPA-PSK/WPA2-PSK
  • Package List:

  • 1 x ESP-01M ESP8285 Wifi Module
  • Documents:

  • Datasheet
