An OEM project from an IC producer, annual production quantity 1K~2K, and 200~500 pcs each round.

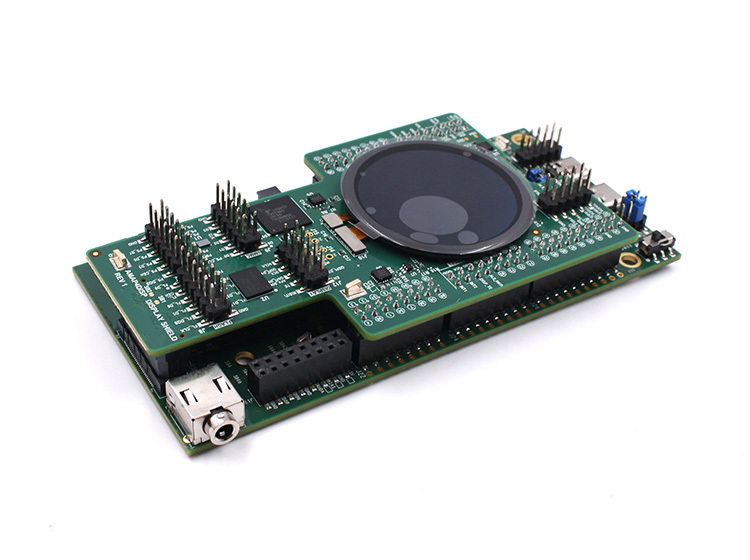

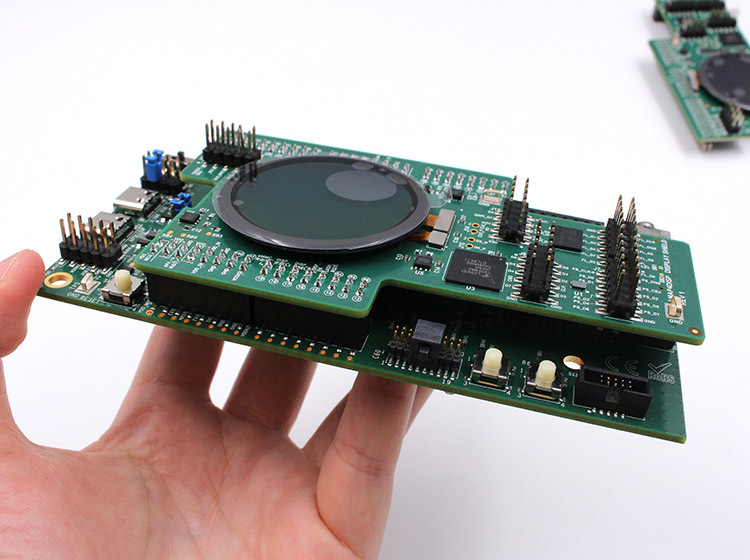

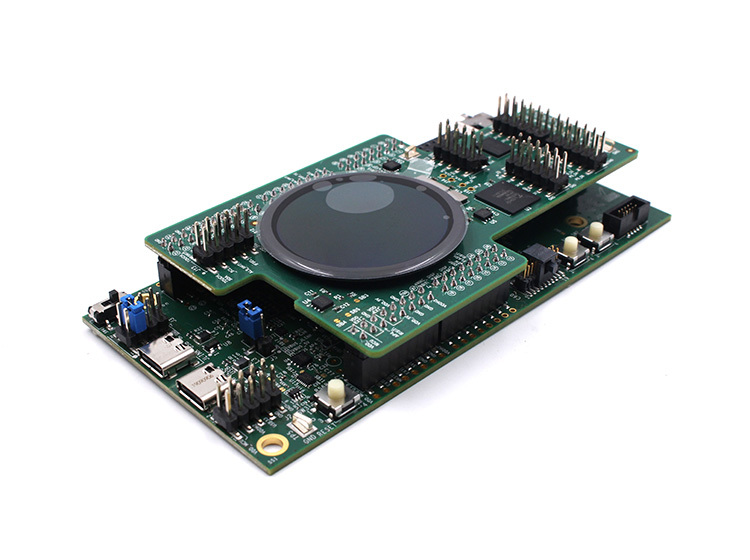

This board is for based on the customers microcontroller IC with Bluetooth.

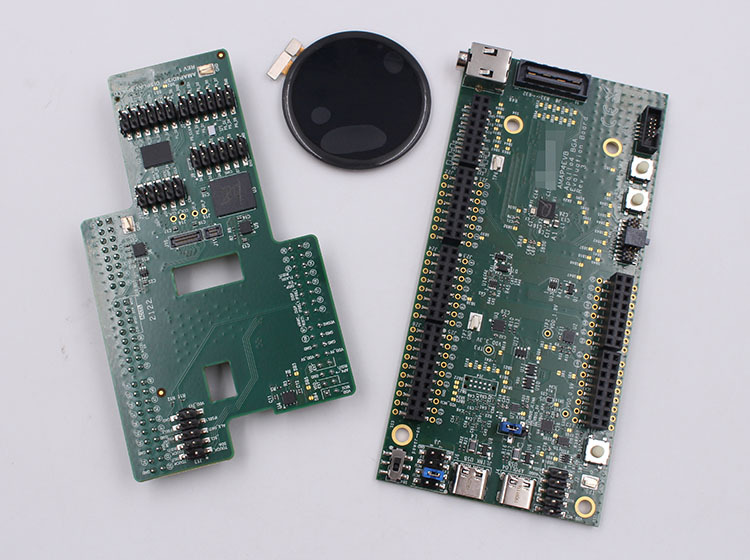

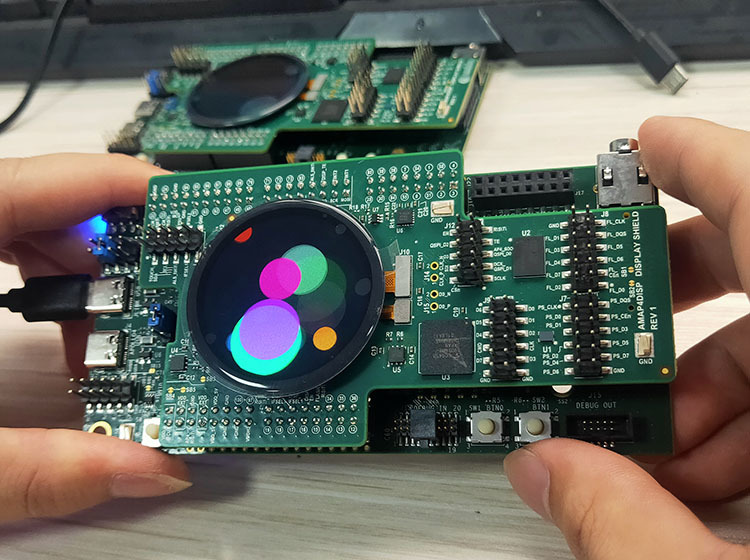

Makerfabs helps on: ● 10-layer HDI PCB production, with lead time 3~4 weeks. ● Components collecting, all the main components are ordered from mouser/digikey/Farnell. ● Components soldering, include the 0.5mm pitch BGA; ● Programming& Testing, with the customer-provided testing guides, all boards are 100% tested before shipping to end-customers. ● Product assembly, Makerfabs customized logo sticker with customer logo, customer ship some other modules such as the round display/package, and Makerfabs help on the final assembly/ packaging.

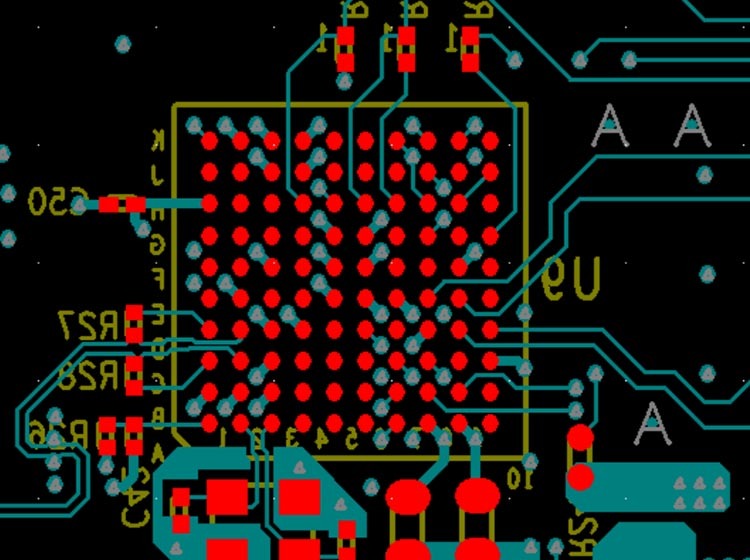

1. 10-layers HDI PCB board with blind vias& resin; 2. BGA soldering with 0.5mm pitch, 100% pass; 3. 100% functional tested; 4. 100% components from Mouser/ Digikey.
