10-32V to 12-35V 150W DC/DC Booster

Click Image for Gallery

Description
Reviews (0)

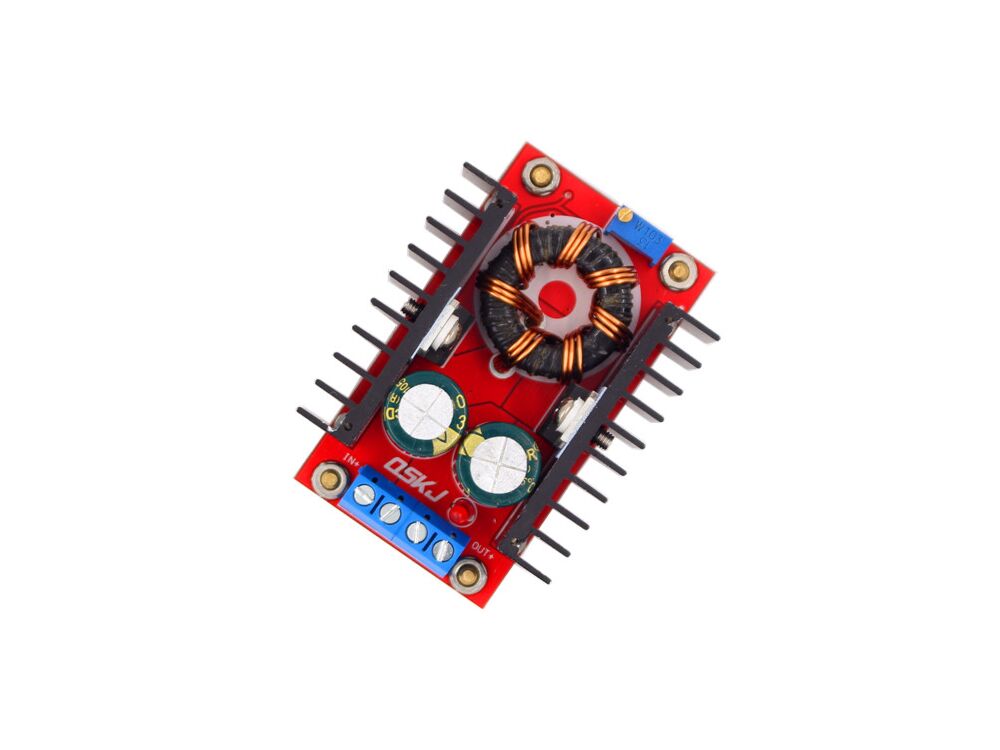

This is a DC-DC boost module, the power of it up to 150 W, it can supply power to your laptop or any other 10-30v power supply. The output voltage is adjustable from 12V to 35V with max output current up to 6A. It is a good power supply module for your DIY electronics project.

Features:

Module Properties: non-isolated step-up module (BOOST)

Input voltage : 10-32V

Output voltage: 12-35V (adjustable, 2V higher than input voltage at least)

Output Current: 6A (MAX)

Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)

Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)

Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)

Output Ripple: 2% (MAX) 20M-bandwidth

Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Full load temperature rise: 45°c

No-load current: 25mA typical

Voltage regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Short circuit protection: None (Please install fuses and protection circuits at Input port.)

Package List:

1 x 10-32V to 12-35V 150W DC/DC Booster
