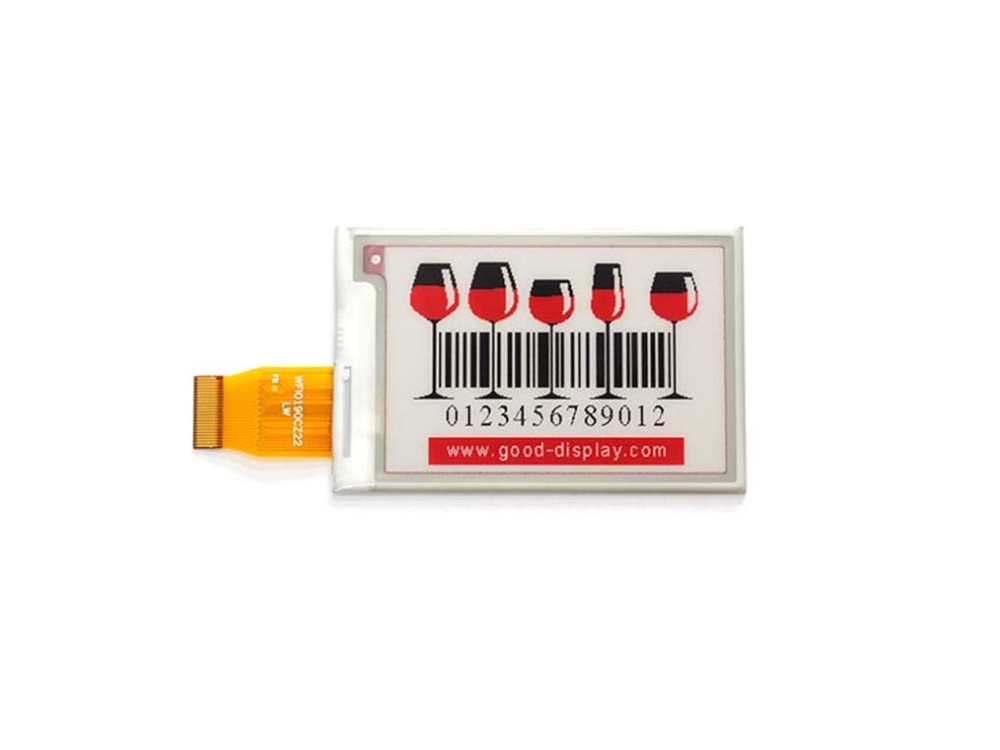

The display is a TFT active matrix electrophoretic display, with interface and a reference system design.
The 2.7" active area contains 264×176 pixels and has 1-bit white/black and 1-bit red full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.
Features:
High contrast
High reflectance
Ultra-wide viewing angle
Ultra-low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Landscape, portrait mode
Antiglare hard-coated front-surface
Low current sleep mode
On-chip display RAM
Waveform stored in On-chip OTP
Serial peripheral interface available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate, and source driving voltage
I2C Signal Master Interface to read an external temperature sensor
