80cm Infrared Proximity Sensor- GP2Y0A21YK0F

80cm Infrared Proximity Sensor- GP2Y0A21YK0F

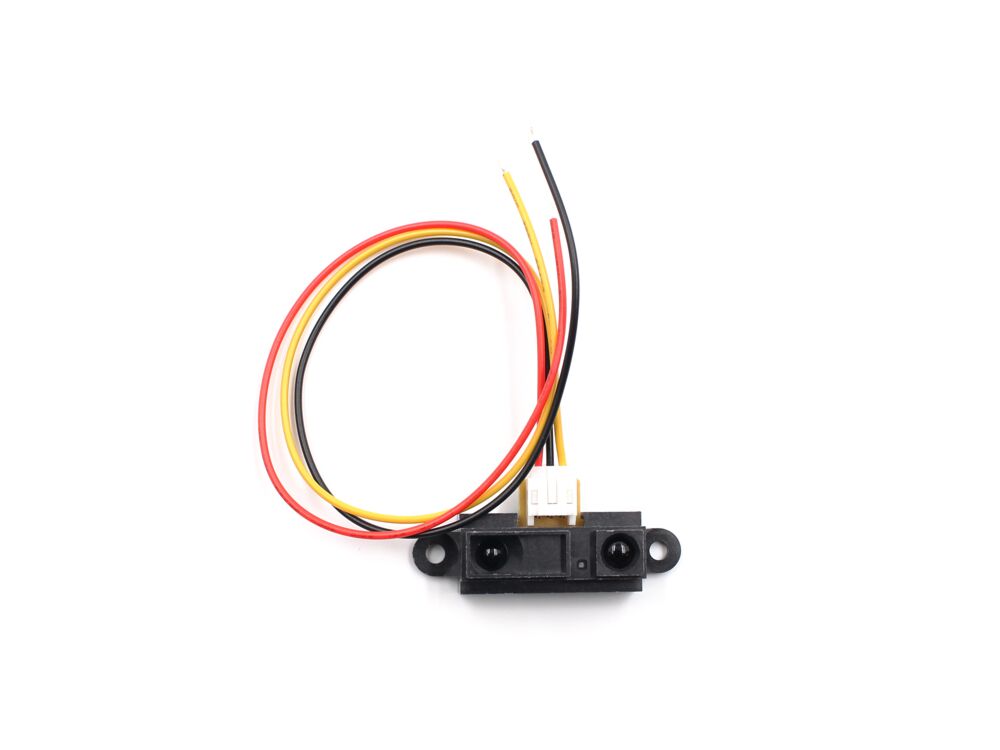

This SHARP distance sensor bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. These sensors are good for short-range detection.

Features:

  • Operating voltage: 4.5 V to 5.5 V
  • Average current consumption: 30 mA (typical)
  • Output signal: analog voltage
  • Output voltage differential over distance range: 1.9 V (typical)
  • Response time: 38 ± 10 ms
  • Package size: 29.5×13.0×13.5 mm (1.16×0.5×0.53")
  • Package List:

  • 1 x 80cm Infrared Proximity Sensor- GP2Y0A21YK0F
  • Package List:Documents:

  • Datasheet
  • Demo code
