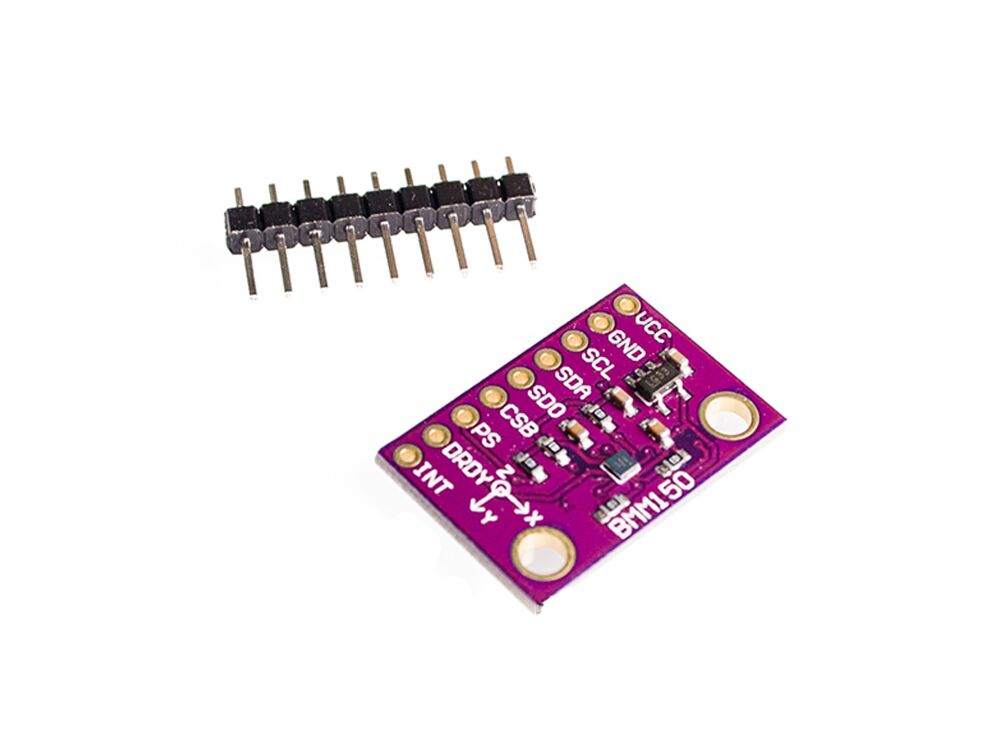

BMM150 Geomagnetic Sensor Compass Module

BMM150 Geomagnetic Sensor Compass Module

BMM150 is a low-power and low-noise 3-axis digital geomagnetic sensor to be used in eCompass applications. BMM150 combines harmonically with an inertial measurement unit (IMU) consisting of a 3-axis accelerometer and a 3-axis gyroscope like Bosch Sensortec’s BMI055. By means of sensor data fusion software tailored to the hardware, also available from Bosch Sensortec, the solution determines the absolute spatial orientation as well as motion vectors with high accuracy and dynamics.


  • Power supply: 2.8-5V
  • Digital interface: IIC and SPI
  • Zero-B offset: ±40µT
  • Magnetic range (typ.): ±1300µT (x,y-axis), ±2500µT (z-axis)
  • Avg. current consumption: 170 µA(low power preset), 500 µA (normal mode)
  • Temperature range: -40°C ~ 70°C
  • Package List:

  • 1 x BMM150 Geomagnetic Sensor Compass Module
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 9452
    • Product Code: MSM150BMM
    • Availability: In Stock
    • $12.00
    • 21 or more $7.00
