CC2640 iBeacon Module

CC2640 iBeacon Module

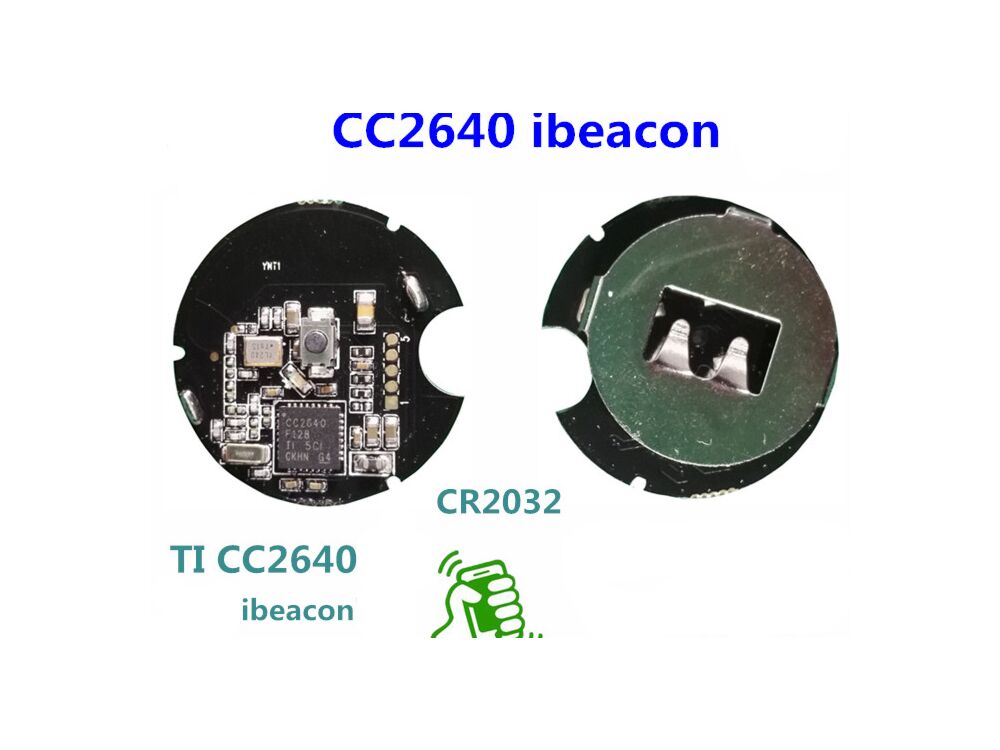

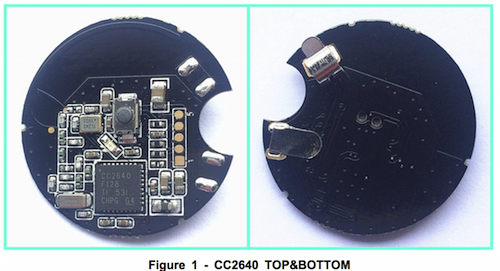

The CC2640 beacon module fully supports the single-mode Bluetooth Low Energy operation, and the output power can support class 2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller or use the module in the Network Processor mode in conjunction with the microcontroller of your choice. RF Core’s dedicated ARM Cortex M0 improves system performance and frees up FLASH memory for custom applications. The beacon with battery shrapnel in its back, and easy to test with a button battery CR2032.



  • Built-in CC2640F128 Bluetooth Smart  (BLE 4.1) System-On-Chip (SOC)
  • 128 kB Flash / 20 KB SRAM
  • RF Output Power: +5 dBm
  • RF Receive Sensitivity: -96 dBm
  • Operating Voltage: 1.8V to 3.8V
  • Operating Temperature: -40 to +85C  8.4 mA Transmit Mode (+5 dBm)
  • 7.4 mA Receive Mode
  • 1μA Standby (SRAM/CPU retention and RTC running) with quick 100 μs startup
  • 200nA Shutdown
  • 61μA/MHz Active CPU Current
  • Drivers, Bluetooth Low Energy
  • Controller, and bootloader in ROM
  • Flexible peripheral set

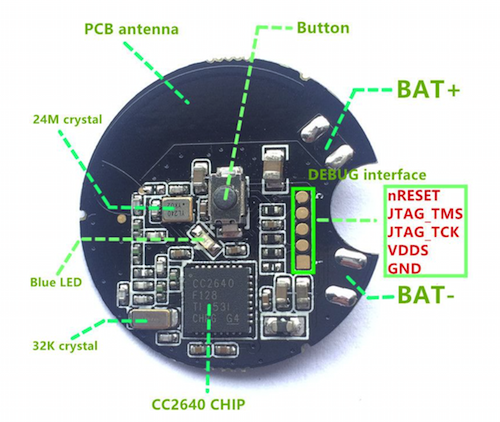

  • Onboard 32 kHz and 24 MHz Crystals
  • Worldwide Acceptance

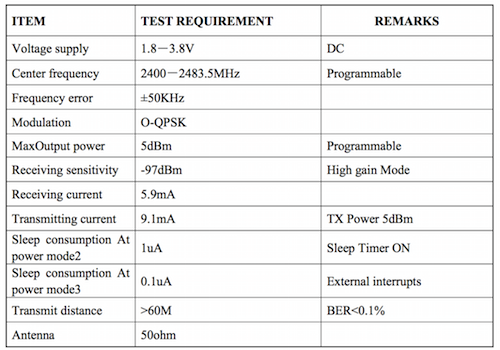

  • Electrical Characteristics :


    Package List:

  • 1 x CC2640 iBeacon Module (Not include the CR2032 battery)
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 8946
    • Product Code: MCB2640CC
    • Availability: In Stock
    • $8.10
    • 21 or more $4.90
