Fingerprints Sensor

Fingerprints Sensor

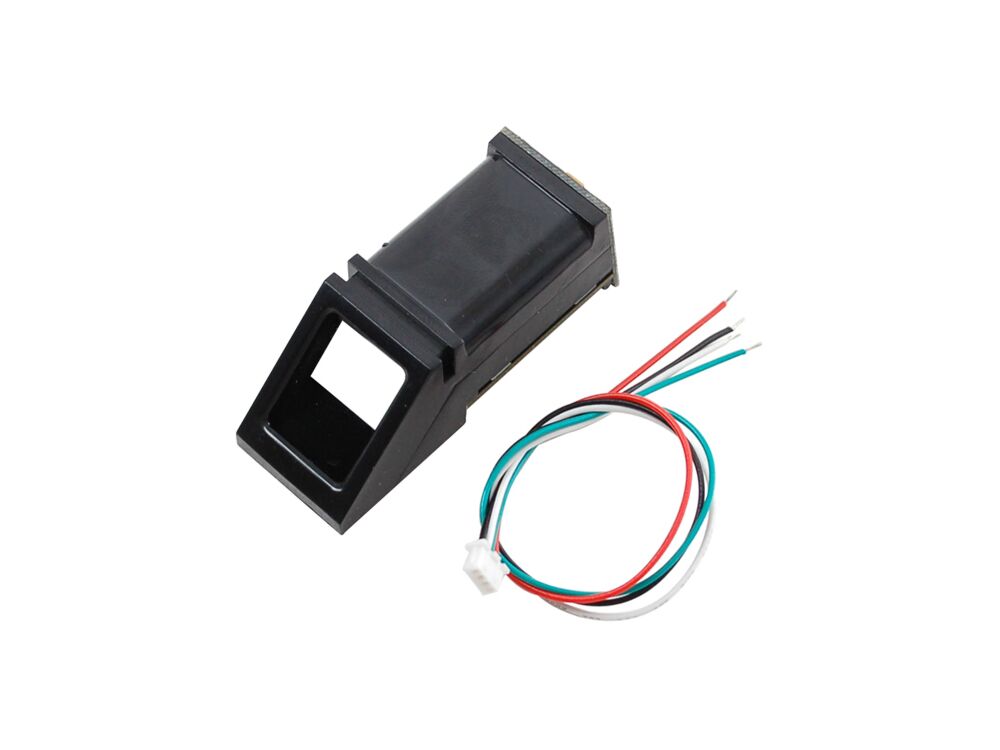

This all-in-one optical fingerprint sensor will make adding fingerprint detection and verification super simple. These modules are typically used in safes - there's a high-powered DSP chip that does the image rendering, calculation, feature-finding, and searching. Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash, and search. You can also enroll new fingers directly - up to 162 fingerprints can be stored in the onboard FLASH memory. There's a red LED in the lens that lights up during a photo so you know it's working.

Features:

  • Supply voltage: 3.6 - 6.0VDC
  • Operating current: 120mA max>
  • Peak current: 150mA max
  • Fingerprint imaging time: <1.0 seconds
  • Window area: 14mm x 18mm
  • Signature file: 256 bytes
  • Template file: 512 bytes
  • Storage capacity: 162 templates
  • Safety ratings (1-5 low to high safety)
  • False Acceptance Rate: <0.001% (Security level 3)
  • False Reject Rate: <1.0% (Security level 3)
  • Interface: TTL Serial
  • Baud rate: 9600, 19200, 28800, 38400, 57600 (default is 57600)
  • Working temperature rating: -20C to +50C
  • Working humidity: 40%-85% RH
  • Full Dimensions: 56 x 20 x 21.5mm
  • Exposed Dimensions (when placed inbox): 21mm x 21mm x 21mm triangular
  • Package List:

  • 1 x Fingerprints Sensor
  • Documents:

  • Arduino library
