GC9A01 1.28 Inch Round LCD Module

Be the first to review this product
$8.90
Availability: In stock
SKU
GC9A01A128MU
  • Buy 21 for $7.20 each and save 19%
Add to Wish List Add to Compare

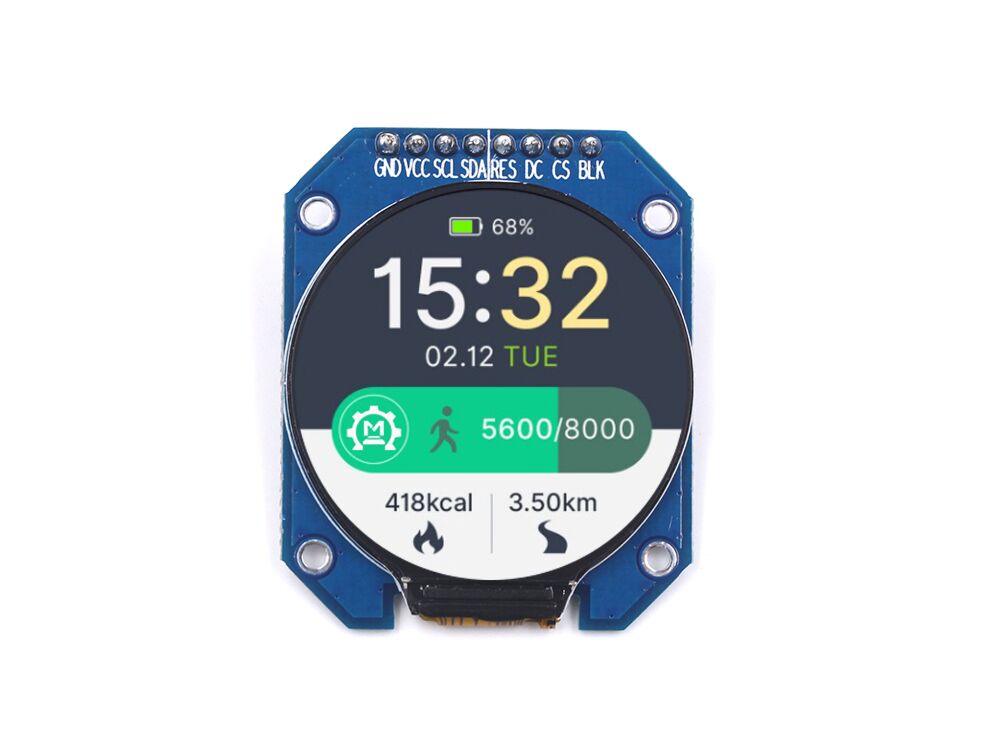

This tiny 240x240 1.28 inch TFT color LCD, with GC9A01. The breakout board communicates to main controllers with standard SPI, such as ARDUINO, and Raspberry Pi.

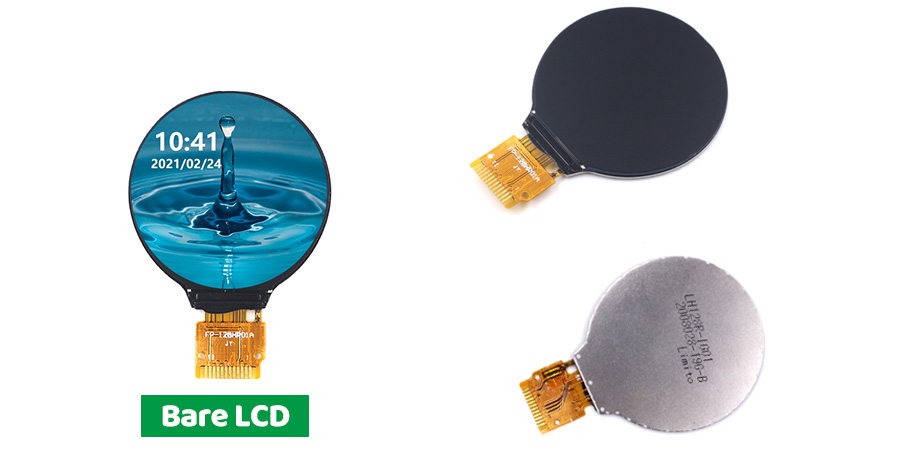

Below is the LCD display used in this module:

GC9A01-1-28-Inch-Round-LCD-Display

Specs:

  • Display: 240x240
  • Size: 1.28 inch
  • Color: RGB
  • Visual Area: Ø33.4
  • Dot (Pixel) Pitch: 0.135x0.135 mm
  • Touch: NO
  • Viewing Angle Range: Left:60.0, Right:60.0, Up:40.0, Down:50.0 degree
  • Brightness(Typ)：400 cd/m2
  • Power Supply(Typ)：3.3 V
  • Operating Temperature: -20℃~70℃
  • Compatible with all models of Raspberry Pi, and Arduino
    •

    Documents:

  • Review
  • GC9A01 LCD Datasheet
  • Module Datasheet
  • Arduino Library
  • Raspberry PI_ Turorial
    •
