DS18B20 Thermometer with Display

DS18B20 Thermometer with Display

DS18B20 Temperature Sensor TO-92

DS18B20 Temperature Sensor TO-92

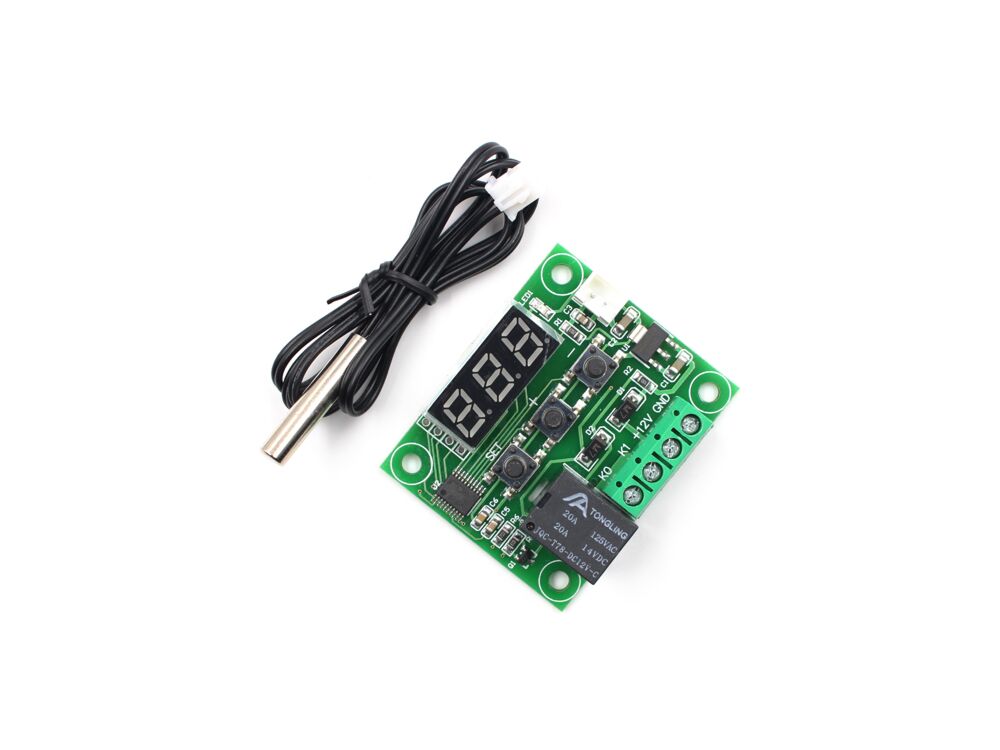

Integrated Temperature Board with Relay

Be the first to review this product
$1.50
Availability: Out of stock
SKU
MSE1209WR
Add to Wish List Add to Compare

This is a -50 to +110 temperature control switch thermostat thermometer. It integrated temperature and relay, you can set the temperature to control other things by relay.

Features:

  • Working voltage: DC 12V
  • Static current: ≤35MA, attract current ≤65MA
  • Output voltage: DC 12V
  • Output power: 20A relay
  • Measurement input: NTC (10K 0.5%) Waterproof Sensor
  • Environmental requirements: -10 ~ 60℃, Humidity 20% ~ 85%
  • Cable length: About 52 cm
  • Temperature range: -50 ~ +110°C
  • Control accuracy: 0.1°C
  • Hysteresis accuracy: 0.1°C
  • Refresh rate: 0.5S
  • High temperature protection: 0 ~ 110°C
  • Resolution: When the temperature is 0.1°C, the resolution is -9.9~99.9, another temperature segment is 1°C
  • Temperature control mode: ON / OFF
  • Dimensions: 48mm x 40mm
    •

    Package List:

  • 1 x Integrated Temperature Board with Relay
