Mabee_MLX90640

Mabee_MLX90640

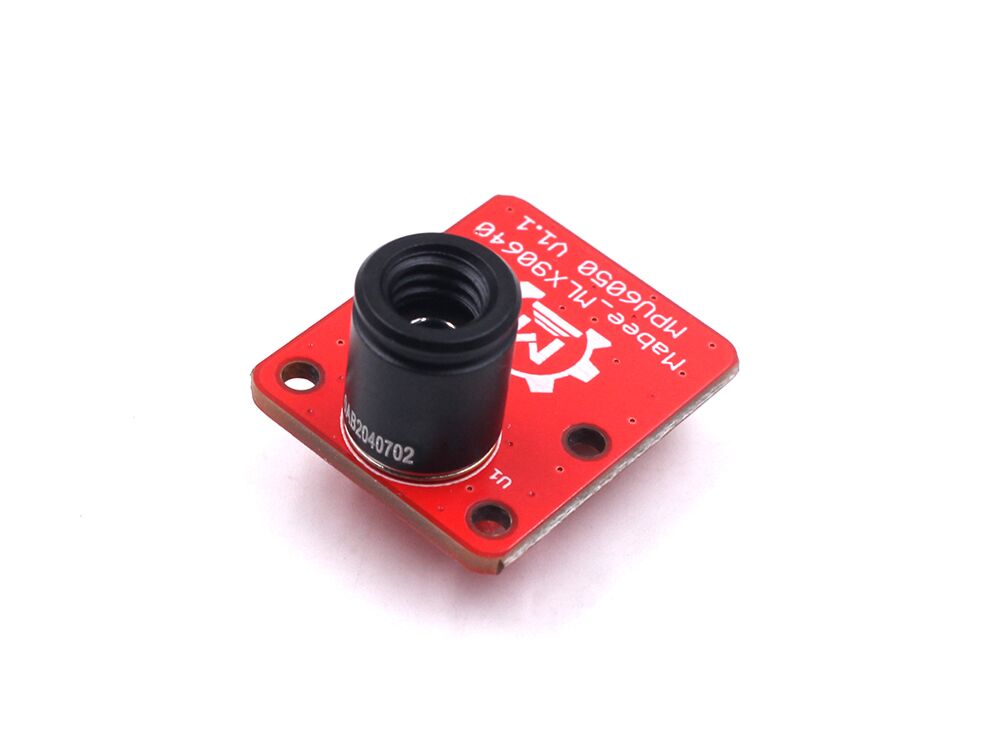

This thermal camera measures temperature and displays the thermal imaging figure. It is based on MLX90640, a 32x24 array thermal sensor (MLX90640), detects the temperature of objects from feet away with the accuracy of ±1.5℃.

The FOV(Field of View) of this camera is 55°x35°, and the temperature measurement range is -40℃~300℃. It communicates with the controller with the I2C interface. Please check our demos of usage with ESP32-S3 parallel TFT Touch:

DIY a thermal imaging monitor:

You can check this blog for more details: DIY A Thermal Imaging Monitor.

Features:

  • IR Thermal Sensor Array 32X24(MLX90640)
  • 55°x35° FOV(field of view)
  • Temperature measurement range:-40℃~300℃
  • I2C Grove interface
  • Voltage: 3.3v
  • Current Consumption: 18mA
  • FOV: 55°x35°
  • Temperature Resolution: ±1.5°C
  • Interface: I2C(0x33)
  • Links:

  • Datasheet
  • Github
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 14306
    • Brand: Makerfabs
    • Product Code: MAB90640
    • Availability: In Stock
    • $39.80
