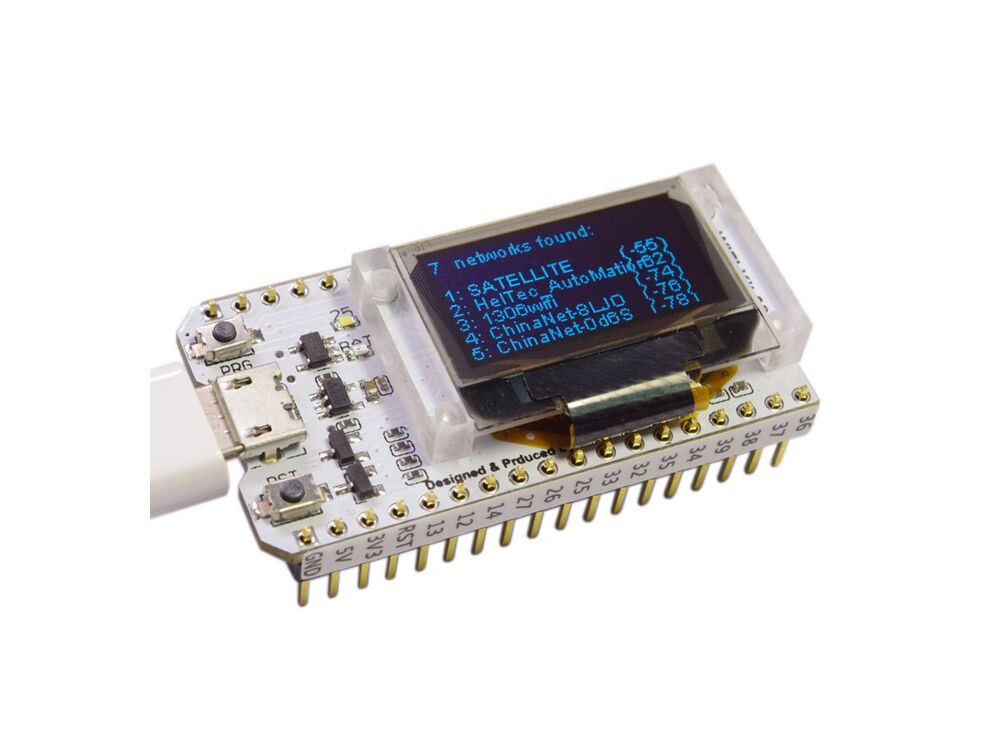

OLED WIFI Kit 32

OLED WIFI Kit 32
Click Image for Gallery
OLED WIFI Kit 32 OLED WIFI Kit 32 OLED WIFI Kit 32 OLED WIFI Kit 32

OLED WIFI Kit 32 is the new development of the cost-effective networking program, the main chip using Espressif ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.

Features:

  • Main chip: espressif esp32
  • OLED size and color: 0.96 inch blue
  • Operating voltage: 3.3V to 7V
  • Operating temperature range: -40 °C to + 90 °C
  • Supports Sniffer, Station, softAP and Wi-Fi Direct modes
  • Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
  • Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
  • Receiver sensitivity up to - 98 dBm
  • UDP continues to throughput by 135 Mbps
    •

    Package List:

  • 1 x OLED WIFI Kit 32

    • Documents:

  • Usage
    • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 5227
    • Product Code: MCC32KESP
    • Availability: In Stock
    • $15.50
    • 6 or more $12.80
