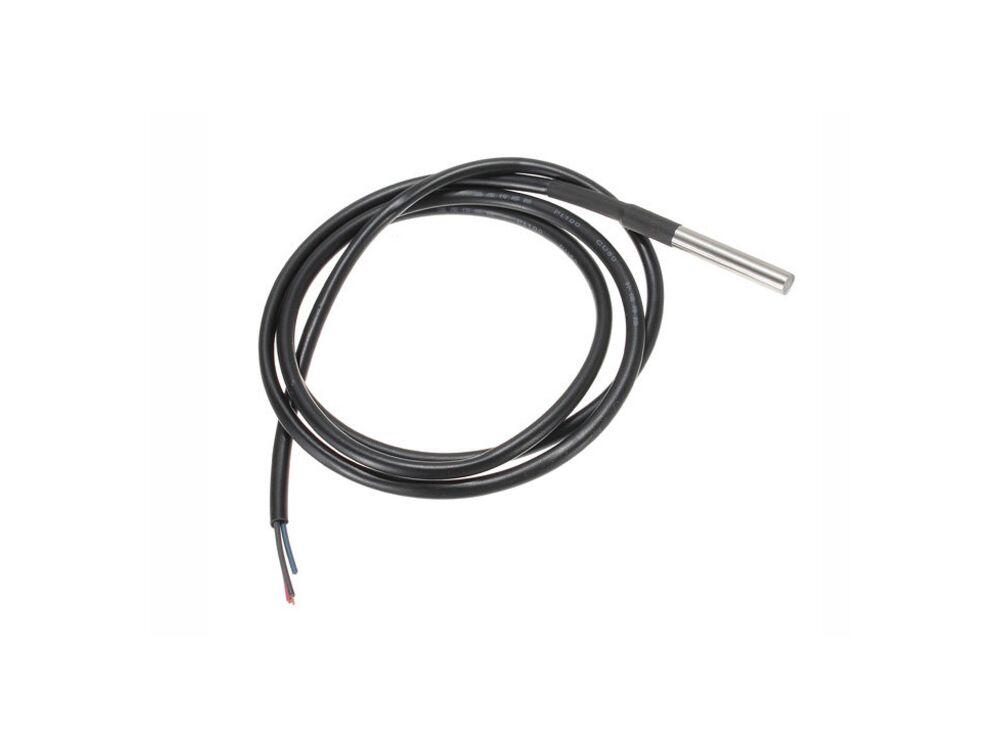

One Wire Waterproof Temperature Sensor DS18B20

One Wire Waterproof Temperature Sensor DS18B20

This is a highly accurate and reliable temperature sensor for the Raspberry Pi. The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of -55°C to +125°C and is accurate to ±0.5°C over the range of -10°C to +85°C.

In addition, the DS18B20 can derive power directly from the data line ("parasite power"), eliminating the need for an external power supply. (But this version no support the parasite power, please note that).

Features:

  • Stainless steel tube 6mm diameter by 30mm long
  • Cable is 36" long / 91cm, 4mm diameter
  • Usable temperature range: -55 to 125°C (-67°F to +257°F)
  • 9 to 12-bit selectable resolution
  • Uses 1-Wire interface- requires only one digital pin for communication
  • Unique 64 bit ID burned into the chip
  • ±0.5°C Accuracy from -10°C to +85°C
  • Usable with 3.0V to 5.5V power/data
  • Package List:

  • 1 x One Wire Waterproof Temperature Sensor DS18B20
  • Documents:

  • Demo code
  • Datasheet
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 8577
    • Product Code: MSE18B20D
    • Availability: In Stock
    • $0.70
    • 51 or more $0.60
    This product has a minimum quantity of 21
