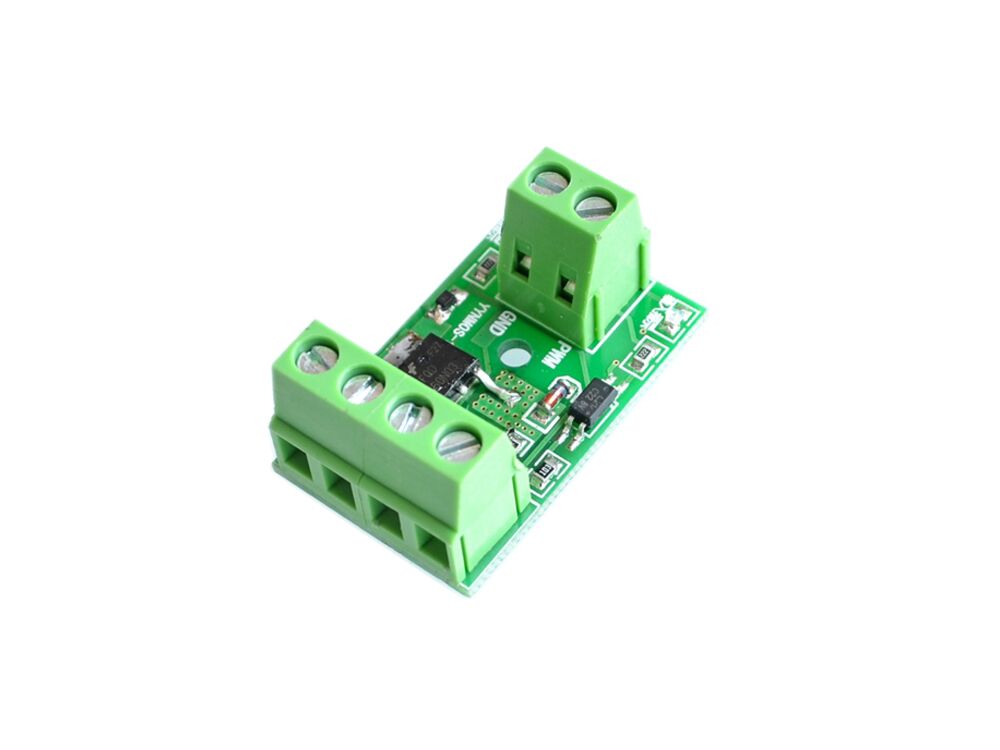

PWM MOS Driver with Optocoupler

PWM MOS Driver with Optocoupler

This is a PWM MOS driver, which based on a MOSFET and Optocoupler, with low inner resistance, can through bigger current. With this module, you can control DC motor, mini DC pump, LED lamp strings, and so on with PWM.

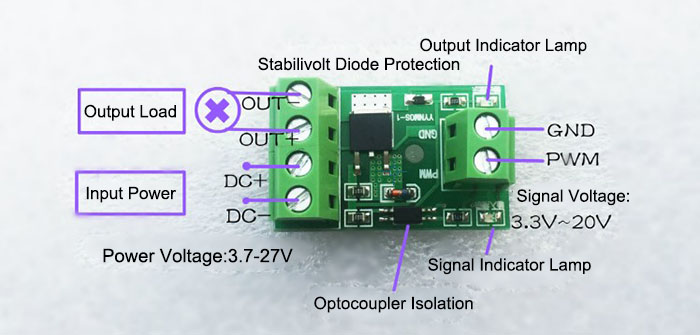

Interface Introduction:
1. DC+: device DC power positive
2. DC-: device DC power negative
3. PWM: signal input port (connects MCU IO ports, PLC interface, DC power)
4. GND: signal negative port
5. OUT+: output port positive (connects device positive)
6. OUT-: output port negative (connects device negative)

PWM-MOS-Driver-with-Optocoupler

Features:

  • Input Signal: 3-20V PWM signal
  • Output Capacity: DC 3.7-27V, and the current is within 10A
  • PWM Frequency: 0-20KHz
  • Package List:

  • 1 x PWM MOS Driver with Optocoupler
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 6000
    • Product Code: MAD010MOS
    • Availability: In Stock
    • $1.50
    • 21 or more $1.20
    This product has a minimum quantity of 6
