Robot-M Smart Robot Kit for Arduino

Robot-M Smart Robot Kit for Arduino

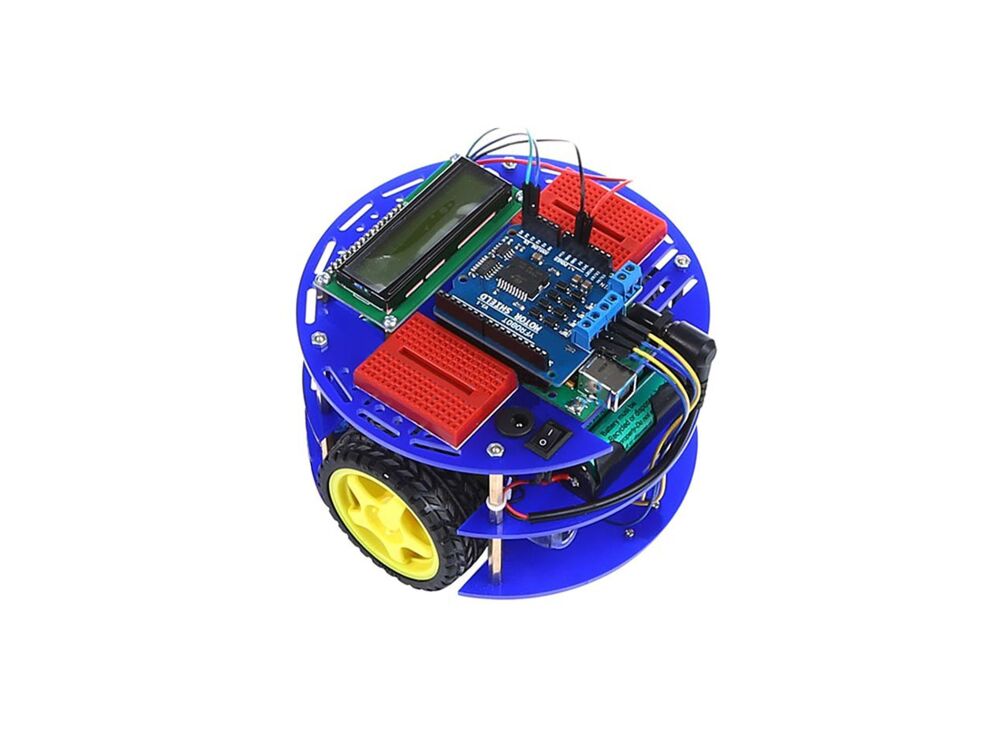

This is a smart car based on Arduino. It is entirely based on the Arduino open source platform, with three layers body, the bottom is used to install the motor can also be used to extend tracing, obstacle avoidance sensor, the second layer can be used to install the battery, and extended speed function, the top is used to install the control board and various types of sensors.

Even if you are a novice, can use it to get the building starting to create a platform for a simple, entry test, to finally make a full personality, feature-rich moving robots, all will bring you fun.

It is an intelligent mobile platform + Arduino learning platform, so whether you are a novice or a veteran, like Arduino, then from now on!


  • Input voltage range: 3-9V
  • Operating voltage: 9V
  • Working current: 800MA
  • Traveling speed: 0.8m / s (MAX)
  • Motor drive: High MOS drive
  • Infrared remote control distance: 8 meters (MAX)
  • Bluetooth remote control distance: 10 meters (MAX)
  • Body diameter: 14.8cm
  • Body height: 9cm (excluding board)
  • AGL: 1.3cm
  • Vehicle weight: About 750 grams (without batteries)
  • Package List:

  • 3 x ROBOT-M chassis
  • 2 x TT DC gear motor
  • 2 x 65mm rubber wheel
  • 2 x L-type bracket
  • 2 x Universal ball
  • 1 x I2C LCD module
  • 1 x Blue bird UNO board
  • 1 x PM-R3 motor driver expansion board
  • 1 x SPP-CA Bluetooth module
  • 1 x Remote control transmitter receiver module
  • 1 x Fire receiver
  • 2 x Button
  • 3 x Blue LED
  • 3 x Red LED
  • 10 x 10K resistor
  • 10 x 1K resistor
  • 10 x Cable ties
  • 8 x 35mm pillar single-pass (with screw)
  • 4 x 8mm pillar (with screw)
  • 4 x 12mm pillar (with screw)
  • 2 x 14500 battery box (with screw)
  • 1 x Power switch
  • 1 x DC charging socket
  • 2 x Mini breadboard
  • 15 x Dupont line (male-male)
  • 15 x Dupont line (female-male)
  • Heat Shrink Tubing + Screws (Several)
