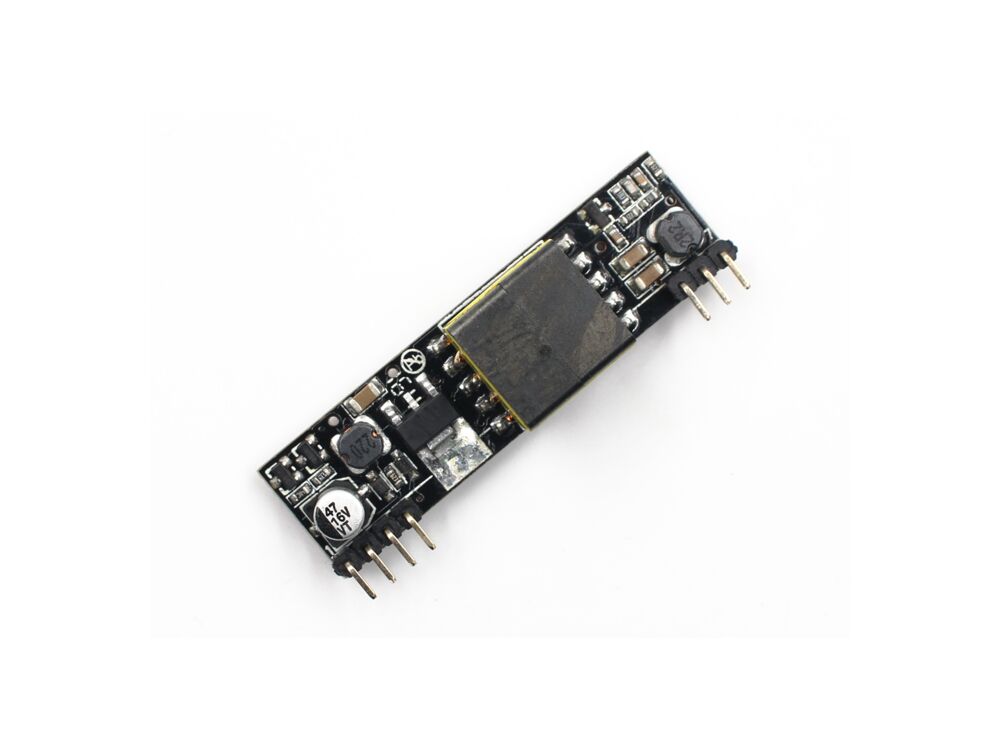

RT9400 POE Module

RT9400 POE Module

The RT9400 series of modules are designed to extract power from a conventional twisted-pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard.

The RT9400 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port.

The RT9400 provides a Class 0 signature. The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.

Features:

  • IEEE802.3af compliant
  • Input voltage range 36V to 57V
  • Integral high-efficiency DC/DC converter
  • Low output ripple and noise
  • High performance with low price
  • Short-circuit protection
  • Adjustable Output
  • Output voltage: 5V
  • Transformer isolation, 1500V isolation (input to output)
  • Package List:

  • 1 x RT9400 POE Module
  • Documents:

  • Datasheet
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 6620
    • Product Code: MCI9400RT
    • Availability: In Stock
    • $7.00
    This product has a minimum quantity of 6
