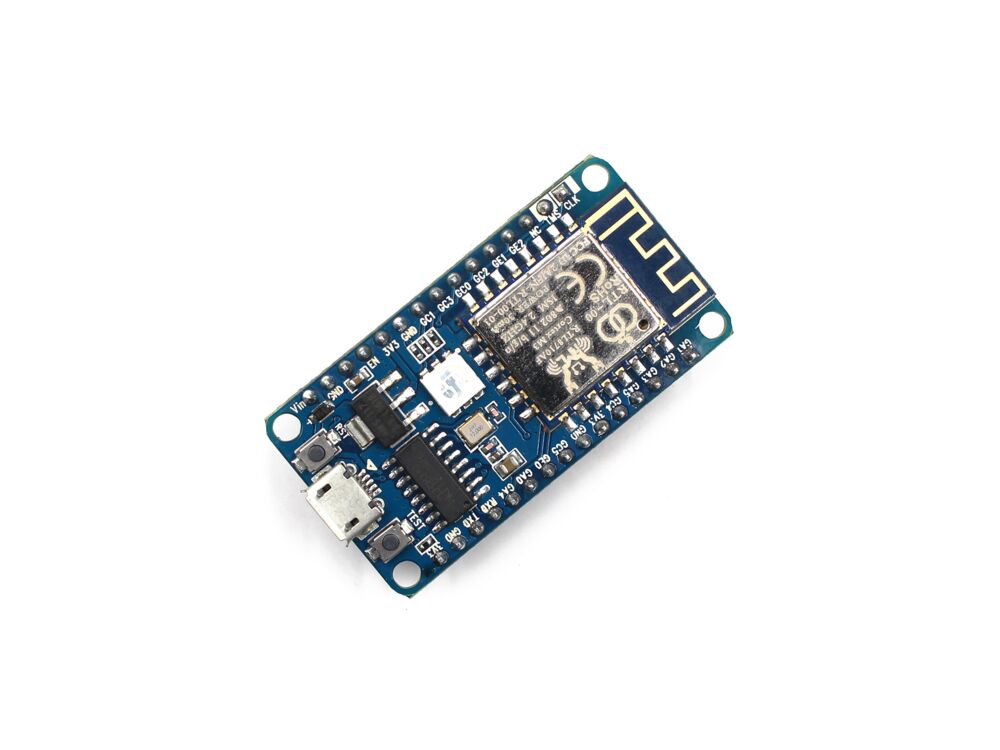

RTL8710AF Development Board

RTL8710AF Development Board

RTLDuino is an Arduino Compatible WiFi IoT Board based on Realtek RTL8710AF WiSoC. It with many of the same functions as ESP8266, but with an ARM Cortex M3 core instead. The board is actually based on the B&T RTL-00 module. This is obviously quite easier to use since you don’t need to solder any cables to connect a USB to TTL board since RTLduino is equipped with CH340g and a micro USB port.

Features:

  • WiSoC – Realtek RTL8710AF ARM Cortex-M3 micro-controller @ 83 MHz
  • Connectivity – 802.11 b/g/n WiFi
  • USB – 1x micro USB port for programming and power
  • Expansion – 2x 16-pin breadboard-friendly headers with GPIOs, UART, SPI, I2C, PWM, I2S, power signals
  • Misc – Reset and test button, RGB LED
  • Power Supply – 5V via micro USB port or Vin pin
  • Dimensions – 49 x 24.5 mm (same as NodeMCU)
  • Package List:

  • 1 x RTL8710AF Development Board
  • Documents:

  • AT Cammand
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 6591
    • Product Code: MCW0RTLDB
    • Availability: Out Of Stock
    • $6.80
