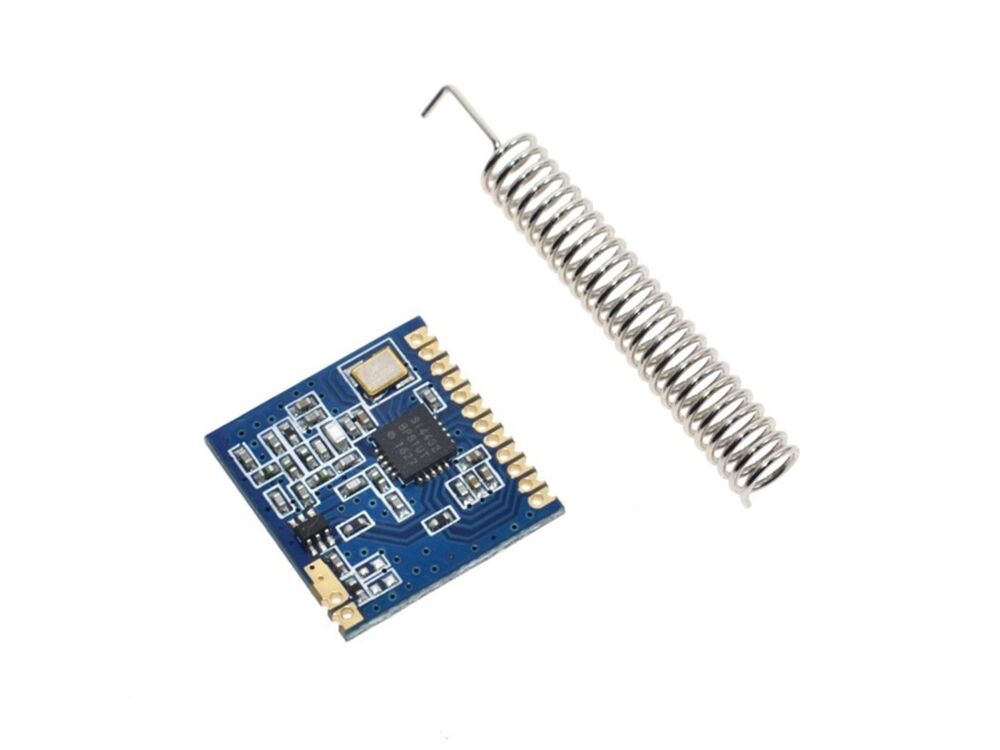

SI4432 Wireless Transceiver 1000M 433MHz

SI4432 Wireless Transceiver 1000M 433MHz

SI4432 is a complete, compact, low-power wireless transceiver module. EZRadioPRO series ISM band wireless chip of Silicon Labs SI4432 by Silicon launched the company in 2009, it is a highly integrated wireless ISM band transceiver chip that can work within 240-960 MHZ frequency range with high receiver sensitivity (- 121 dBm) and the maximum output power can reach + 20DBm, which to some extent to meet the RF signal amplification development difficult problem. By then the maximum power setting conditions, open communication distance up the kilometers.

Features:

  • Frequency: 433MHz
  • Sensitivity: Up to -120 ~ -121dBm (1.2Kbps)
  • Wireless transmitter maximum output power: 20dBm (1.2Kbps, 433M)
  • Data transfer rate: 0.123-256kbps
  • Modulation mode: FSK, GFSK, and OOK
  • Power: 1.8-3.6 V
  • 64-byte transmit and receive data register (FIFO)
  • Package List:

  • 1 x SI4432 Wireless Transceiver 1000M 433MHz
  • Documents:

  • Datasheet
  • Arduino Library
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 3899
    • Product Code: MCR4432SI
    • Availability: Out Of Stock
    • $2.00
