Universal Caster Wheel

Availability: In stock
  • Buy 51 for $0.15 each and save 70%

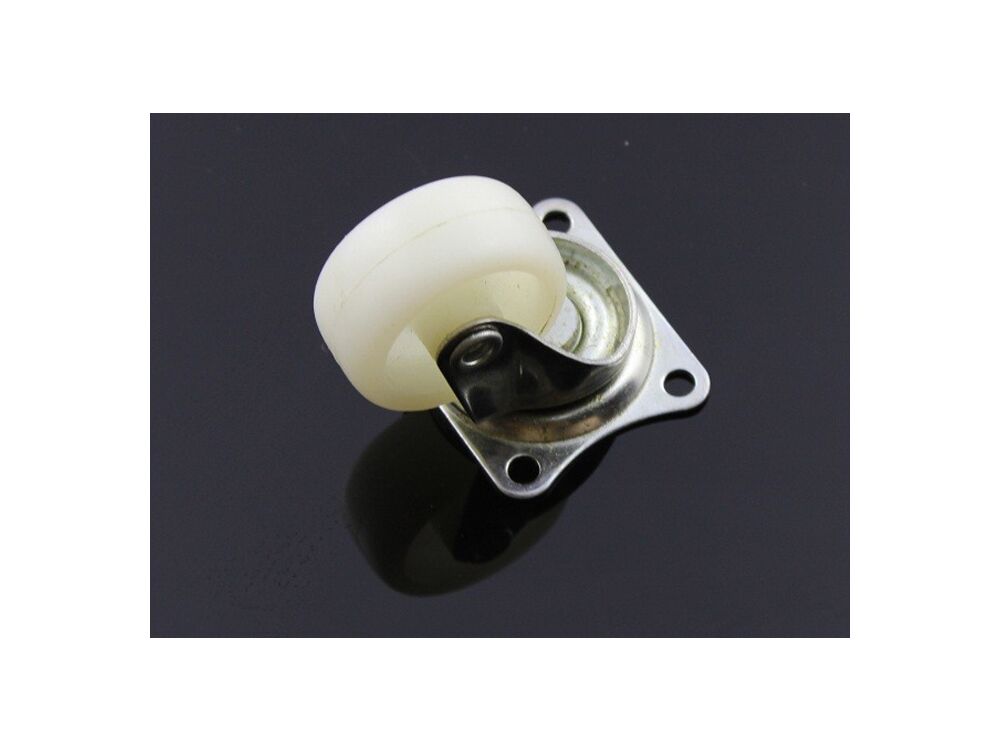

This is a Universal Caster Wheel with high quality and lightweight. It can withstand a weight of up to 10 kg. It can use in the robot smart car, slide, and so on.


  • Bracket material: 1.2MM ordinary cold-rolled steel plate, blue zinc plated surface
  • Wheel material: White nylon PP material (wear-resistant, lightweight, cheap)

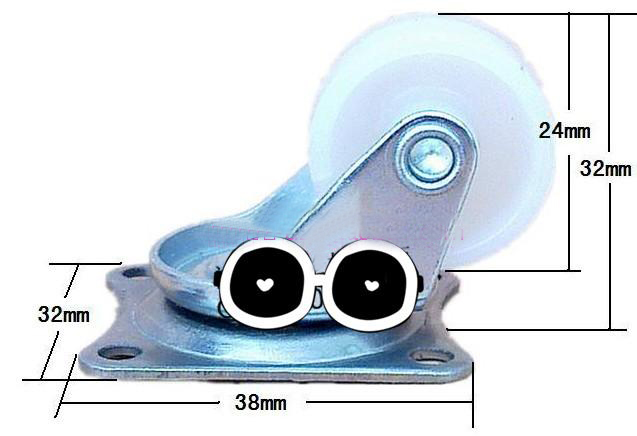

  • Wheel diameter: 24 mm
  • Tread width: 13 mm
  • Installation height: 32 mm
  • Base plate size: 38 * 32 (mm)
  • Diameter of mounting hole: 4 mm
  • Center distance of mounting holes: 30 * 24 mm
  • Single caster load bearing: 10 kg
  • Single caster weighs about 0.04 kg
  • Universal-Caster-Wheel

    (Note: The above data are manually measured, and there may be slight errors).

    Tips: Please note that the weight of 4 wheels can only be calculated as the sum of the weight of 3 wheels. Because there are always uneven roads, the four wheels cannot be uniformly stressed. The wider bearing length also helps to extend the life of the wheel.


  • Fixed hole: 4mm
  • Material: Iron+plastic
  • Package List:

  • 1 x Universal Caster Wheel
