WS2812B RGB LED 8 Bit Display

WS2812B RGB LED 8 Bit Display

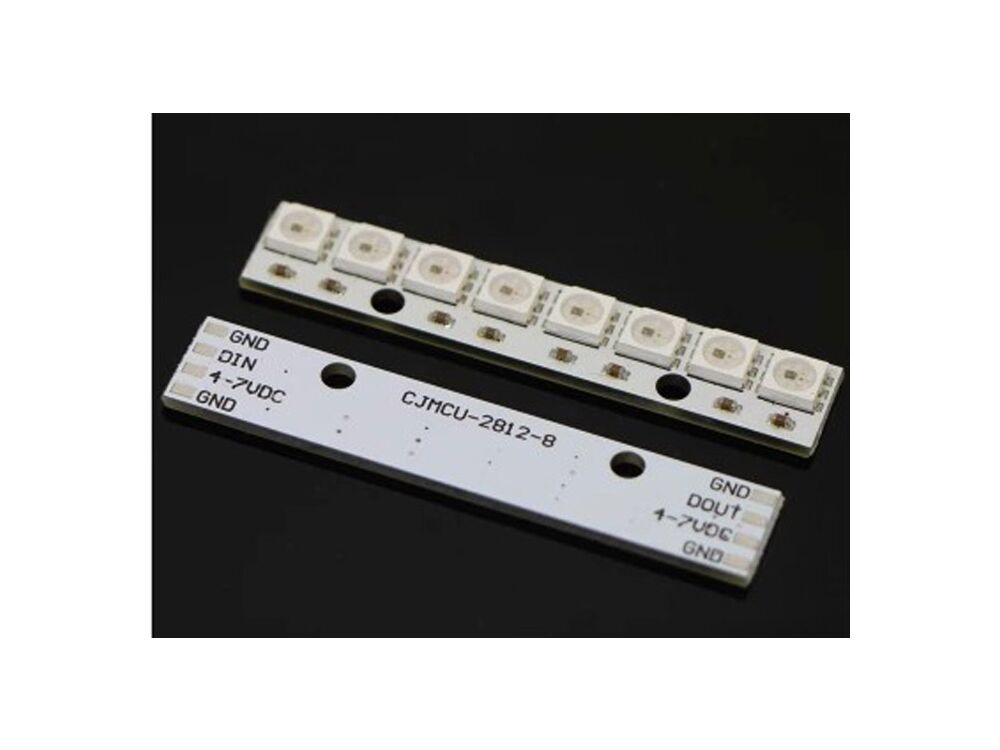

WS2812B RGB LED 8-bit Display crammed 8 of the tiny 5050 (5mm x 5mm) smart RGB LEDs onto a PCB with mounting holes and a chainable design. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC (4-7V works) and you're ready to rock.

The LEDs are 'chainable' by connecting the output of one stick into the input of another. There is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microcontroller such as an AVR, Arduino, PIC, mbed, etc.


  • Working voltage: DC 4-7 V
  • Size: 51x10 mm
  • Package List:

  • 1 x WS2812B RGB LED 8-bit Display
  • Documents:

  • Arduino Library
