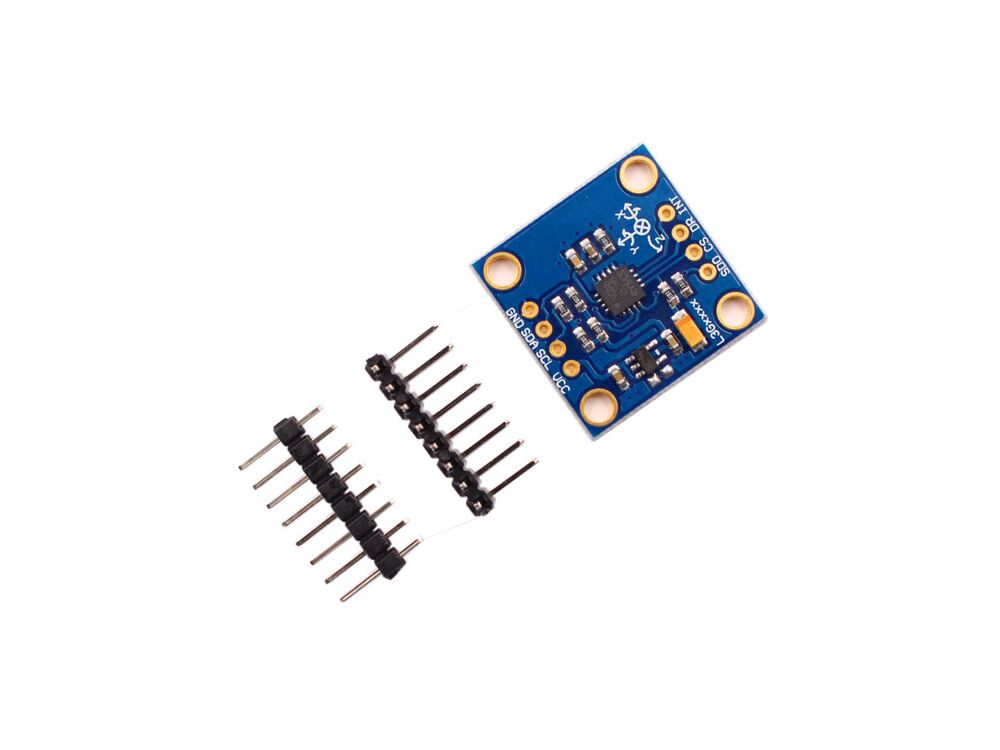

3 Axis Gyro-L3G4200D

3 Axis Gyro-L3G4200D

The L3G4200D is a low-power three-axis angular rate sensor able to provide unprecedented stability of zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI).

The L3G4200D has a full scale of ±250/±500/±2000 DPS and is capable of measuring rates with a user-selectable bandwidth.

Features:

  • Operating voltage: 3V-5V
  • Three selectable full scales (250/500/2000dps)
  • I2C/SPI digital output interface
  • 16 bit-rate value data output
  • 8-bit temperature data output
  • Two digital output lines (interrupt and data ready)
  • Integrated low- and high-pass filters with user-selectable bandwidth
  • Ultra-stable over temperature and time
  • Low voltage-compatible IOs (1.8 V)
  • Embedded power-down and sleep mode
  • Embedded temperature sensor
  • Embedded FIFO
  • High shock survivability
  • Extended operating temperature range (-40°C to +85 °C)
  • Package List:

  • 1 x 3 Axis Gyro-L3G4200D/span>
  • Documents:

  • Demo Code
  • Datasheet
