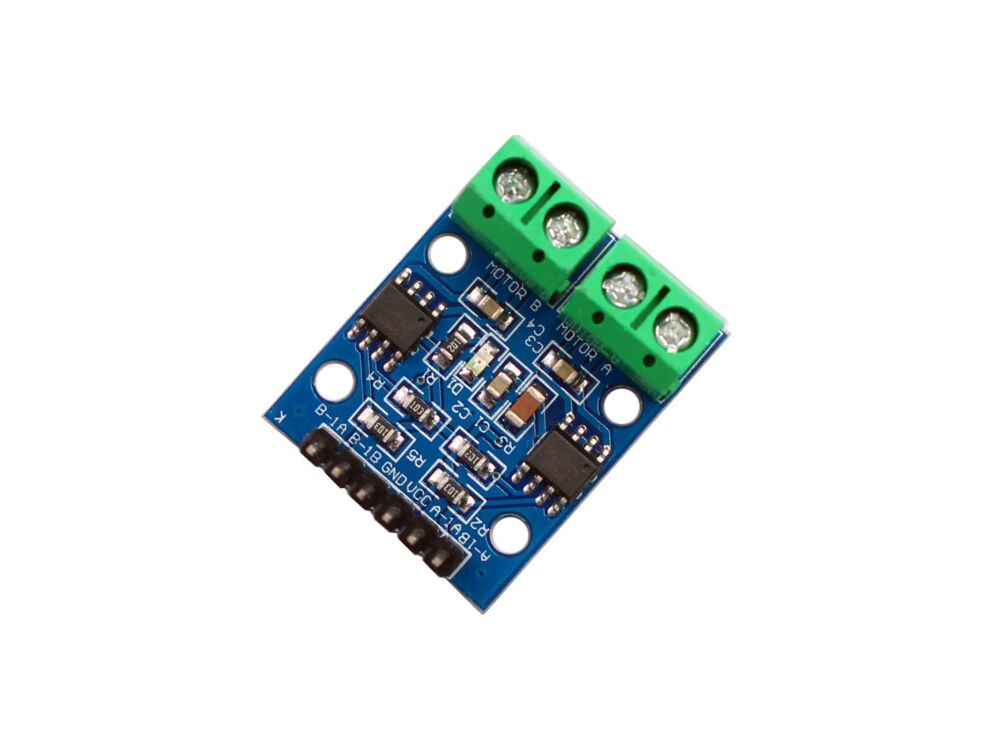

L9110 Dual-Channel H-Bridge Motor Driver Module - 12V 800mA

L9110 Dual-Channel H-Bridge Motor Driver Module - 12V 800mA
L9110, The ASIC device control and drive motor design two-channel push-pull power amplifier discrete circuits integrated into a monolithic IC, peripheral devices and reduce the cost, improve the reliability of the whole. This chip has two TTL / CMOS compatible with the level of the input. With good resistance, two output terminals can directly forward and reverse movement of the drive motor. It has a large current driving capability, each channel through 750 ~ 800mA of continuous current, peak current capability up to 1.5 ~2.0A. More than enough for a small DC motor.

Features:

  • Motor Voltage: 2.5 ~12V
  • Motor channels: 2
  • Max Continuous Current per Channel: 800mA
  • Size: 31mm x 22mm x 12mm
  • Package List:

  • 1 x L9110 Dual-Channel H-Bridge Motor Driver Module - 12V 800mA
  • Documents:

  • Datasheet
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 5569
    • Product Code: MAM9110DM
    • Availability: In Stock
    • $1.00
    • 21 or more $0.72
