DRV8825 Stepper Motor Driver

DRV8825 Stepper Motor Driver

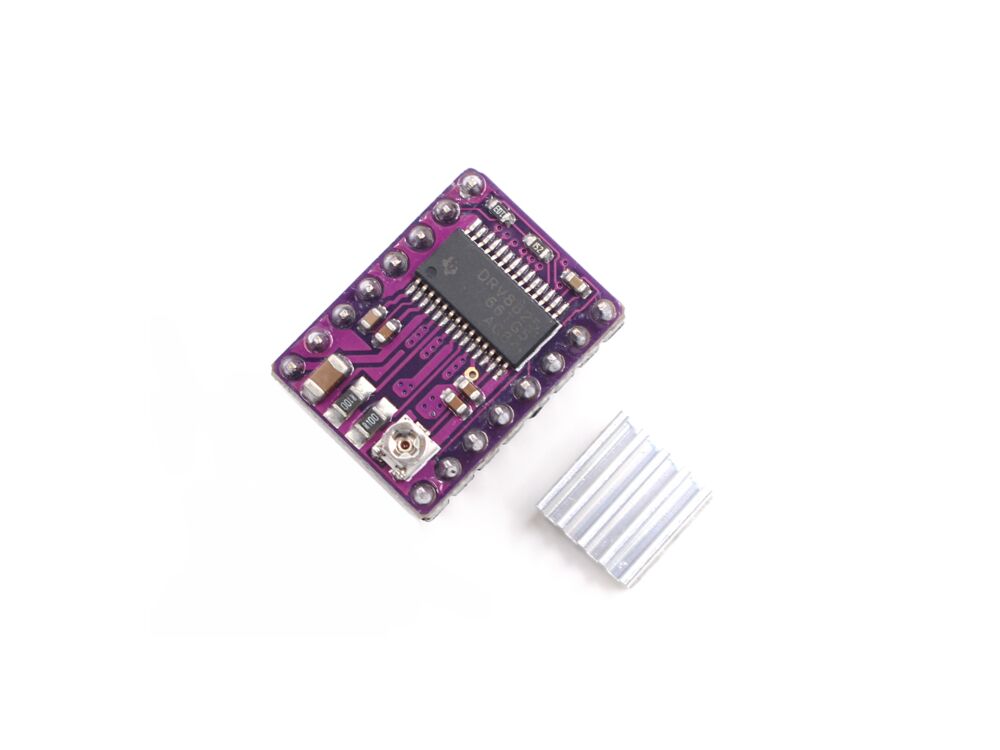

This breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). The driver has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. This board ships with 0.1″ male header pins included but not soldered in.

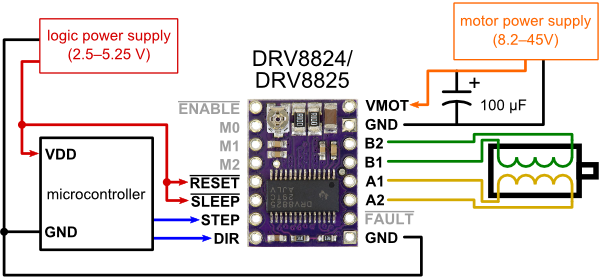

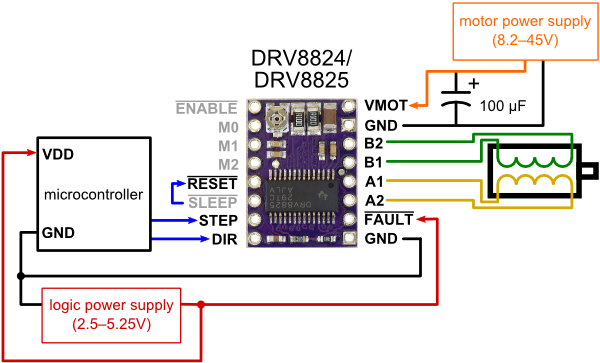

There are 2 wiring modes for connecting a microcontroller to the DRV8825 module:

DRV8825_pro1
DRV8825_pro2

Features:

  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • 45 V maximum supply voltage
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • Package List:

  • 1 x DRV8825 Stepper Motor Driver
  • Documents:

  • Datasheet
  • Arduino Library
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 8035
    • Product Code: MAM8825MD
    • Availability: In Stock
    • $3.20
    This product has a minimum quantity of 21
