TB6600 Bipolar Stepper Motor Driver

Click Image for Gallery

Description
Reviews (0)

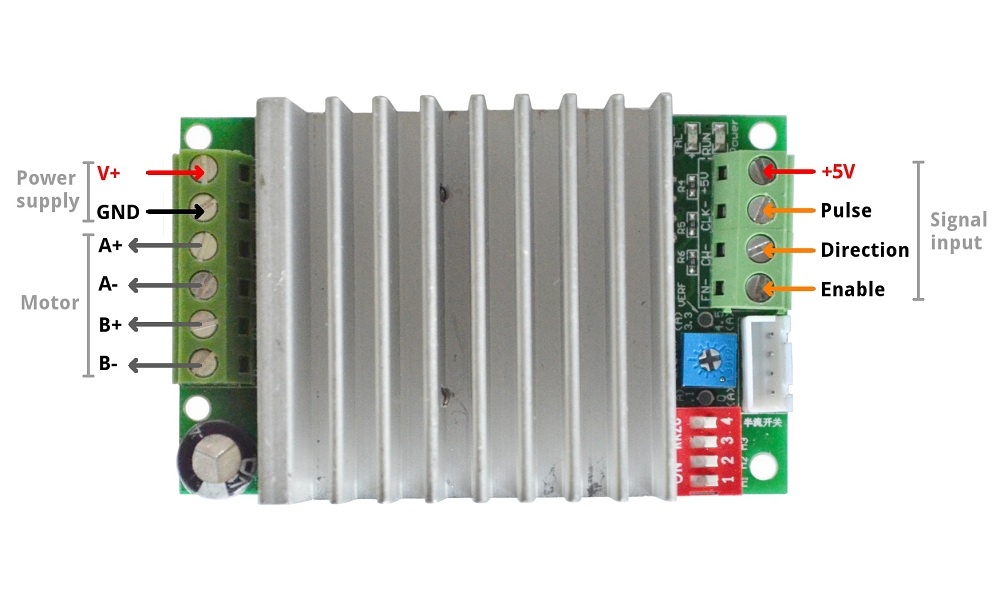

The TB6600HQ is a PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver. Forward and reverse rotation control is available with 2-phase, 1-2-phase, W1-2-phase, 2W1-2-phase, and 4W1-2-phase excitation modes. 2-phase bipolar-type stepping motor can be driven by an only clock signal with low vibration and high efficiency.
TB6600-Bipolar-Stepper-Motor-Driver

Features:

Working voltage: 12~48V

Max current: up to 4.5A

Single-chip bipolar sinusoidal micro-step stepping motor driver

BiCD 0.13 (50 V) process

Ron (upper + lower) = 0.4 Ω (typ.)

Forward and reverse rotation control available

Selectable phase drive (1/1, 1/2, 1/4, 1/8, and 1/16 step)

Built-in input pull-down resistance: 100 kΩ (typ.)

Output monitor pins (ALERT): Maximum of IALERT = 1 mA

Output monitor pins (MO): Maximum of IMO = 1 mA

Equipped with reset and enable pins

Single power supply

Package List:

1 x TB6600 Bipolar Stepper Motor Driver
