A4988 Stepper Motor Driver

A4988 Stepper Motor Driver

The A4988 is a complete microstepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, with an output drive capacity of up to 35 V and ±2 A. The A4988 includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes.

Features:

  • Mixed and Slow current decay modes
  • Automatic current decay mode detection/selection
  • Internal UVLO
  • Crossover-current protection
  • 3.3 and 5 V compatible logic supply
  • Thermal shutdown circuitry
  • Short-to-ground protection
  • Shorted load protection
  • Five selectable step modes: full, 1/2, 1/4, 1/8, and 1/16
  • Package List:

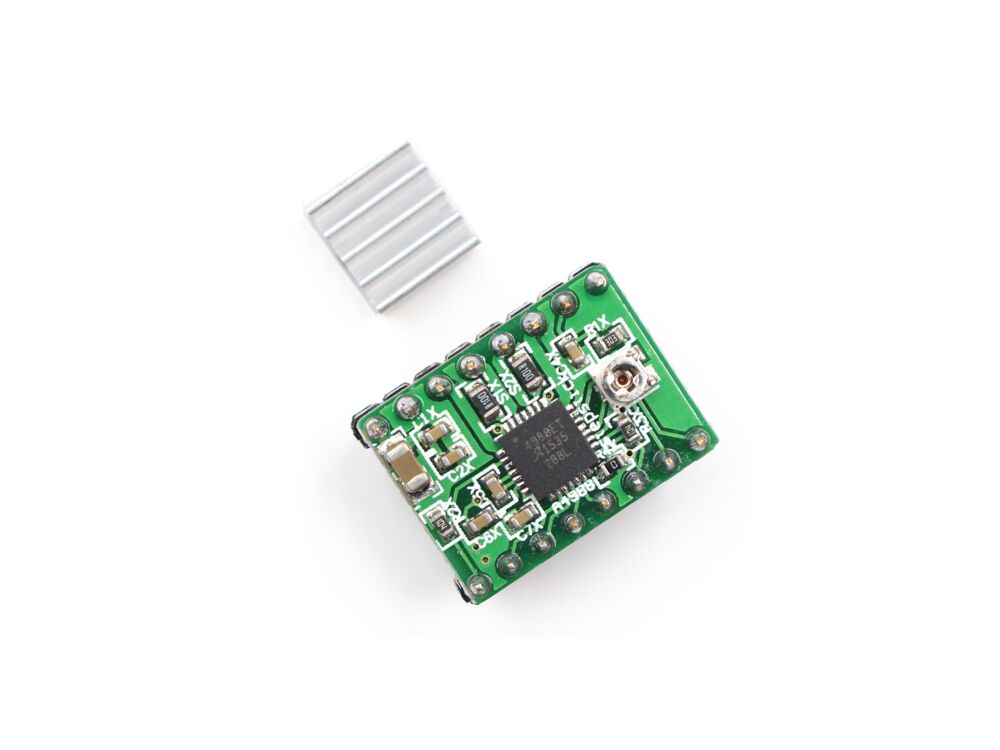

  • 1 x A4988 Stepper Motor Driver
  • Documents:

  • Datasheet

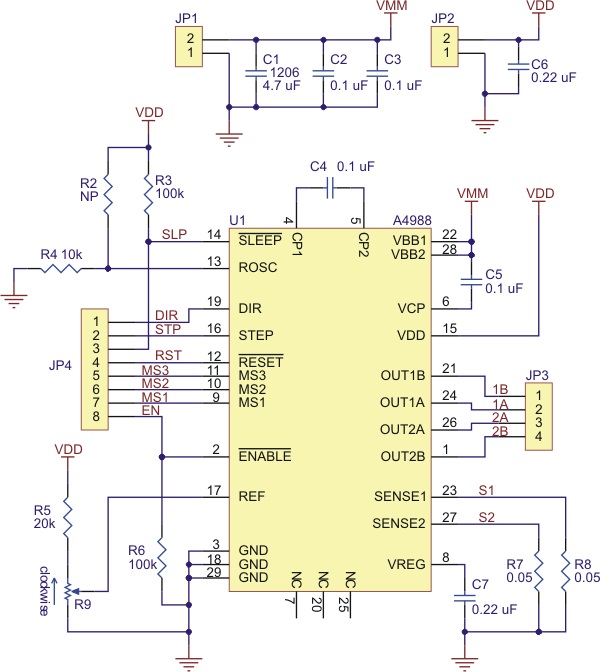

  • Schematic
