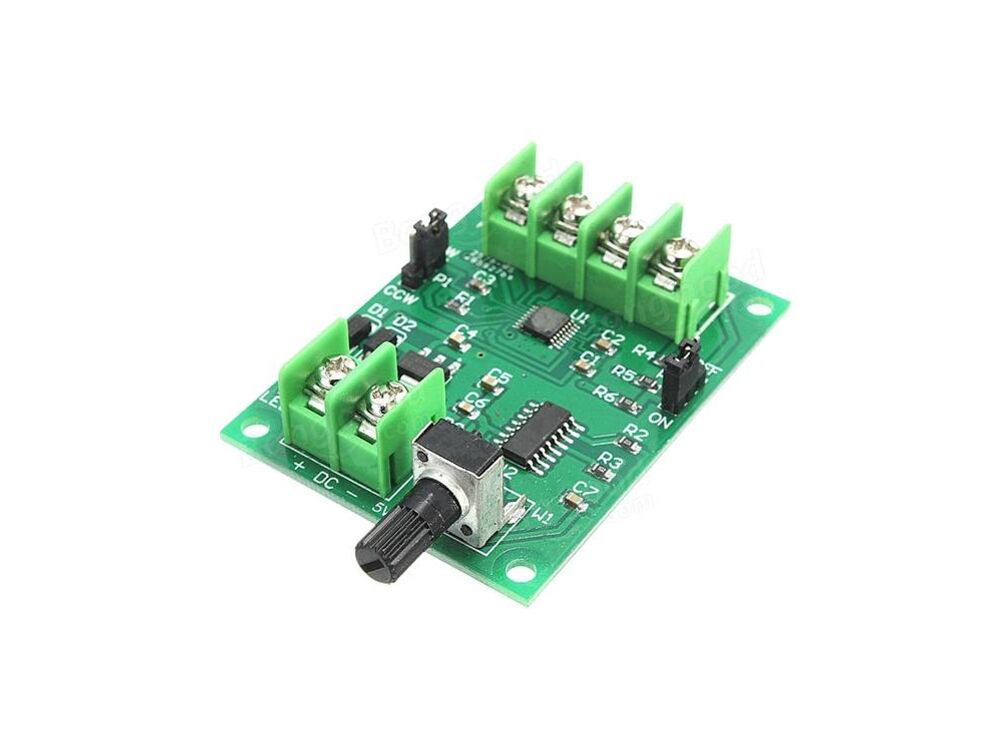

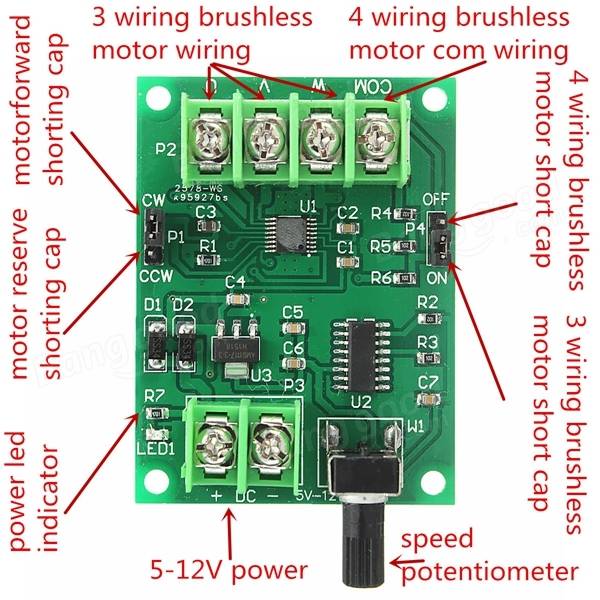

5V-12V DC Brushless Motor Driver 3/4 Wire

5V-12V DC Brushless Motor Driver 3/4 Wire

The driver board can drive hard disk brushless motors, CD-ROM brushless motors, and other micro brushless motors of line 3 or 4 wires without hall sensor. It has reverse voltage protection, over current protection to ensure user safety. The driver voltage 5-12V, the higher the voltage the faster the speed, the maximum speed up to 10,000rpm.


  • Drive voltage: DC 5-12V
  • Work current: ≤ 1.2A
  • Speed range: from 0% to 100%
  • Phase inversion Control: Yes
  • Voltage polarity protection: Yes
  • Overcurrent Protection: Yes
  • Package List:

  • 5V-12V DC Brushless Motor Driver 3/4 Wire
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 33451
    • Product Code: MAM512BMD
    • Availability: In Stock
    • $9.90
    • 6 or more $7.50
