H-Bridge Motor Shield

H-Bridge Motor Shield

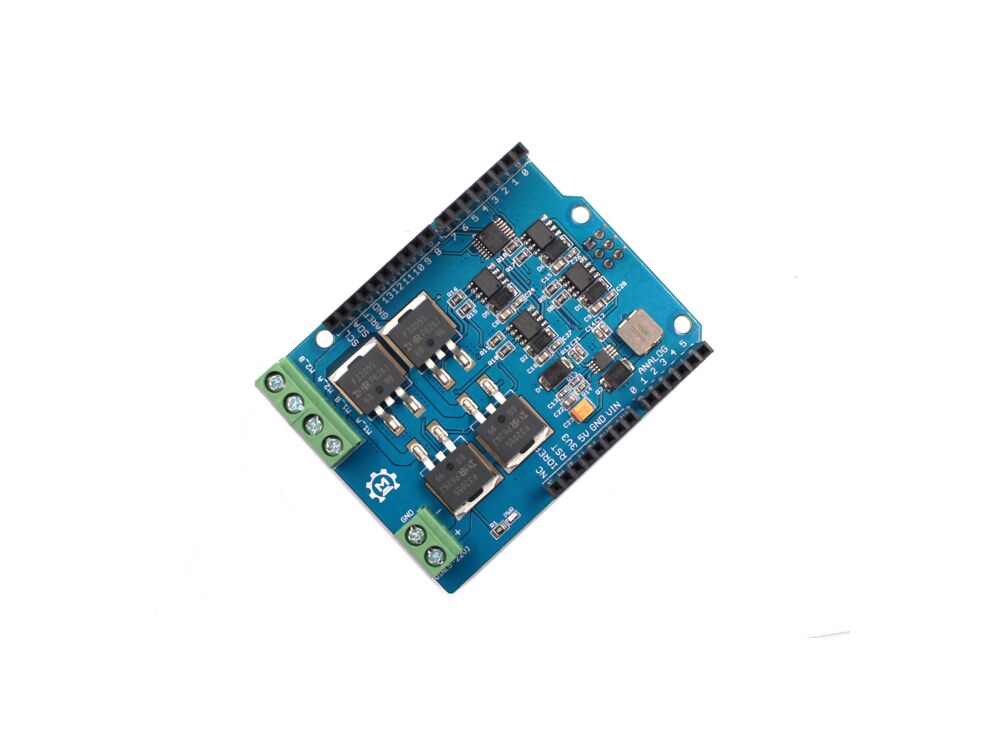

This H-Bridge Motor Shield based on 8 N-channel MOSFET IRF3205S and 4 pcs half-bridge motor controller IR2104, to build 2 H-bridge. With this shield, you can control two DC motors with a max current of up to 8A with 22v voltage at the same time. Also, you can control the motor direction by the logic 0 or 1 with digital pin and speed by the PWM PIN of your MCU, like Arduino. And we support Screw interface, it is easy to connect to the motor and power.

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. For more detail, you can read our PCB Design and PCBA Turnkey Solution.

Features:

  • Operating Voltage: 6- 22V
  • Continuous output current: up to 8 Amps
  • Peak output current: 15 Amps
  • PWM Duty: 0~99%
  • Dimension: 68mm x53mm x 23mm
  • Package List:

  • 1 x H-Bridge Motor Shield
  • Documents:

  • Wiki
  • Schematic
  • Demo code
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 44643
    • Brand: Makerfabs
    • Product Code: OAS0000HB
    • Availability: Out Of Stock
    • $18.50
