SIM28 GPS Shield

Click Image for Gallery

Description
Reviews (0)

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

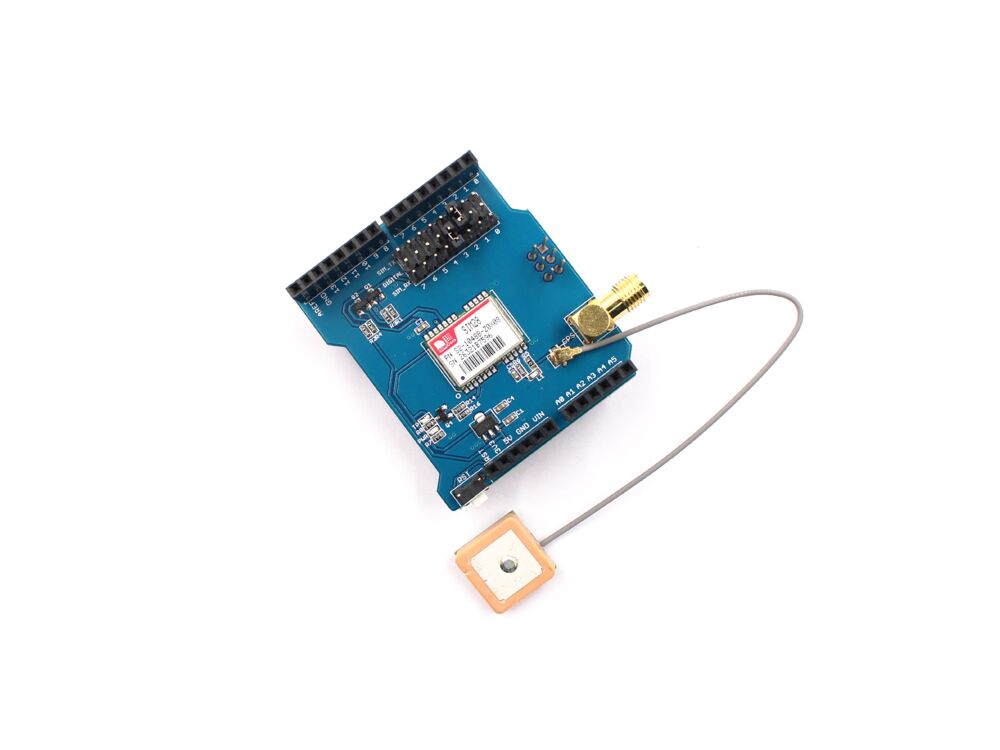

The GPS Shield based on the SIM28 GPS module. It is a cost-efficient and field-programmable gadget. It features 22 tracking / 66 acquisition channel GPS receiver. The sensitivity of tracking and acquisition both reach up to -160dBm, making it a great choice for personal navigation projects and location services, as well as an outstanding one among products of the same price class.

Features:

Dimensions: 53mm*47mm*23mm

Default baud rate: 9600

Supports NMEA and U-Blox 6 protocols

Package List:

1 x GPS Shield

1 x GPS antenna

Documents:

SIM28_Specification

SIM28_Hardware Design

Schematic

GPS Shield user's manual
