PCB Layout Design

Makerfabs PCB layout design service:

With more than 5 years of working experience on open hardware products include the Arduino/ Raspberry Pi/ mbed/ Beagle bone, etc, Makerfabs R&D team has created many projects that have been produced and popularly sold on the market. Makerfabs team is glad to share our engineer experience with customers, to boost hardware startups creating projects quickly.

Makerfabs can help your projects as follows:

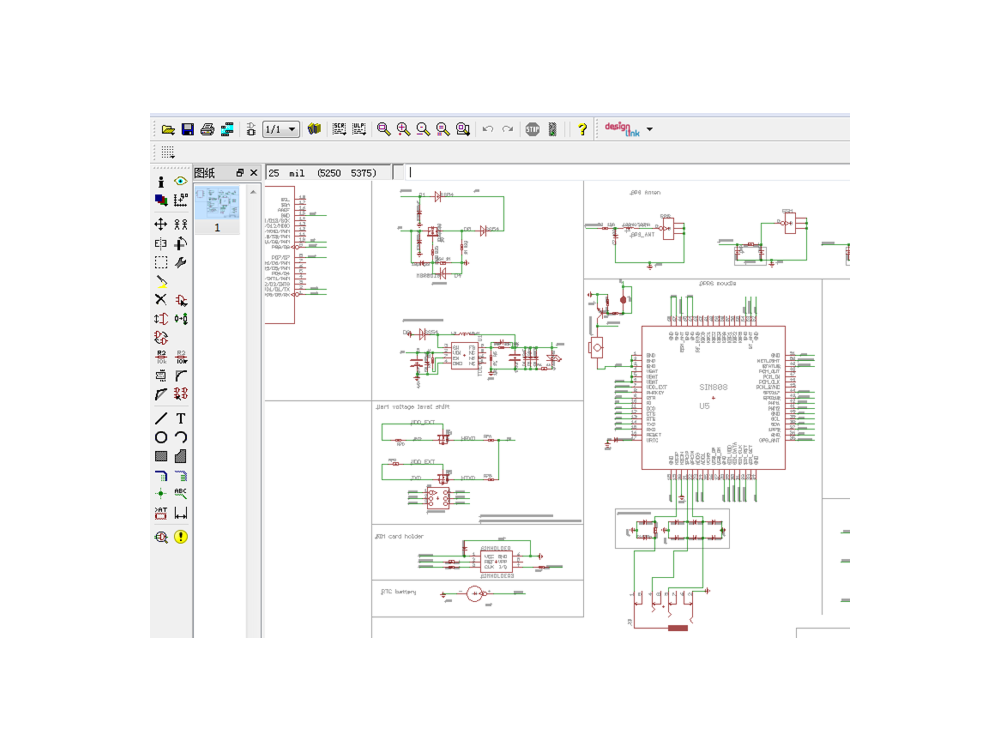

1. Schematic Designing.

Makerfabs can help with schematic designing as the customer provide detailed function requests, especially on IoT/ Smart Home/ Wireless transmission, etc.

2. Components Selecting.

Makerfabs has much experience in components sourcing and cost control, can help customers finding out the most appropriate components in the design, with the right spec and better price.

3. PCB Layout.

Makerfabs helps customers on the PCB layout for 1~6 layers PCB, currently supports Eagle/ Altium Designer/ PADS.

4. PCBA DFM.

Makerfabs give suggestions or help modify customer's projects, to ensure the PCB design manufacture friendly and thus to reduce the production cost.

Send your request and related files to sales@makerfabs.com, our engineer will then check your request and estimated the difficulty, this service will be quoted by your project manager and depends on our estimation of the work Difficulty & Lead time.

For PCBA customers, Makerfabs would be glad to supply free service, to help customers avoiding mistakes and create better cooperation in further business.
