1. What is the
mean by “Premium”?
The PCB Service can meet
>95% customer’s requirements, but for some guys, especially makers who have experience in hardware
and projects that need many special requirements, they need more reliable& advanced PCB services, such as
multiple layers more than 4, blind holes, FPC. That’s why we Makerfabs provide this “Premium PCB
2. What’s the
main upgrading compared to the common PCB services?
This “Premium PCB”
service is based on “One-by-One Quotation”, so we would be able to meet your personal requirements. Compared to
the common PCB service, the main upgrading is:

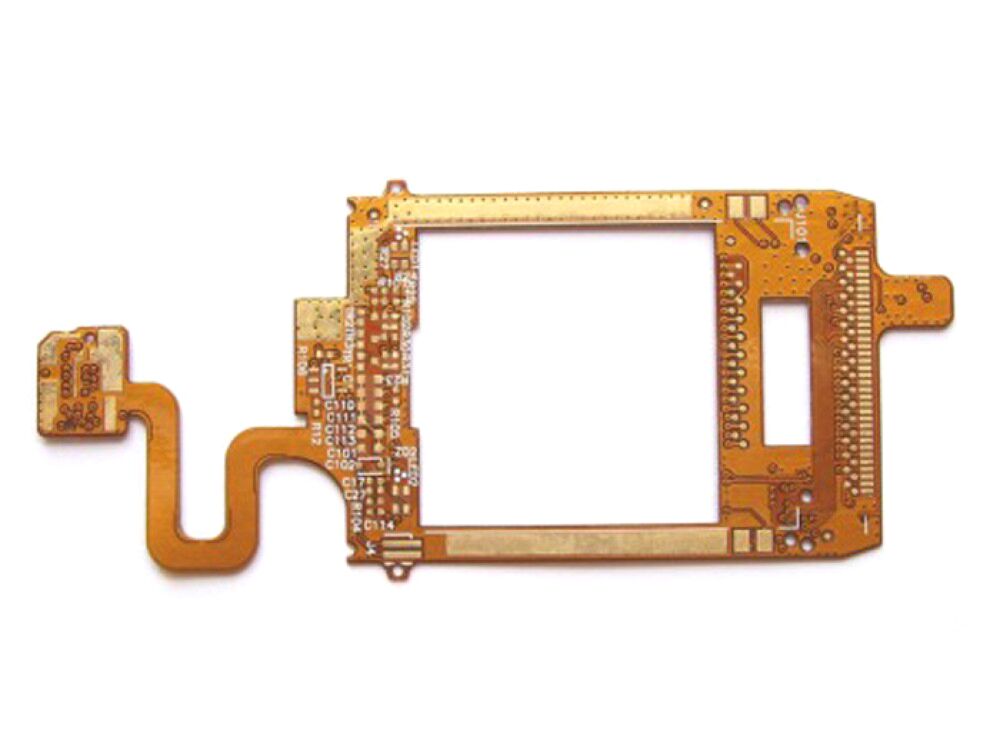

Support More Kinds Of
PCB: FPC/ Rigid-flex PCBs are available now at Makerfabs;
More Professional PCB
Specifications: PCB Multilayers 1~28; Blind holes; Copper thickness up to 3oz; Thinner/Thicker PCB thickness
More Reliable Quality:
Sharper silkscreen; 100% E-test + 100% visual check; More color for PCB(Include Matte Black, Matte green and
purple); Minimum PCB track /Space up to 3 mils;

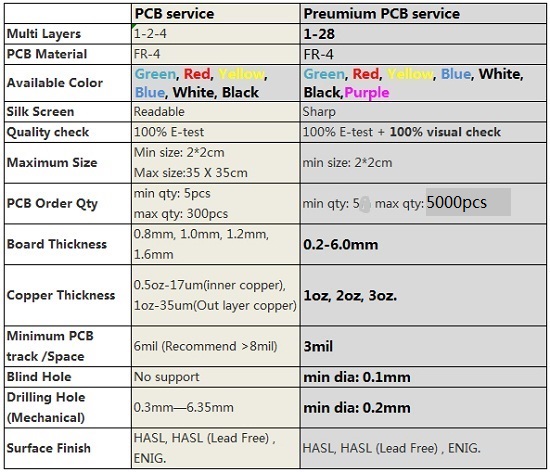

For FR-4 PCB, please
refer to the detail spec& comparison with
common PCB service:

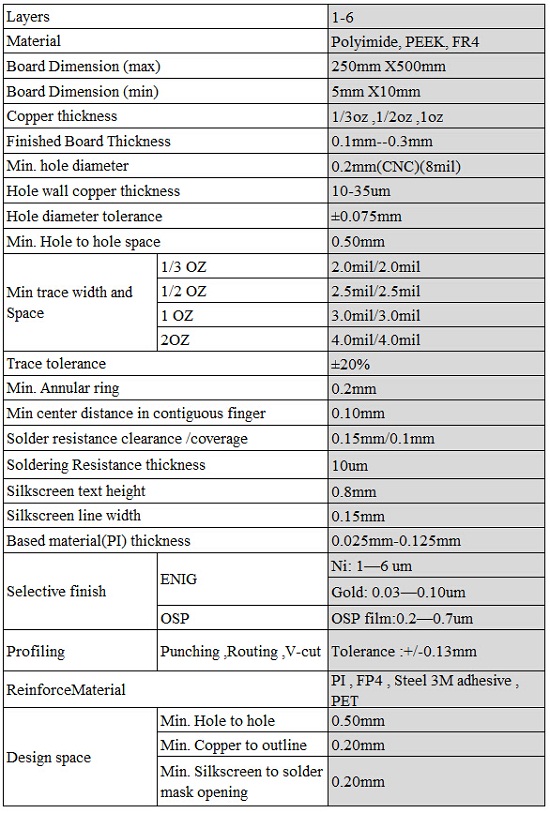

For FPC& Rigid-Flex
please refer to the below detailed specification:
3. How to begin
my “Premium PCB” Service?
1. Download the Premium PCB Specifications and
input your PCB demands, if you do not know how to selector for some of the parameters,
just leave it as it is.
2. Sent this file and your Gerber files to email@example.com. For the Gerber files, please refer to
3. We Makerfabs will quote it for you in 1~3 working days. If you think it OK, after your paying, we will make your PCB into production. The fabrication time will be 3~12 days (excluding the Chinese festival).
4.Note that the 300$ free shipping policy does not apply to the Premium PCB service.
4. Check this
video to know how is the FPC Assembly Process in Factory
