Relay Shield

Relay Shield

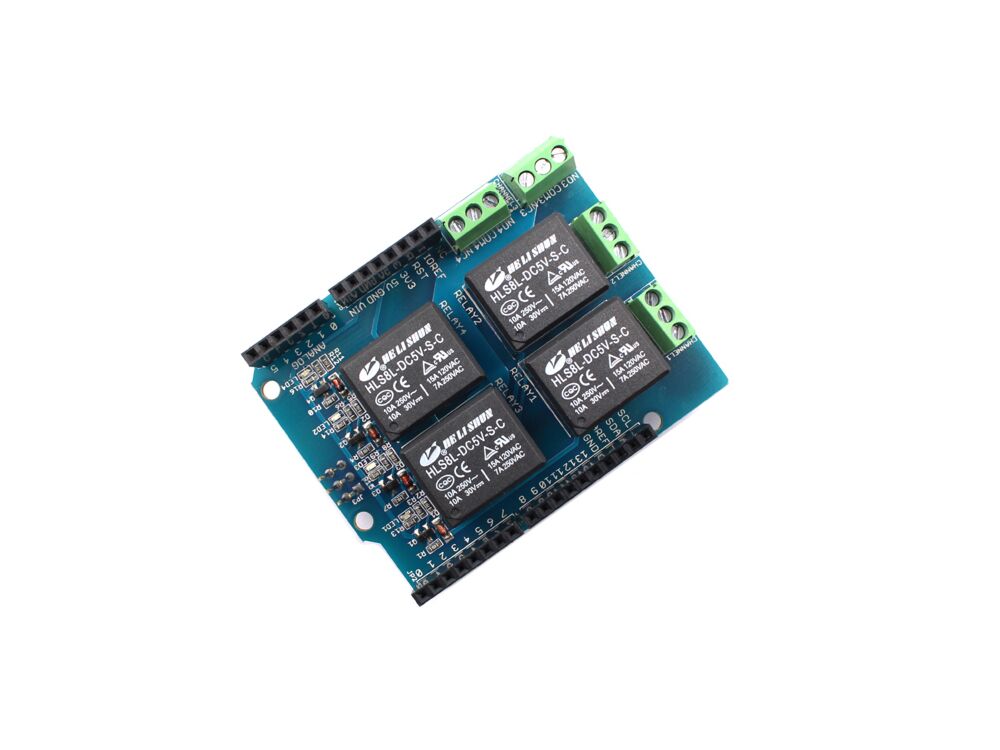

The Relay Shield based on four high-quality relays that can control up to 30VDC or 250VAC loads to Maduino or Arduino boards. It provides NO (Normally Open) / NC (Normally Closed) interface. It could be a nice solution for controlling devices that could not be directly controlled by Arduino's Digital I/O ports.

Note: Exercise caution when dealing with AC. Get help from a certified electrician.

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

Features:

  • Arduino/Maduino Shield compatible
  • Relay screw terminals
  • Working status indicators for each relay
  • Operating voltage: 4.75V~5.25V
  • Operating current: 8~250 mA
  • Switching Voltage: 250VAC/30VDC
  • Switching Current: 15A/7A
  • Frequency: 1Hz
  • Switching Power: 70W
  • Relay Life: 100,000 Cycle
  • ESD contact discharge: ±4KV
  • Dimension: 68mm x53mm x 27mm
  • Package List:

  • 1 x Relay Shield
  • Documents:

  • Schematic
