Maduino UNO

Maduino UNO

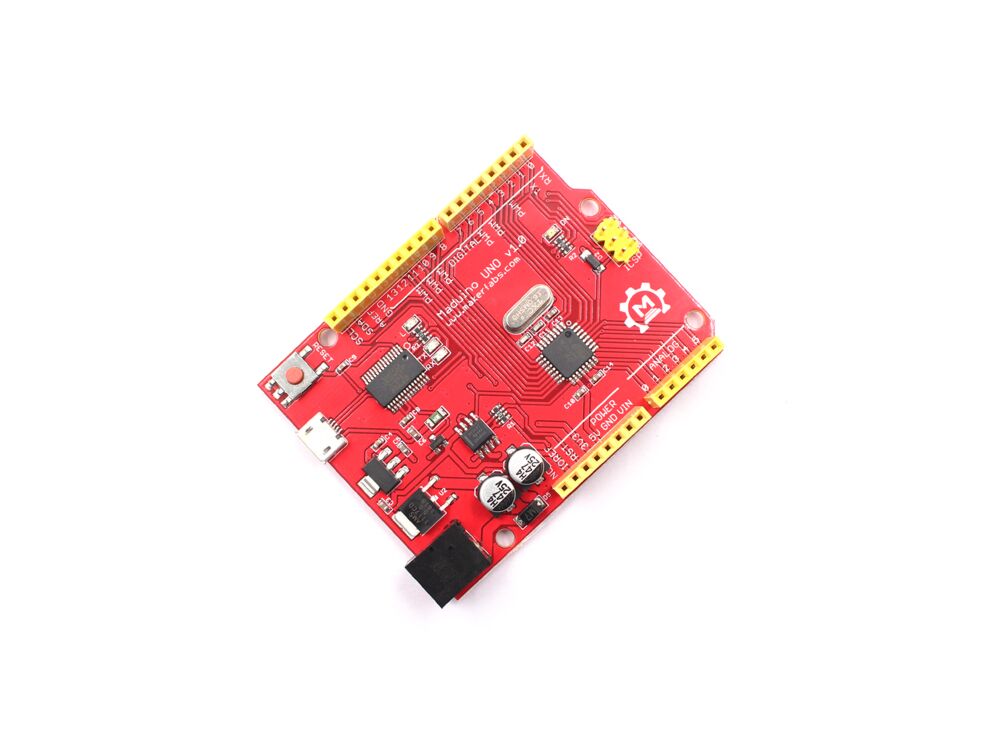

Maduino UNO is an Arduino compatible board, which is based on ATmega328P MCU and Arduino UNO bootloader. It used an FT232 as a UART- to- USB converter. You can program the board via a micro- USB cable. Also, you can power the board via a DC Jack input, 7 to 15V is acceptable.

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

Features:

  • ATmega328 Microcontrolle
  • Arduino UNO bootloader
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • ISP Header
  • Arduino UNO-R3 Shield Compatible
  • Micro USB programming and power supply
  • DC Current per I/O Pin: 40 mA
  • DC Jack Input: 7v-15v
  • Flash Memory: 32 KB
  • RAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • Dimension: 68mm x53mm x 11mm
  • Package List:

  • 1 x Maduino UNO
  • 1 x Micro USB Cable
  • Documents:

  • Schematic
  • Wiki
