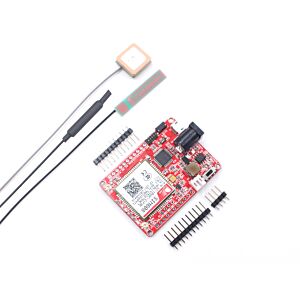

Maduino Zero SIM808 GPS Tracker V3.5

Maduino Zero SIM808 GPS Tracker V3.5

Maduino Zero 3G SIM5320

Maduino Zero 3G SIM5320

Maduino Zero Ethernet

Availability: In stock

Based on those Maduino IoT solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

Wireless is wonderful, although the WiFi/LoRa solutions get cheaper these days, but sometimes you want the strong reliability of wire, that is why this Maduino zero Ethernet.

Ethernet is a tried-and-true networking standard. It's supported by every hub and switch, and because there's a physical connection you don't have to noodle around with SSIDs, passwords, authentication schemes, or antennas.

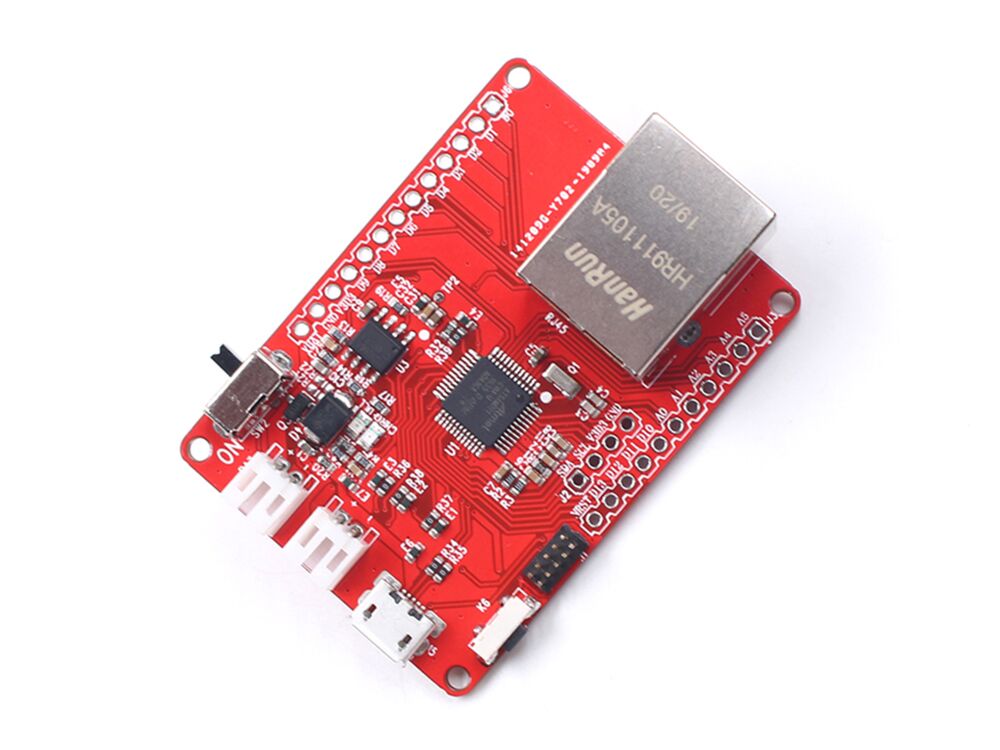

This Maduino Zero Ethernet lets you add quick and easy wired Internet. Just plug in a standard Ethernet cable, the WIZ5500 chip communicates over SPI plus a single CS pin to the Maduino zero controller ATSAMD21G18. As a nice extra, the RJ-45 jack has both link and activity lights that will light/blink to let you know the current connection status.


  • Arduino compatible
  • ATSAMD21G18, 32-Bit ARM Cortex M0+
  • Size: 40*55mm
  • Support Micro SD Card
  • 18* GPIO
  • Package List:

  • 1 x Maduino Zero Ethernet
  • Documents:

  • Schematic
  • Wiki
