Maduino GPRS A6

Maduino GPRS A6

Based on those Maduino solutions, Makerfabs can also help to customize those boards with customer’s special requests. Contact sales@makerfabs.com for detailed info and further discussion. More detail you can read our PCB Design and PCBA Turnkey Solution.

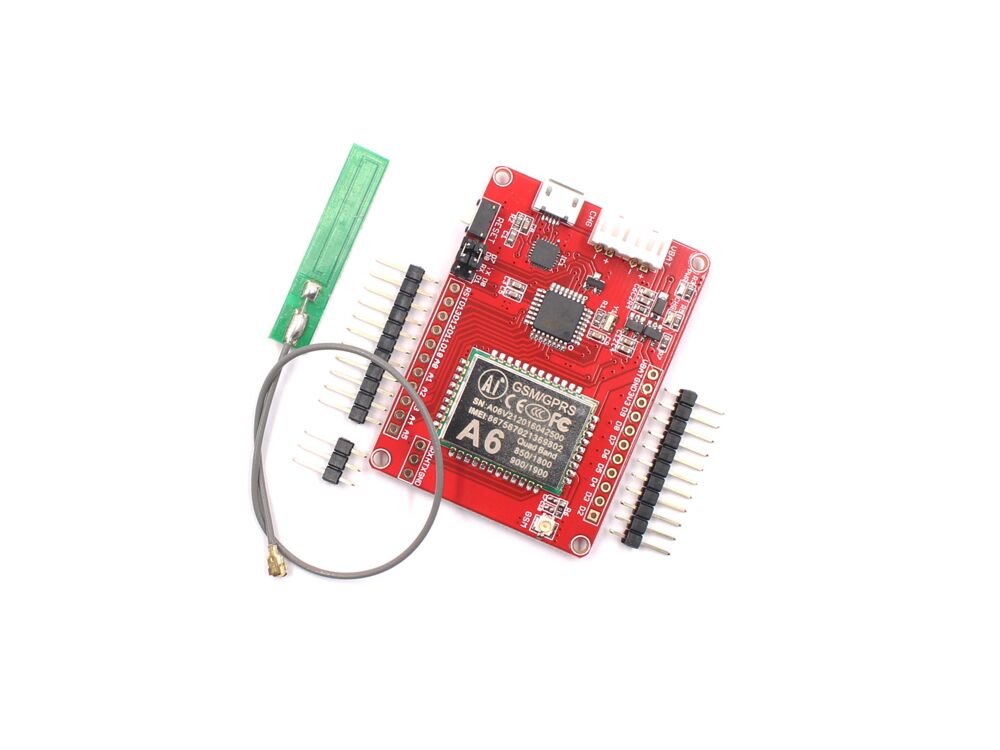

Maduino GPRS A6 is a one-stop solution for IoT (Internet of Things) projects, it integrates a micro Controller Atmega 328, GRRS/GSM module A6, on-board power management and storage, to make the Maduino GPRS A6 ready for a real project for IoT projects such as smart-home, outdoor monitoring, shared bicycle, etc. The GRPS/GSM module A6 supports quad-band 850/900/1800/1900MHz, which covers any GSM network, after inserting a SIM card, then you will be able to use the SMS/GPRS service of Cellular connectivity.

The Maduino GPRS A6 is based on Arduino, users can program it with Arduino IDE, which is very easy and especially suited for non-programmers. There are also detailed guides for users to learn how to create the first IoT project with the Maduino GPRS A6 board, with which the starters can learn the hardware and programming skills quickly.


  • Powered by lithium battery 3.4-4.2V or USB
  • ATmega328: 8MHz, 32KB flash, 2KB SRAM
  • Integrated Power Control System
  • Quad-band: 850/900/1800/1900Mz
  • Interface: I2C/SPI/UART/18*GPIO
  • Arduino Compatible
  • Working Temperature: -20 - 85℃
  • Default baud rate: 115200
  • Size: 40mm*55mm
  • Package List:

  • 1 x Maduino GPRS A6
  • 1 x GPRS GSM Antenna
  • Documents:

  • Schematic
  • User Manual
  • Arduino Demo Code
  • Wiki
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 12488
    • Product Code: OAC000MA6
    • Availability: In Stock
    • $16.20
