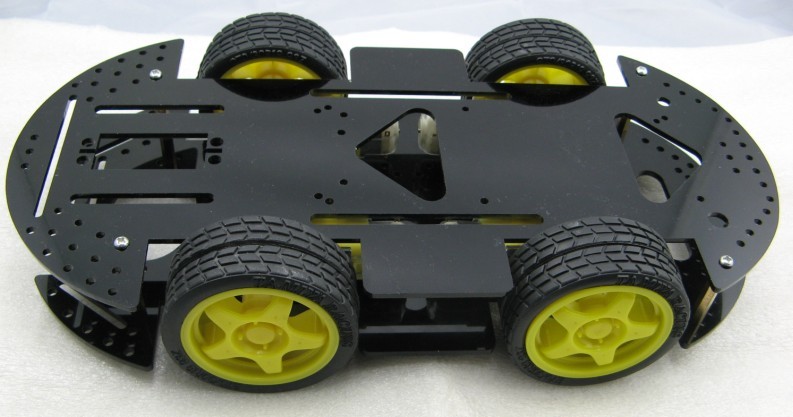

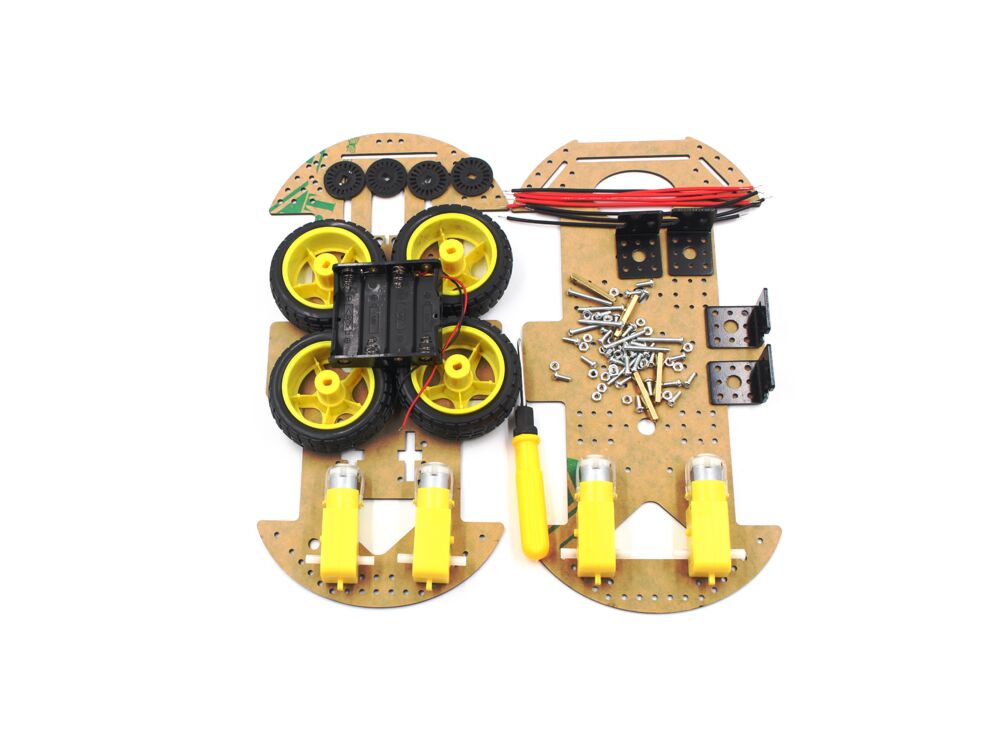

4WD Utility Mobile Platform Kit includes 4 drive motors, 4 wheels, and a complete chassis with mounting hardware. The included second level allows you to add even more electronics and even has a space for a standard servo motor. The 4WD Mobile Platform is also suitable for robot competitions and research-related projects.
(Note: When you received the product, there is a layer of yellow protective paper on the surface of the chassis, which protects the chassis from being scratched during transportation, and it can be torn off to show the color of the product introduction).
Car motor installation reference example (we use a certain chassis as a demonstration, the actual installation is exactly the same)

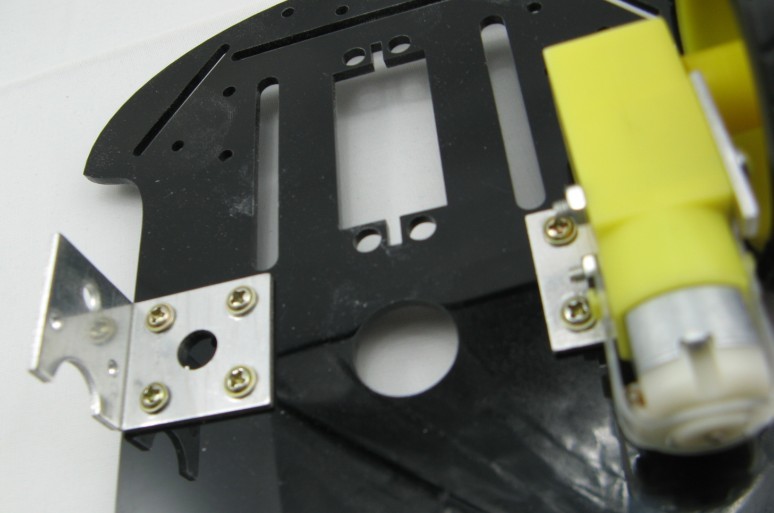

Fixed installation of the motor side of the car Step 1: Install the "L" metal bracket on the chassis:

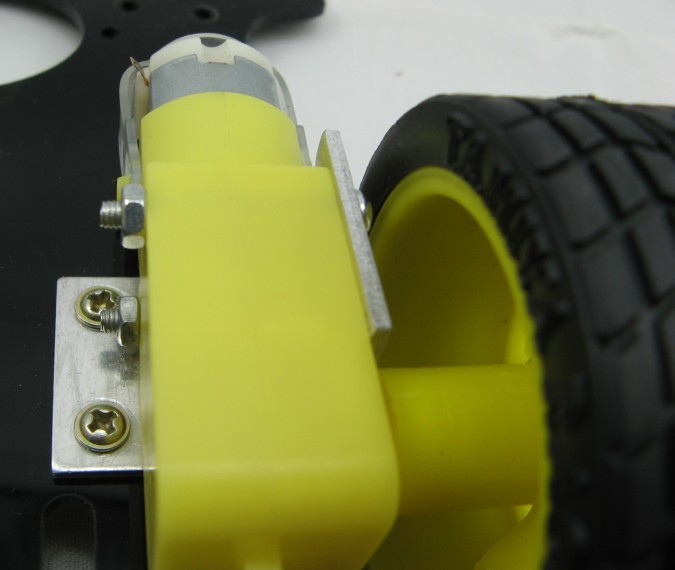

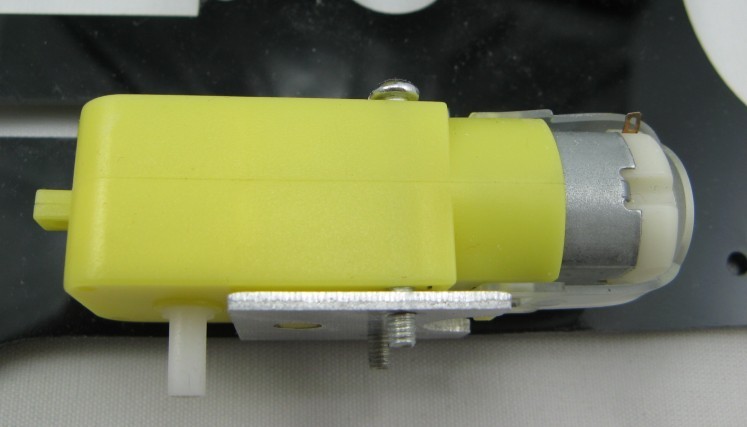

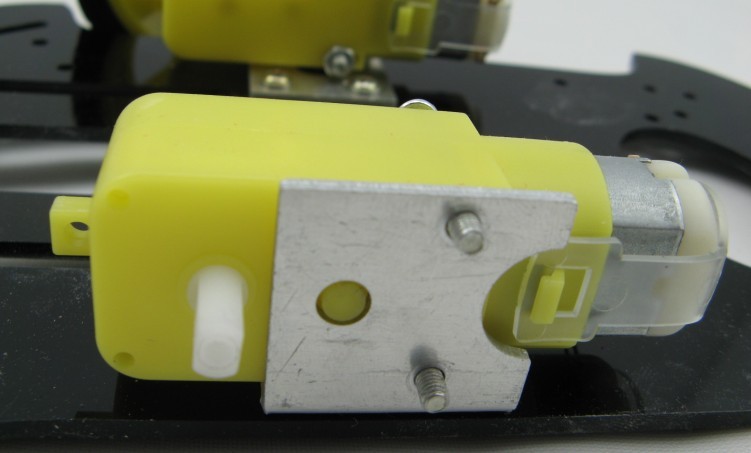

Fixed installation of the motor side of the car Step 2: Motor mounted on a bracket:

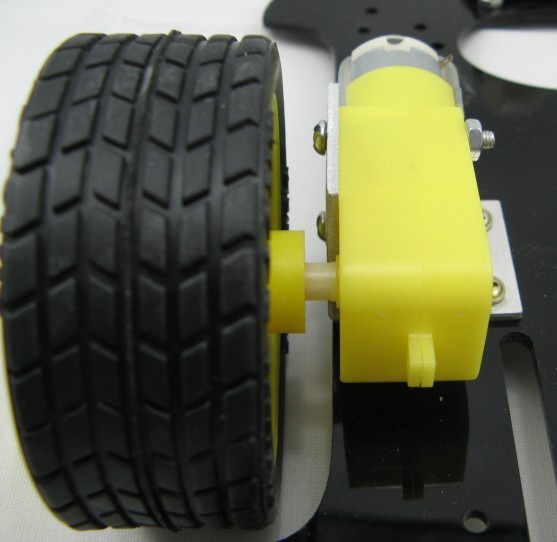

Fixed installation of the motor side of the car Step 3: Snap the wheel to the motor:
The motor side of the trolley has been installed, is it very simple?

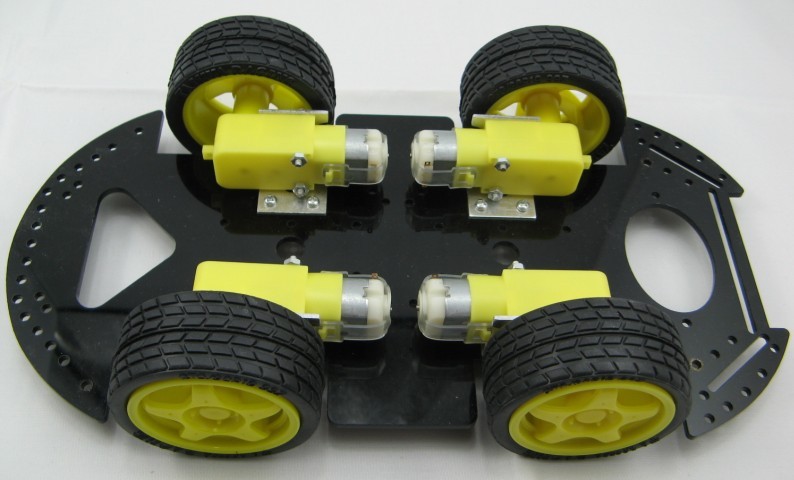

When all four motors are installed, it is necessary to install a second-tier chassis. It is important that the second-tier chassis can install many expansion circuits and modules.

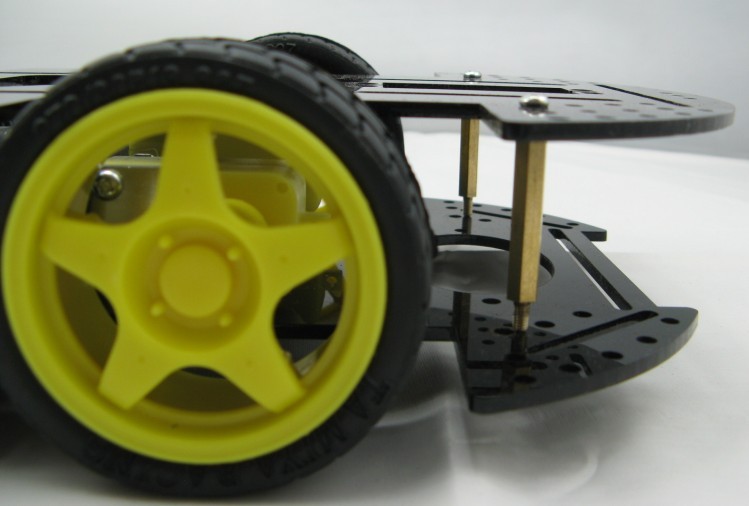

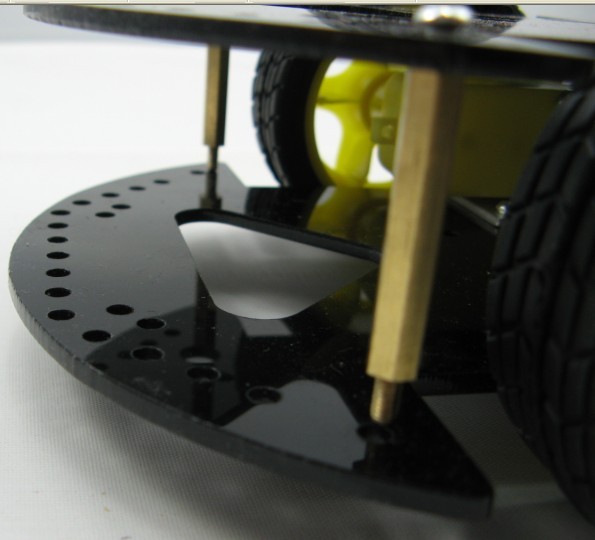

Install long copper pillars:

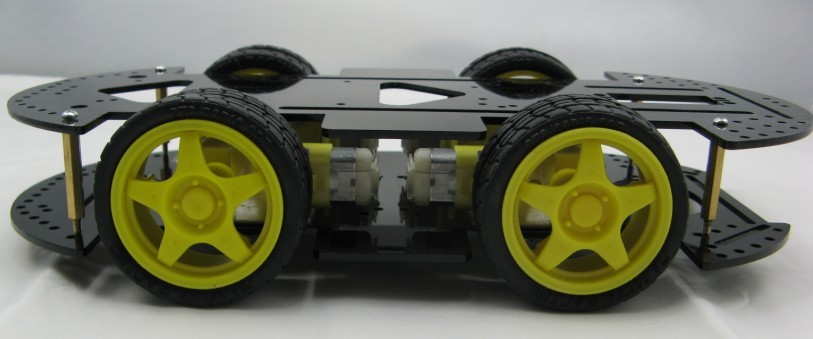

Four copper pillars are installed:

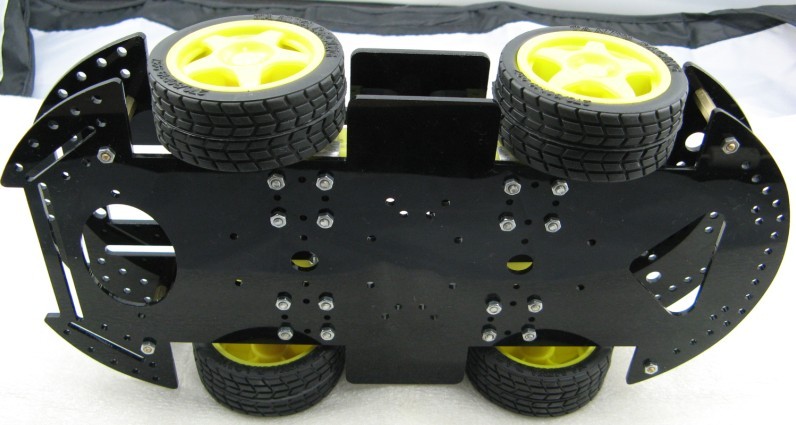

Squeezed and screwed in, the four-drive car is installed.
