AgroSense_2 Channel Non-invasive AC Current Monitor LoRaWAN® Class C

$29.80
LoRaWAN 2-Channel non-invasive AC current monitor for real-time, safe, and remote current tracking; includes extra ADC for expansion.
Availability: In stock
SKU
AGLWCT

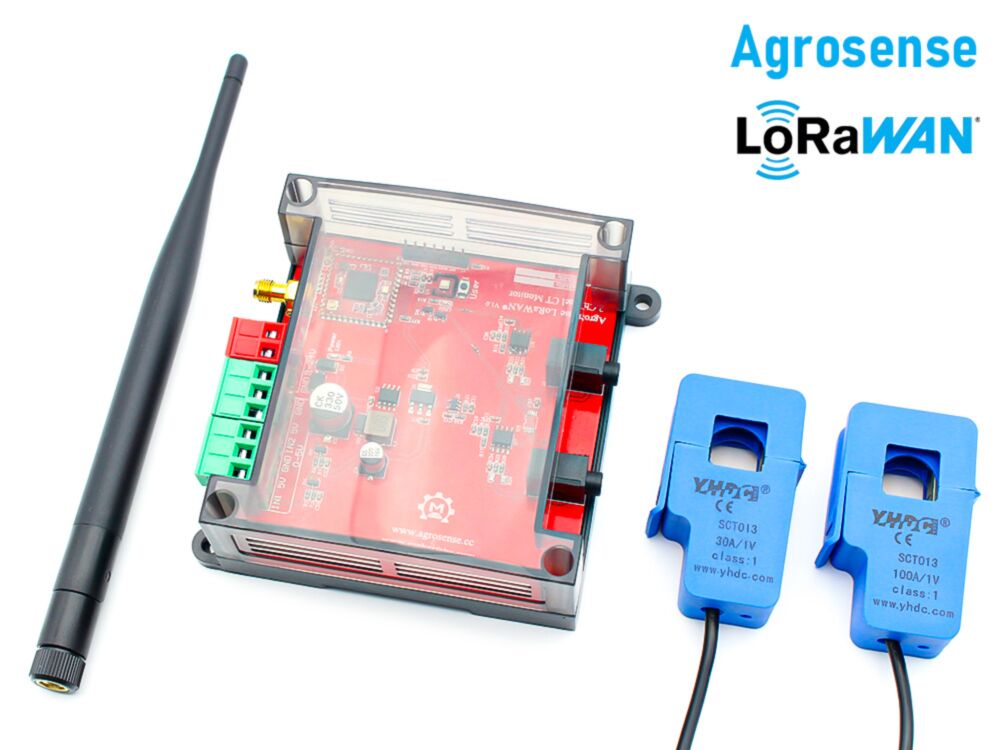

This AgroSense 2-Channel Non-invasive AC current monitor is designed for LoRaWAN remote monitoring of AC current. It is equipped with 2 Non-invasive AC transformer, max 10A/100A, to monitor the AC current and report to LoRaWAN server, via LoRaWAN gateway, by every 1 minutes by default. With this product, users can continuously monitor any AC module current status with simple plug& play, for better industry field management.

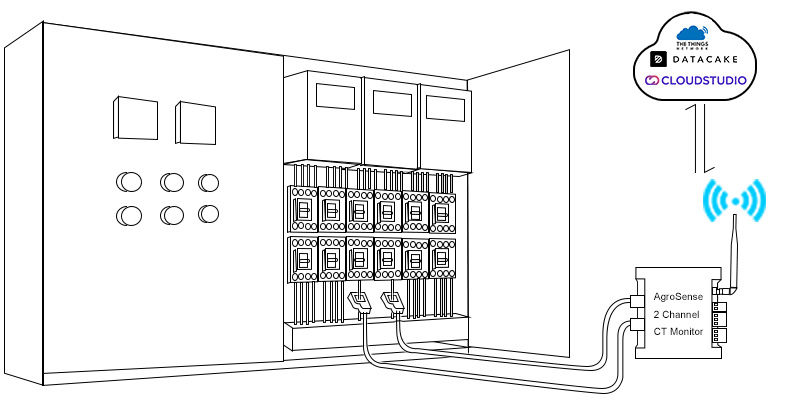

With Non-invasive AC transformer, users do not need to do any modification/setting on the AC circuit, just clamping the live-wire, suitable for scenarios requiring non-contact current sensing, ensuring safe measurement without physical circuit interruption. Besides, there also 2 channel ADC left, for advanced users’ free expandable usages.



This product is suitable for industry usage such as counting the energy consumption, OVER-load or No-load detection, run hour counting…  Machine Health Monitoring, Safety Monitoring, Energy Monitoring, Production Monitoring

Besides, there also on-board air temperature/humidity sensor, to help users monitoring field status, for fire/flood warnings.

This product is based on LoRaWAN® V1.0.3 OTAA Class C , different with Class A, the Class C standard keep stable connection from nodes to gateway, suitable for applications that need long-term /stable connection and more frequent data uplink/ relative quick feedback, with disadvantage of higher power consumption. This product supports common 2 data modes:

  • Data Uplink: It uplink the current monitoring data / temp& humidity sensor data to gateway with dedicated time interval.
  • Data Downlink: Users can send downlink commands from cloud server, to set the date update interval (default 60 s and can be set to 24h max with data downlink), and perform scheduled tasks—making it highly adaptable to various automation needs.

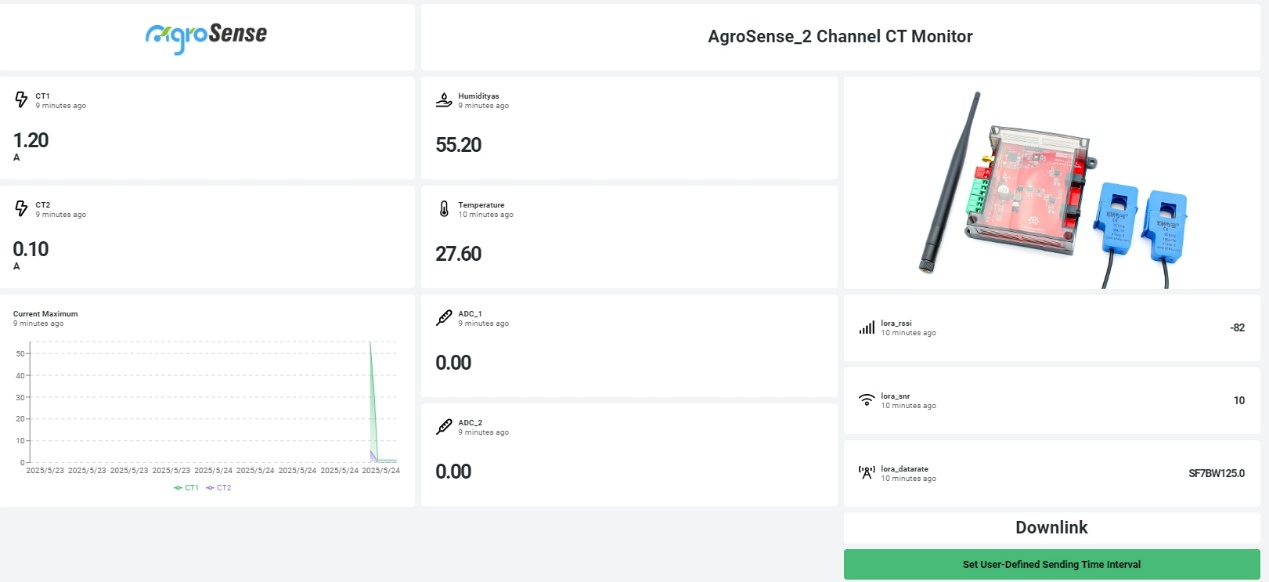

This Module supports global frequency bands (EU868/US915) and works seamlessly with platforms such as TTN, Datacake, and CloudStutio to enable data upload and remote control.

Besides, it has Local storage for max 3,300+ records, ensures critical data is retained during connectivity gaps.



Features

  • Includes 2-channel AC Monitor, Max 10A/100A;
  • Includes 2-channel 0-5V analog signal inputs.
  • Integrates a high-accuracy temperature and humidity sensor AHT20.
  • LoRaWAN version: LoRaWAN Specification 1.0.3. OTAA Class C.
  • Monitor data and upload real-time data regularly.
  • Modify the product parameters through AT commands.
  • Support downlink to modify the time interval and control relay switch.
  • Integrated data logging capability with a storage capacity of up to 3300 records.
  • Compatible with Worldwide LoRaWAN® Networks: Support the universal frequency bands EU868/ US915.
  • Long Range: Up to 2 kilometers in the city, up to 10 kilometers in the wilderness, receive sensitivity -137dBm , transmit power up to 22dBm.
  • Data encryption: Provide end-to-end secure communication, including device authentication and network data encryption, to ensure the security of data transmission and prevent data theft and malicious attacks.
  • High stability and reliability: good stability in noisy environments, able to penetrate buildings and obstacles, so it can maintain good communication quality in urban and suburban environments. Local storage for max 3,300+ records.

Parameter

1.General Parameters

 Product Model  AGLWCT
 Temperature Measurement Range  -40°C ~80°C
 Temperature Measurement Accuracy  ±0.5°C
 Temperature Resolution  0.1°C
 Humility Measurement Range  0%-100% RH
 Humility Measurement Accuracy  ±2%
 Humility Resolution  0.024% RH
 ADC Measurement Range  12-bit ADC
 ADC Measurement Accuracy  1/4096
 ADC channel count  2
 Spec  100A/1V
 channel count  2



2.Wireless Parameters

 Communication Protocol  Standard LoRaWAN® protocol V1.0.3
 Network Access/Operating Mode  OTAA Class C
 MAX Transmit Power  22dBm
 Receiver Sensitivity  -137dBm/125kHz SF=12
 Frequency Band  EU868/US915



3.Physical Parameters

 Power Supply  DC 12-24V
 Operating Temperature  -40°C ~85°C
 Dimensions  95 × 90 × 40 mm
 Mounting  Wall Mounting



AgroSense is a series of Makerfabs wireless LoRaWAN® sensors.



It can cover a transmission range of 2km in urban scenes and 5km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 1 years of usage and an industrial IP68 enclosure. It supports at least -40℃ ~ 85℃ operating temperature and can be deployed in harsh environments. AgroSense is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.



With LoRaWAN® gateway, LoRaWAN® sensor report the result to LoRaWAN® networks, such as The Things Network and DataCake, with simply inputting DEV EUI/ APP EUI/ APP Key:

  • DEV EUI: Unique identification of device,authorized by IEEE;
  • APP EUI: Unique identification of application;
  • APP Key: One of the join network parameters on OTAA mode, calculated by DEVEUI;

Part List

  • AgroSense 2-Channel AC current monitor *1;
  • Non-invasive AC Current Transformer 10A-1V *1;
  • Non-invasive AC Current Transformer 100A-1V*1

Usage

For country/ area frequency selecting,please check here: regional Parameter
