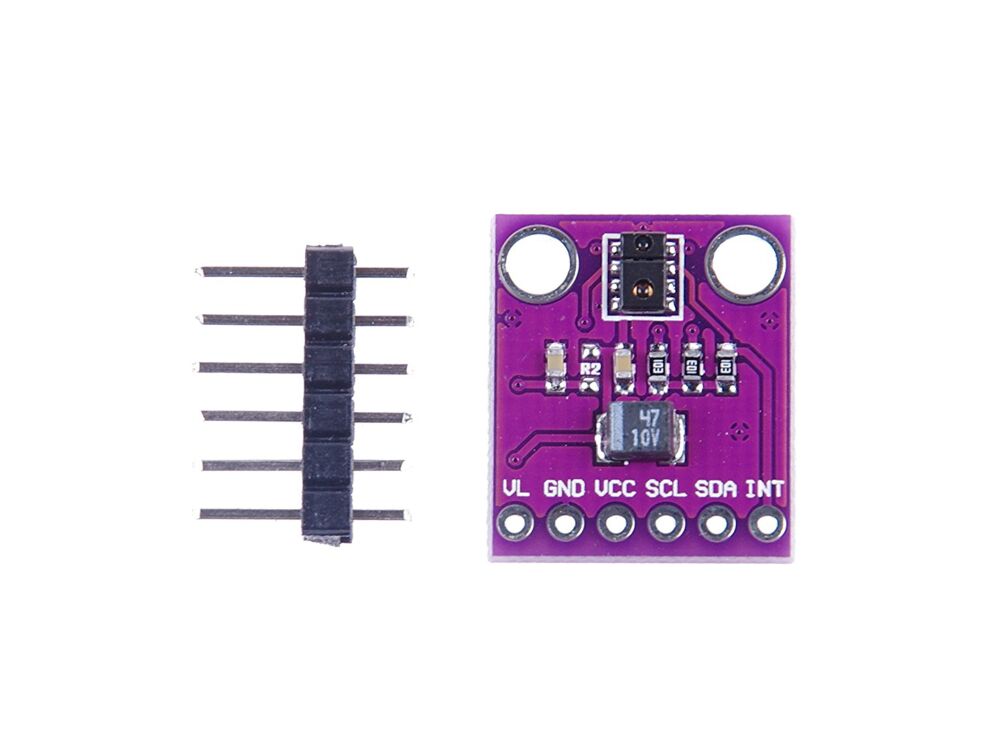

APDS-9930 RGB Infrared Gesture Sensor

APDS-9930 RGB Infrared Gesture Sensor

The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and plays detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly. The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone. In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. The ALS provides a photopic response to light intensity in very low light conditions or behind a dark faceplate.


  • Working voltage: 2.8-3.8V;
  • ALS, IR LED and Proximity Detector in an Optical Module;
  • Ambient Light Sensing (ALS);
  • Approximates Human Eye Response;
  • Programmable Interrupt Function with Upper and Lower Threshold;
  • Up to 16-Bit Resolution;
  • High Sensitivity Operates Behind Darkened Glass;
  • Low Lux Performance at 0.01 lux;
  • Proximity Detection;
  • Fully Calibrated to 100 mm Detection;
  • Integrated IR LED and Synchronous LED Driver;
  • Programmable Wait Timer;
  • Programmable from 2.7 ms to > 8 sec;
  • I2C Interface Compatible;
  • Up to 400 kHz (I2C Fast-mode);
  • Dedicated Interrupt Pin;
  • Sleep Mode Power - 2.2 uA Typical
  • Package List:

  • 1 x APDS-9930 RGB Infrared Gesture Sensor
  • Documents:

  • Datasheet
  • Arduino library
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 12114
    • Product Code: MSM9930GR
    • Availability: In Stock
    • $1.00
    This product has a minimum quantity of 6
