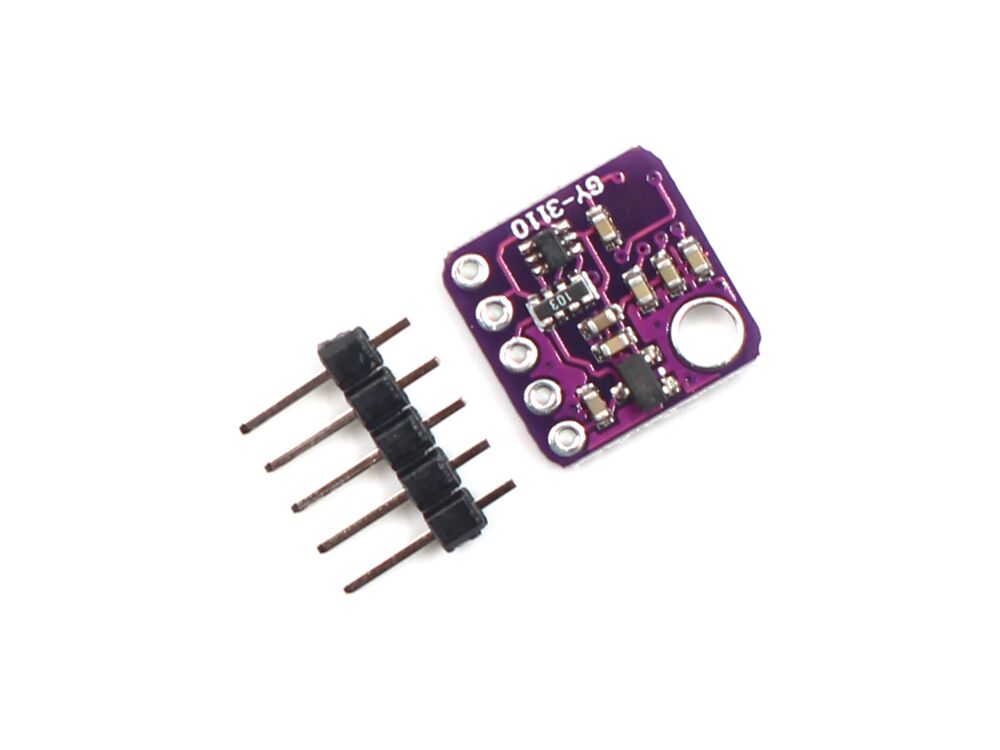

3-Axis Magnetometer MAG3110

3-Axis Magnetometer MAG3110

Freescale’s MAG3110 is a small, low-power, digital 3-axis magnetometer. The device can be used in conjunction with a 3-axis accelerometer to produce orientation independent accurate compass heading information. It features a standard I2C serial interface output and smart embedded functions. This board breaks out all of the pins for the MAG3110 to a standard 0.1" header and also supplies the necessary filtering capacitors so that you can easily use them in your next navigation project.

Note: You will need to use a logic level converter if you are using an Arduino Uno or a similar 5V logic device. Even if 3.3V is to be supplied to the VDD, an Uno putting out 5V logic can still fry this breakout.

Features:

  • 1.95V to 5V Supply Voltage
  • 7-bit I2C address = 0x0E
  • Full-Scale Range ±1000 μT
  • Sensitivity of 0.10 μT
  • Pull Up Resistor Jumper
  • Package List:

  • 1 x 3-Axis Magnetometer MAG3110
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 5963
    • Product Code: MSM3110MA
    • Availability: Out Of Stock
    • $2.50
