ACS758LCB 50A Current Sensor

ACS758LCB 50A Current Sensor

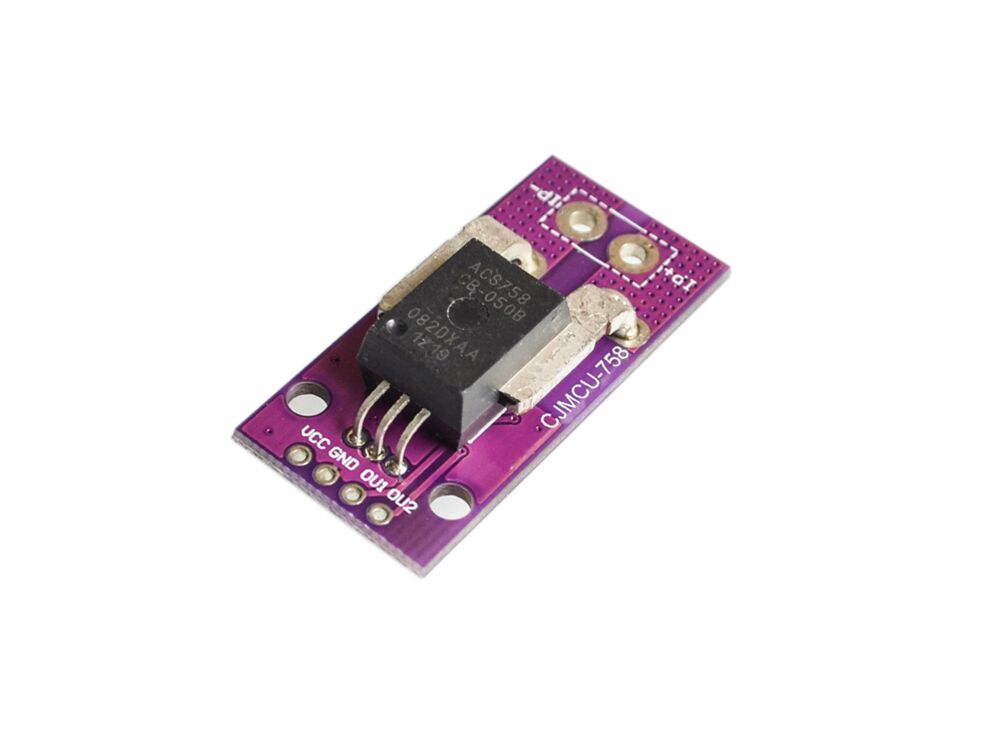

This is a Linear Current Sensor module based on the ACS78LCB.
ACS758LCB-50A-Current-Sensor

Features:

  • Industry-leading noise performance through proprietary amplifier and filter design techniques
  • Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications
  • Total output error improvement through gain and offset trim over temperature
  • Small package size, with easy mounting capability
  • Monolithic Hall IC for high reliability
  • Ultra-low-power loss: 100 μΩ internal conductor resistance
  • Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
  • 3.0 to 5.5 V, single-supply operation
  • 120 kHz typical bandwidth
  • 3 us output rise time in response to step input current
  • Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage
  • Nearly zero magnetic hysteresis
  • Board Size: 38.22*18.03mm
  • Package List:

  • 1 x ACS758LCB 50A Current Sensor
  • Documents:

  • Datasheet
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 11167
    • Product Code: MSE758LCB
    • Availability: In Stock
    • $4.20
    This product has a minimum quantity of 6
