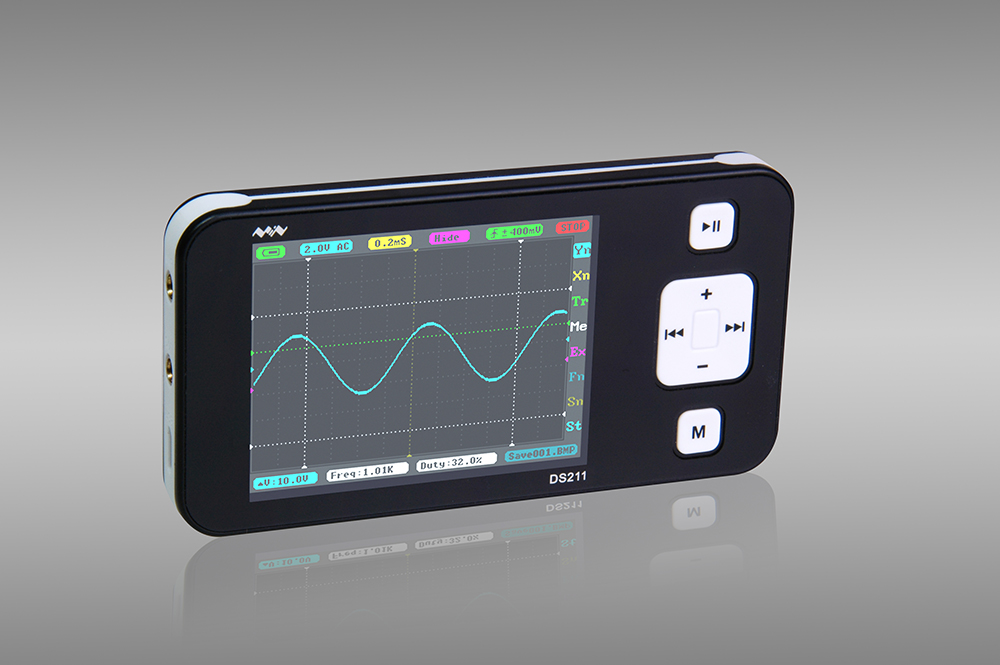

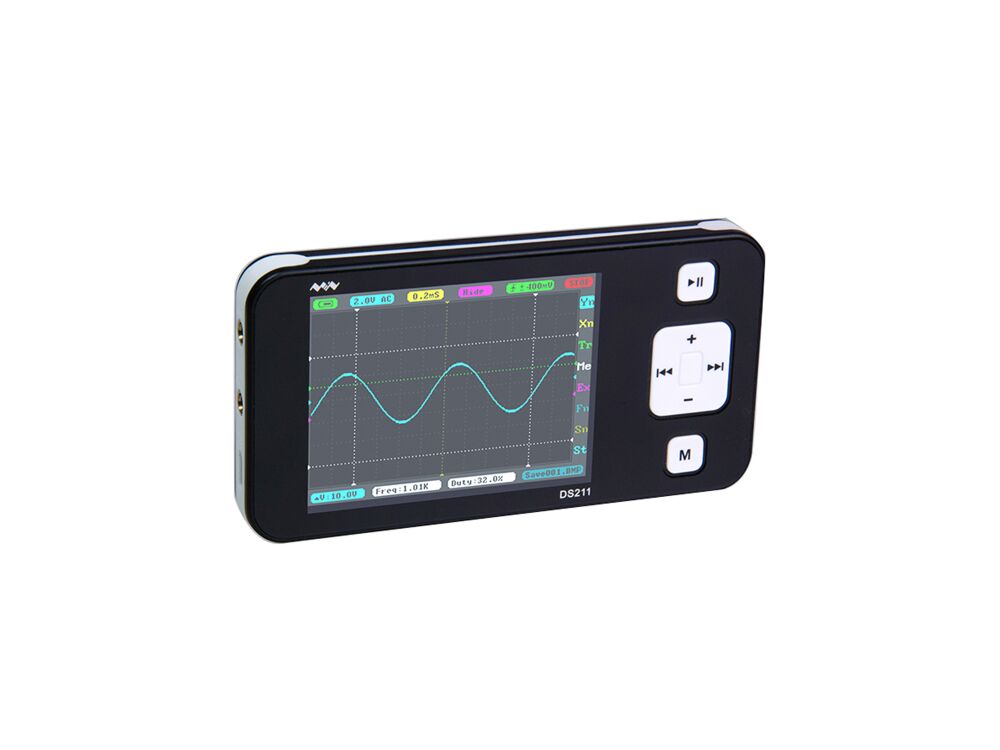

DSO DS211 1- Channel Open Hardware Mini Oscilloscope

Click Image for Gallery

Description
Reviews (0)

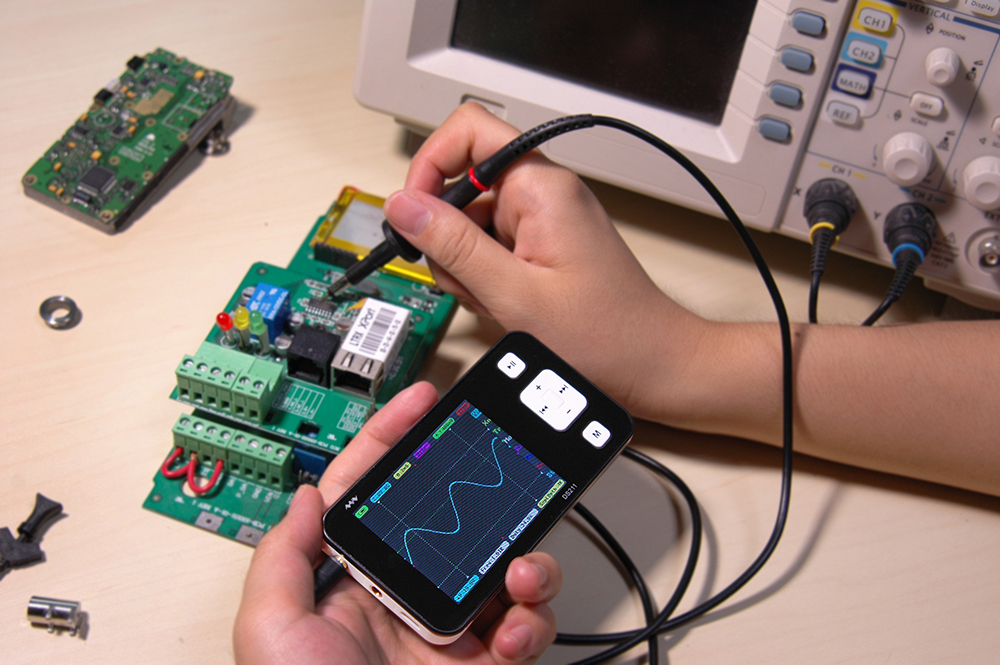

The DSO series oscilloscope is an Open Hardware pocket-size compatible 32bit digital storage oscilloscope, it based on ARM -M3, equipped with 320*240 color display, SD card, USB port, and recharging function. It’s compact, simple to operate; meets the basic demands of the school lab, electric furniture repairment, and electric engineering. As all the hardware/firmware are open for hackers, It can be also a good STM32 platform for hackers DIY Projects. DSO-DS211-Mini-Oscilloscope
DSO-DS211-Mini-Oscilloscope-1

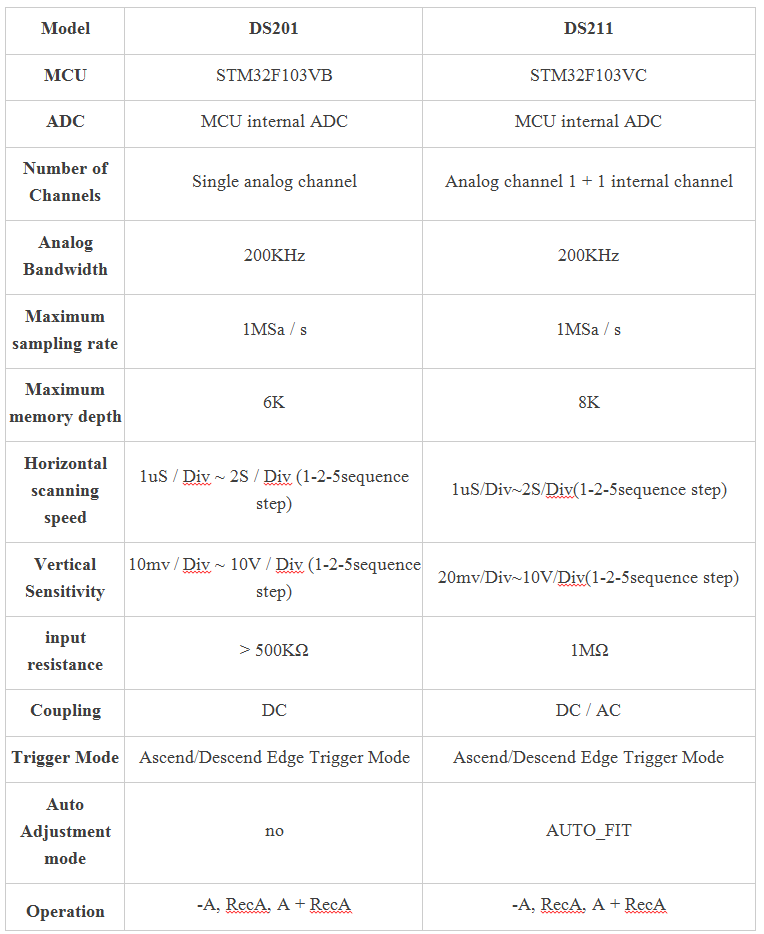

This DS211 is the updated version of DS201, the main comparison is:

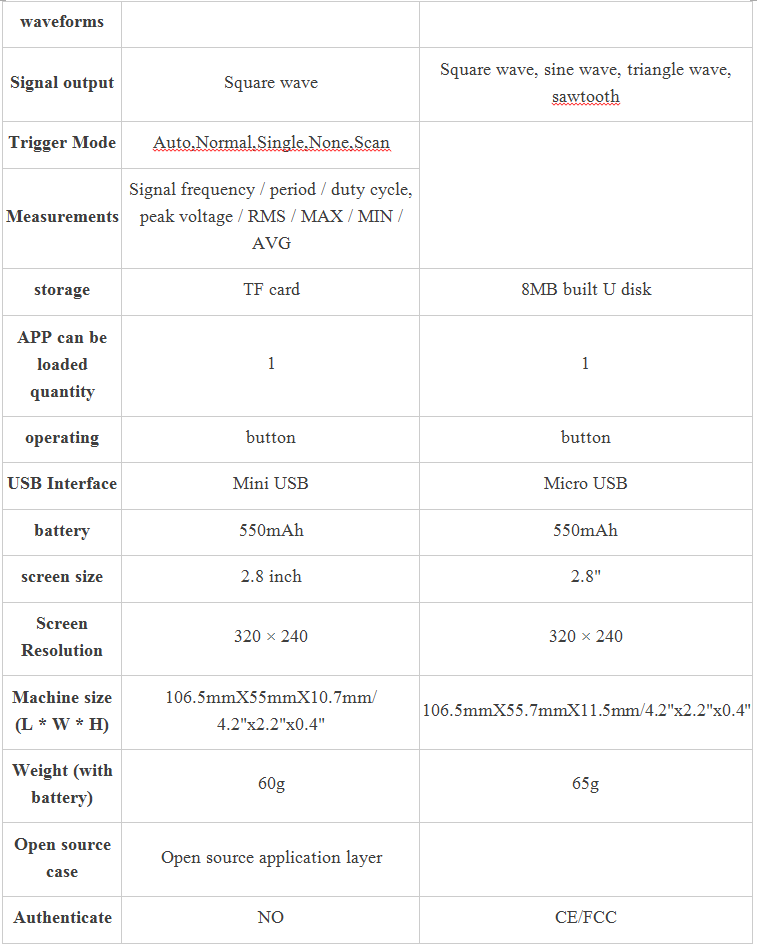

Comparison-DSO-DS211-with-DS201
Comparison-DSO-DS211-and-DS201

Specification:

Lightweight digital storage oscilloscope

Coupling: DC/AC

Max sampling rate: 1 MSa/s

Analog broadband: 200kHz

Max sampling memory depth: 8K

Analog input impedance: 1MΩ

Max input voltage: ±40Vpp(x1 probe)

Vertical sensitivity: 10mv/Div~10V/Div (1-2-5 sequence step)

Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 sequence step)

2.8"color TFT LCD display (320×240 pixels)

Recharging through the mini USB port

Internal 500mAh lithium battery

Weight: 65g

Features:

Absolutely Open Hardware

Rising/falling edge trigger

Compact rectangular housing

Large display screen

Buttons on the side

Mini pocket-sized

Compact and lightweight

Store file as BMP, DAT, BUF, or CSV format

Use built-in flash disk to save/read waveform image

Math waveforms: DATA, -DATA, Inp+D, Inp-D, -Inp

Output test signal: 10Hz—1MHz (1-2-5 sequence step)

Synchronous mode: auto, normal, single, none, scan

Package List:

1 x Oscilloscope Probe

Documents:

DS211 User Manual/Fireware/Source Code/Schematic
