DSO DS212 2- Channel Open Hardware Mini Oscilloscope

DSO DS212 2- Channel Open Hardware Mini Oscilloscope

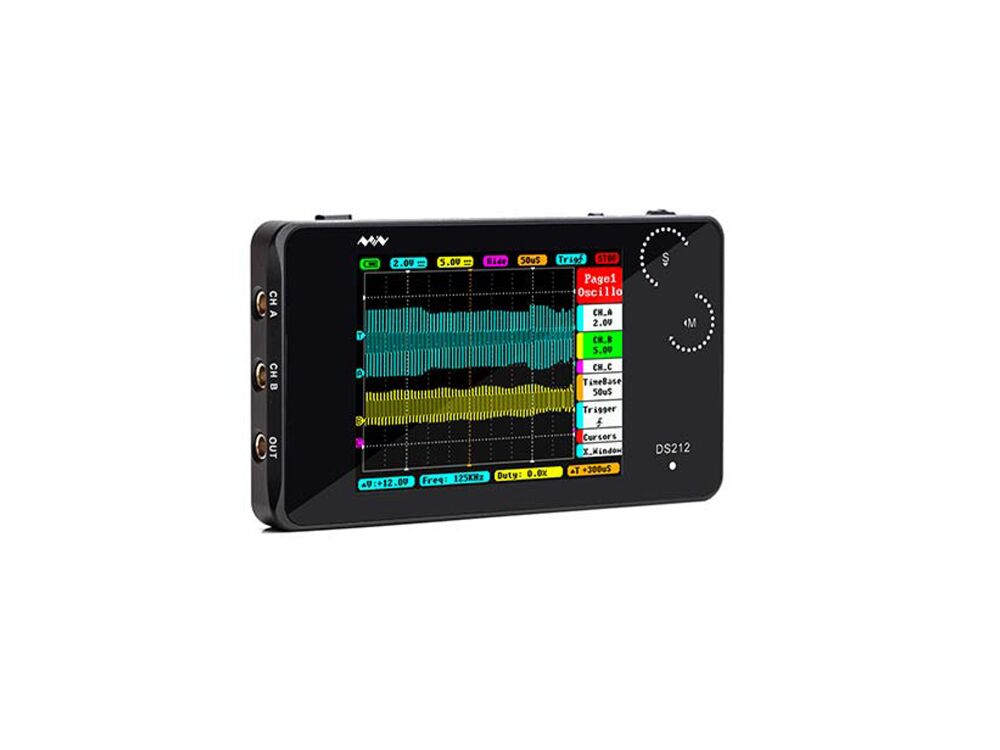

DS212 is the upgrade version of the DS202, it is a 2-channel digital oscilloscope. It is in a new design - two gear for controlling, very convenient for testing. It supports USB flash disk storage and USB charging. It is widely applicable in academic experiments, electronics maintenance, electronic engineering tasks, etc.

• New design - two gear for controlling, very convenient for testing.
• Pocket-size and lightweight.
• Chargeable lithium battery, 4 hours' working duration.
• Equipped with a 320*240 color display.

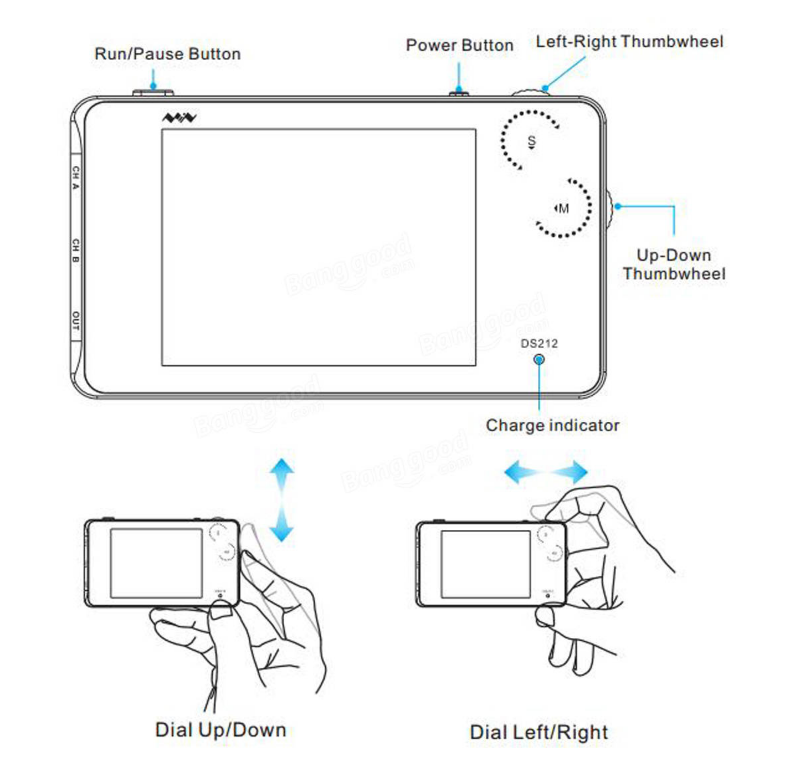

DSO-DS212-Mini-Oscilloscope_1

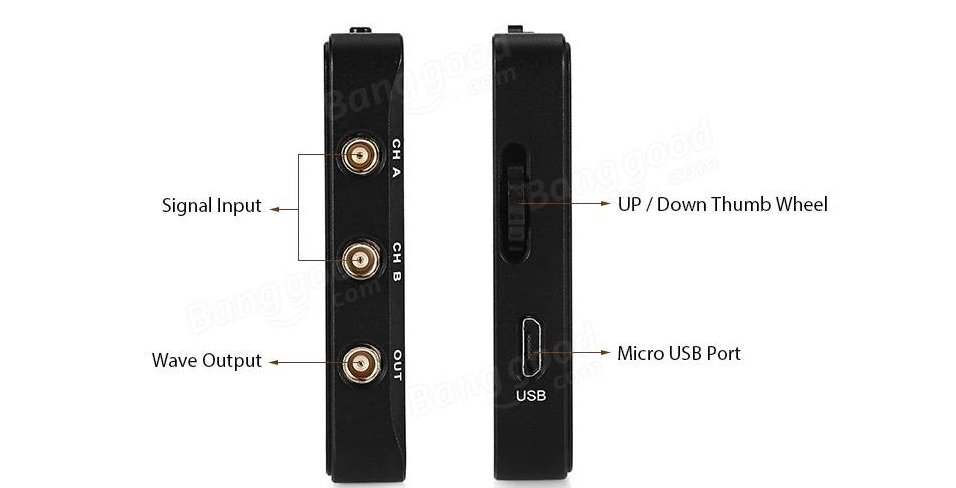

DSO-DS212-Mini-Oscilloscope_2

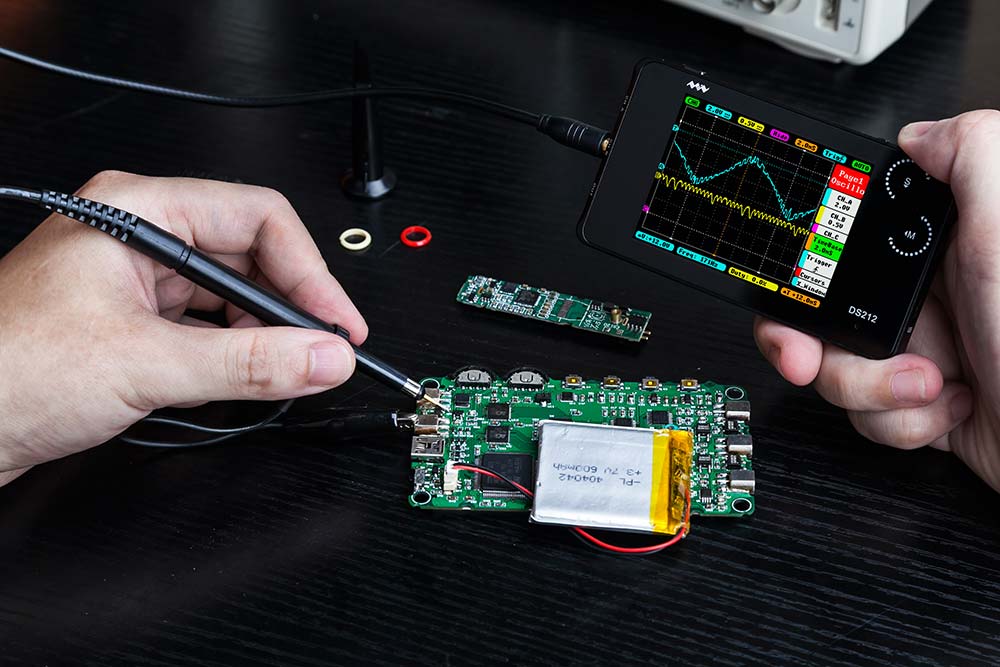

DSO-DS212-Mini-Oscilloscope_3
DSO-DS212-Mini-Oscilloscope_4

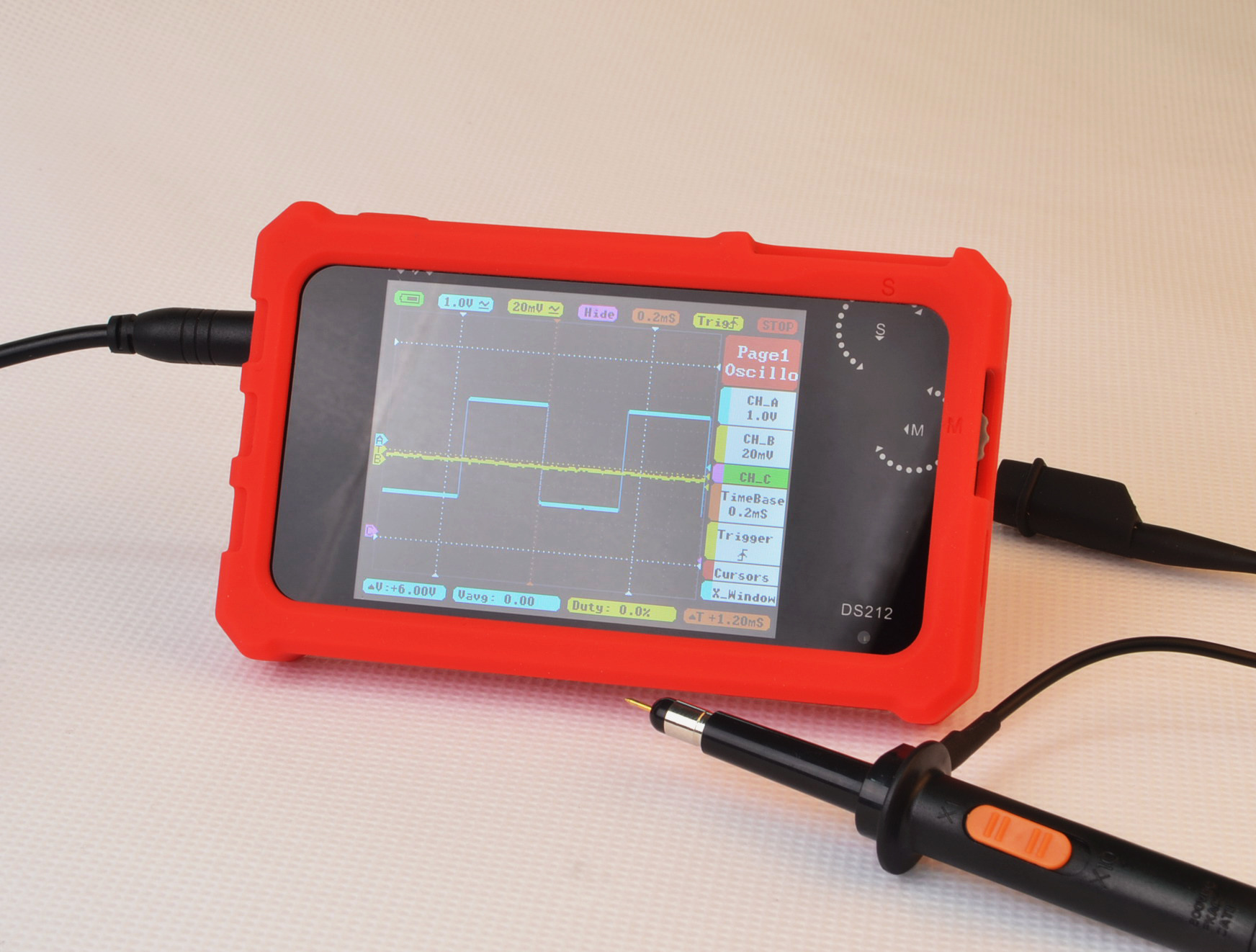

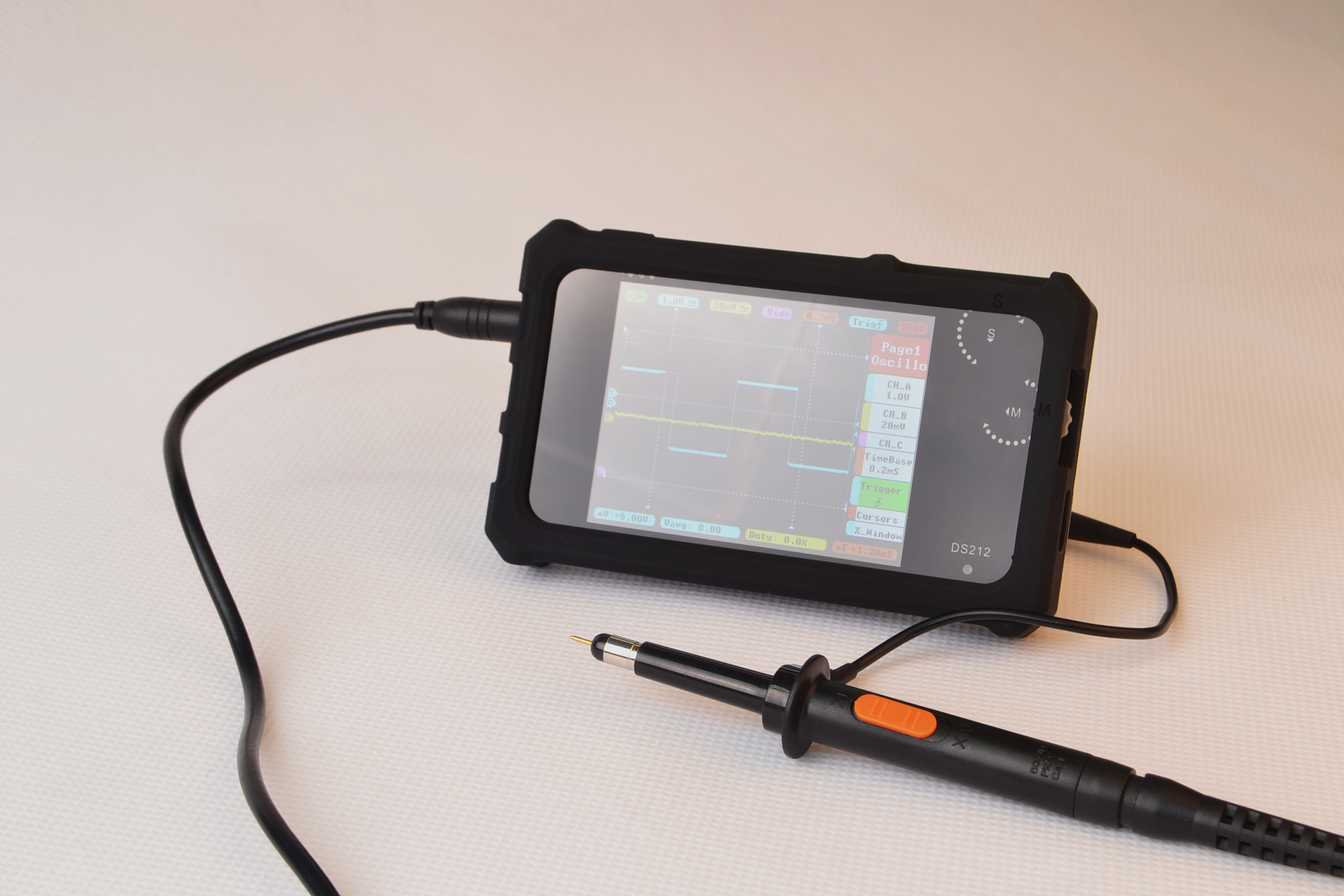

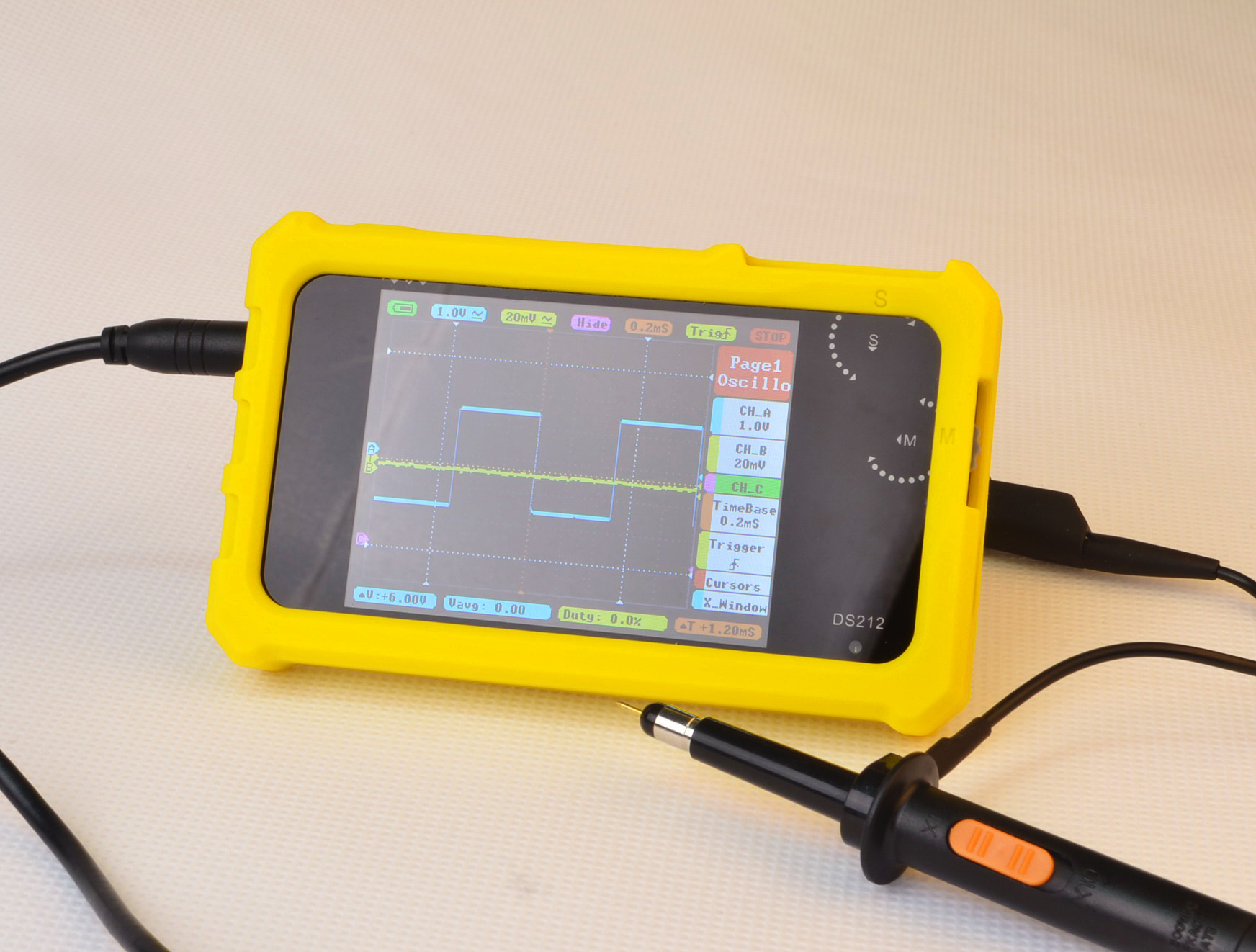

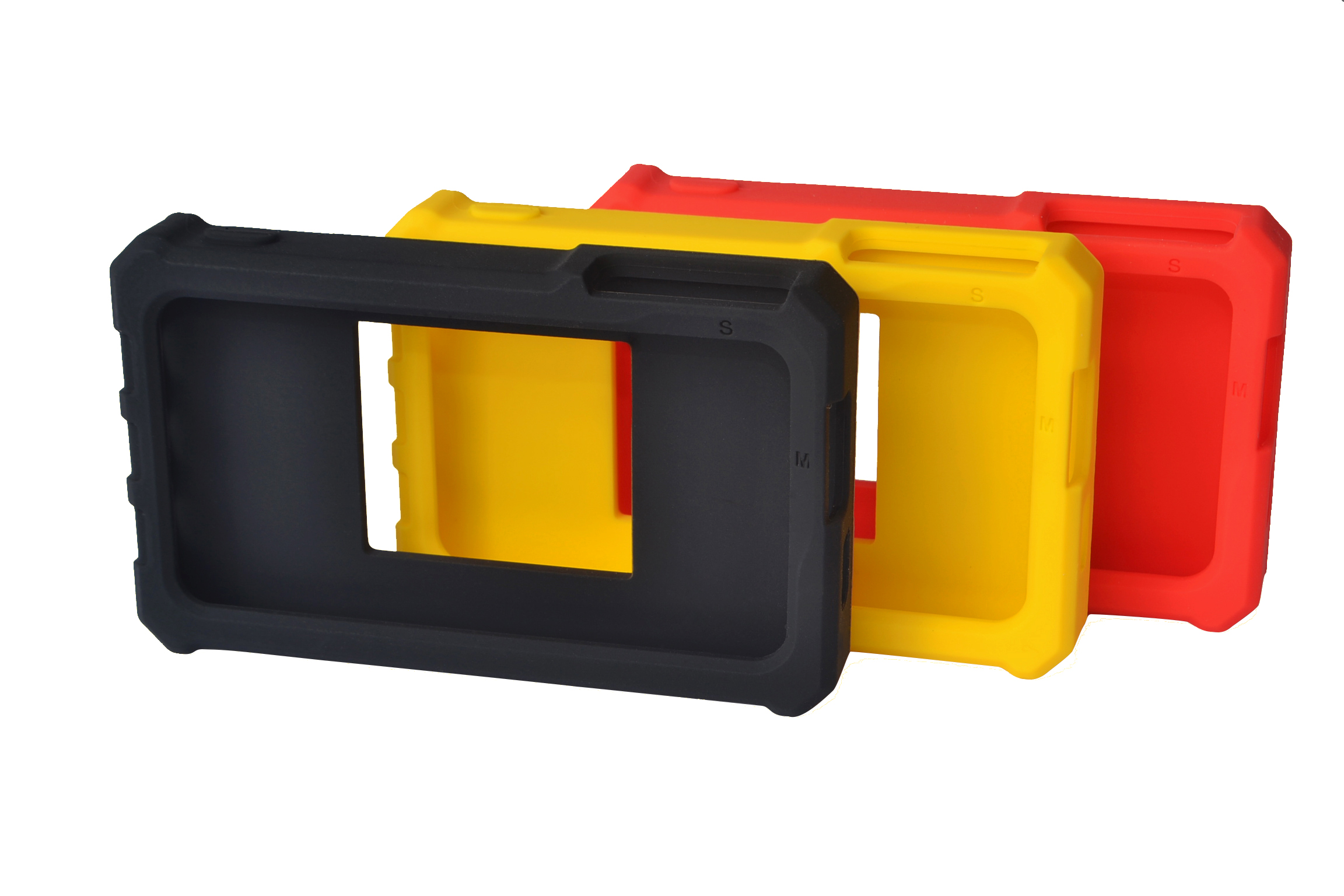

Ordering DS212 From Makerfabs now you will get FREE Silica gel Protecting Case, Red/Yellow/Black color available: DSO-DS212-Mini-Oscilloscope_5
DSO-DS212-Mini-Oscilloscope_6
DSO-DS212-Mini-Oscilloscope_7
DSO-DS212-Mini-Oscilloscope_8

Features:

  • Rising/Falling edge trigger
  • Store file as BMP, DAT, BUF, or CSV format
  • Math waveforms:-A, -B, A+B, A-B, Rec A, RecB, RecC
  • Synchronous mode: Auto, Normal, Single, None, Scan
  • Inbuilt 8MB U disk storage for waveform data and images
  • Modes of vertical precise, horizontal precise measurement, and triggering threshold
  • Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/ Vpp/ Vmax/ Vmin/ Vavg
  • Inbuilt signal Generator:10Hz~1MHz square wave (duty adjustable) or 10Hz~20KHz Sine/ Square/ Triangle/ Sawtooth wave
  • Features:

  • Max sample rate: 10MSa/s
  • Analog bandwidth: 1MHz
  • Max sample memory depth: 8K
  • Analog input impedance: 1MΩ
  • Max input voltage: ±40V(X1 probe)
  • Coupling: AC/DC
  • Vertical sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step)
  • Horizontal sensitivity: 1uS/Div~2S/Div(1-2-5 sequence step)
  • Dimension: 100mm X 56.5mm X 10.7mm/li>
  • Case side thumbwheel control
  • Screen: 2.8" Full Color TFT LCD Display (320X240 pixels)
  • Recharging through Micro USB port
  • Internal 500mAh Lithium battery
  • Compliant with EU/USA certification CE/FCC
  • Package List:

  • 1 x DSO DS212 Mini Oscilloscope
  • Documents:

  • DS212 User Manal/firmware/Source Code/Schematic
  • DS212 Hackaday review
