Espressif ESP32-S3-DevKitC-1 (N8R8_8MB Falsh 8MB PSRAM)

New Espressif ESP32-S3-DevKitC-1 (N8R8_8MB Falsh 8MB PSRAM)

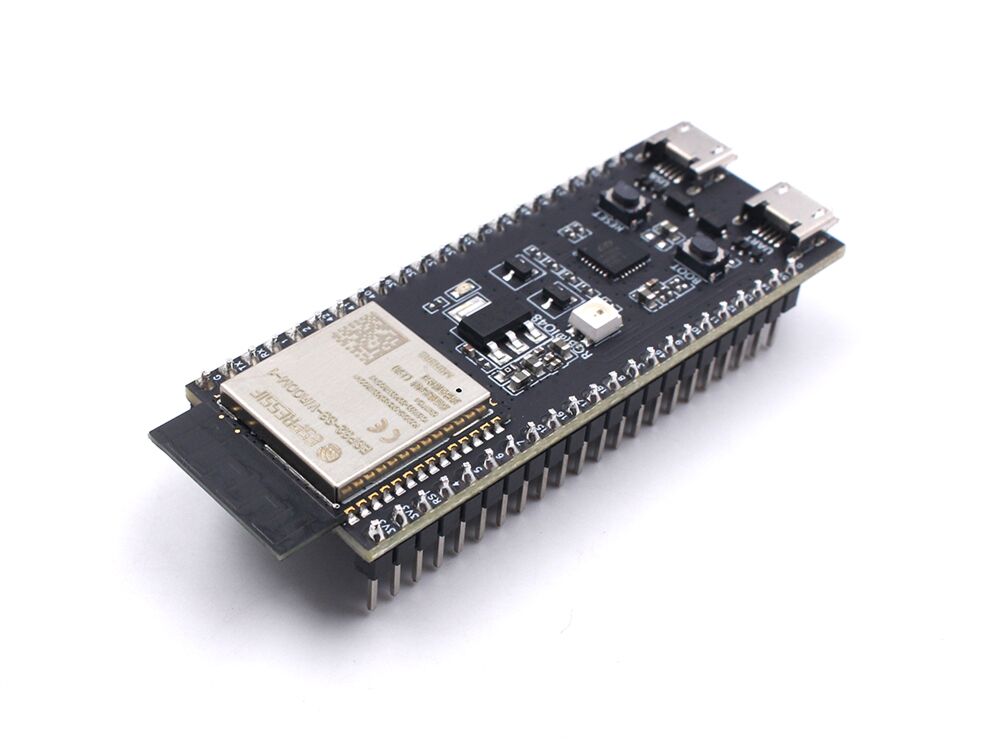

The ESP32-S3-DevKitC-1 is an entry-level development board equipped with ESP32-S3-WROOM-1, a general-purpose Wi-Fi + Bluetooth LE MCU module that integrates complete Wi-Fi and Bluetooth LE functions. This version is equipped with the ESP32-S3-WROOM-1 (PCB antenna) with 8MB Flash and 8 MB PSRAM.

Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S3-DevKitC-1 on a breadboard. We particularly like that there's a debug UART/USB port and a separate native USB port, so you can upload/debug/USB all at once.

At the core of the modules is an ESP32-S3 series of SoC, an Xtensa® 32-bit LX7 CPU that operates at up to 240 MHz. You can power off the CPU and make use of the low-power co-processor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32-S3 integrates a rich set of peripherals including SPI, LCD, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI® controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers, and watchdogs, as well as up to 45 GPIOs. It also includes a full-speed USB 1.1 On-The-Go (OTG) interface to enable USB communication.

Features:

There are three mutually exclusive ways to provide power to the board:
  • USB-to-UART Port and ESP32-S3 USB Port (either one or both), default power supply (recommended)
  • 5V and G (GND) pins
  • 3v3 and G (GND) pins
  • ESP32-S3-DevKitC-1
    ESP32-S3-DevKitC-2
    ESP32-S3-DevKitC-3

    Documents:

  • Datasheet
