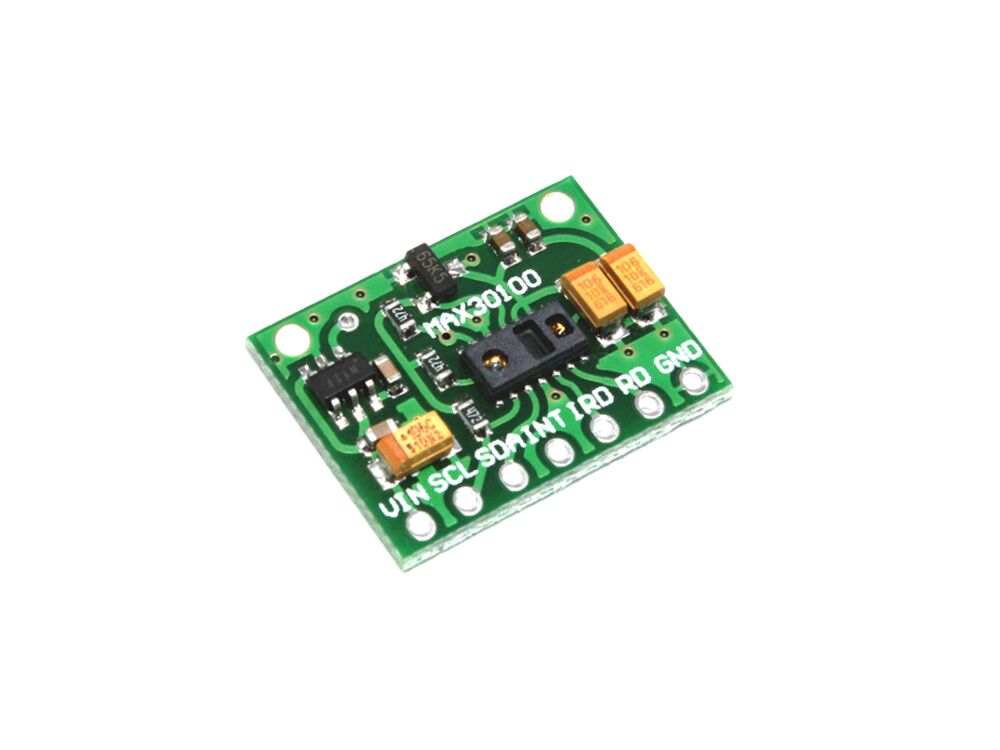

MAX30100 Pulse Oximeter SpO2 and Heart-Rate Sensor Module

MAX30100 Pulse Oximeter SpO2 and Heart-Rate Sensor Module

The MAX30100 is an integrated pulse oximetry and heart rate monitor sensor solution. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.

The MAX30100 breakout operates from 1.8V and 5.5V power supplies and can be powered down through software with negligible standby current, permitting the power supply to remain connected at all times.



  • Working voltage: 1.8-5.5V
  • Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design
  • Integrated LEDs, Photo Sensor, and High-Performance Analog Front -End
  • Ultra-Low-Power Operation Increases Battery Life for Wearable Devices
  • Programmable Sample Rate and LED Current for Power Savings
  • Ultra-Low Shutdown Current (0.7µA, typ)
  • Package List:

  • 1 x MAX30100 Pulse Oximeter SpO2 and Heart-Rate Sensor Module
  • Documents:

  • Datasheet
  • Arduino demo code
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 20503
    • Product Code: MSO30100M
    • Availability: In Stock
    • $3.20
    • 21 or more $1.60
