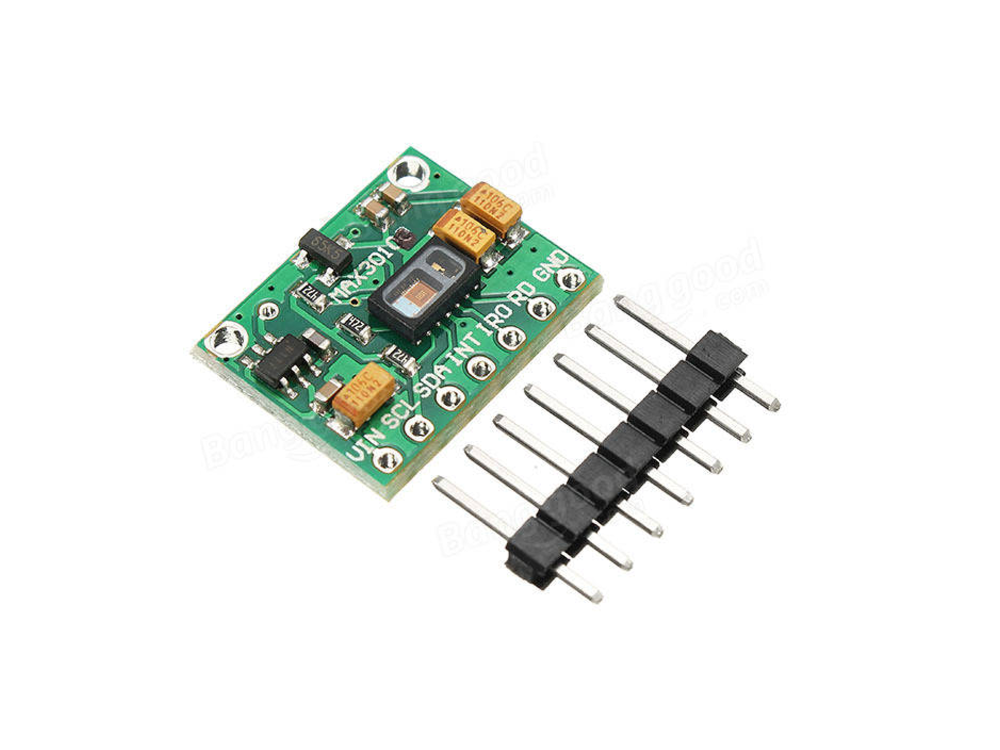

MAX30102 Pulse Oximeter & Heart-Rate Module

MAX30102 Pulse Oximeter & Heart-Rate Module

The MAX30102 is integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection.

The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Features:

  • Tiny 12.7mm x 12.7mm (0.5in x 0.5in) Board Size
  • Free Algorithm
  • Highly-integrated, small-size sensor
  • Non-chest based heart-rate/SpO2 detection
  • Ultra-low power consumption
  • Package List:

  • 1 x MAX30102 Pulse Oximeter & Heart-Rate Module
  • Documents:

  • MAX30102 Pulse Oximeter and Heart-Rate Module
  • MAX30102 Datasheet
