nRF52832 BLE Node

nRF52832 BLE Node

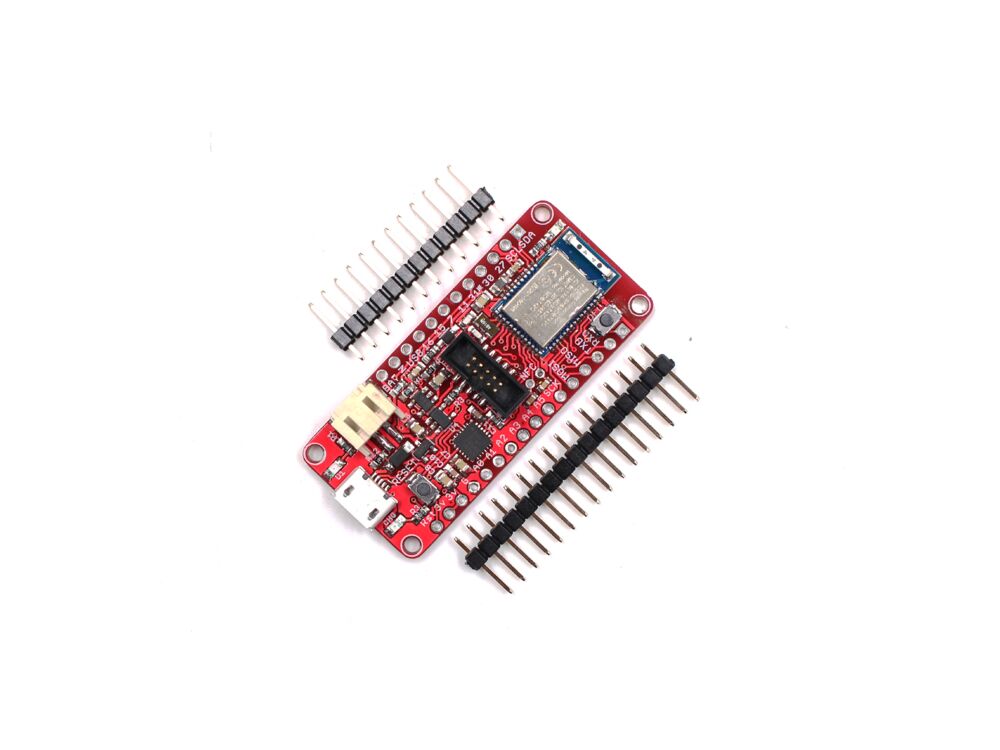

The nRF52832 BLE Node based on nRF52832, integrates GPIO, PWM, IIC, analog inputs, PWM, timers, etc all in one board. Leaving out the extra microcontroller means the price, complexity, and power-usage are all lower/better. It allows you to run code directly on the nRF52832, straight from the Arduino IDE as you would with any other MCU or Arduino compatible device.

It is a built-in USB and battery charging.

Features:

  • Working voltage: 3.7V Lipo battery or USB Connector
  • ARM Cortex M4F running at 64MHz
  • 512KB flash and 64KB SRAM
  • Built-in USB Serial converter
  • Bluetooth Low Energy compatible 2.4GHz radio
  • FCC / IC / TELEC certified module
  • Up to +4dBm output power
  • 19 GPIO, 8 x 12-bit ADC pins, up to 12 PWM outputs
  • Reset & DFU button
  • SWD connector for debugging
  • Package List:

  • 1 x nRF52832 BLE Node
