nRF52832 BLE4.2 Module with PA

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

BLE4.2 CC2640 Module

BLE4.2 CC2640 Module

nRF52832 BLE4.2 Module

nRF52832 BLE4.2 Module

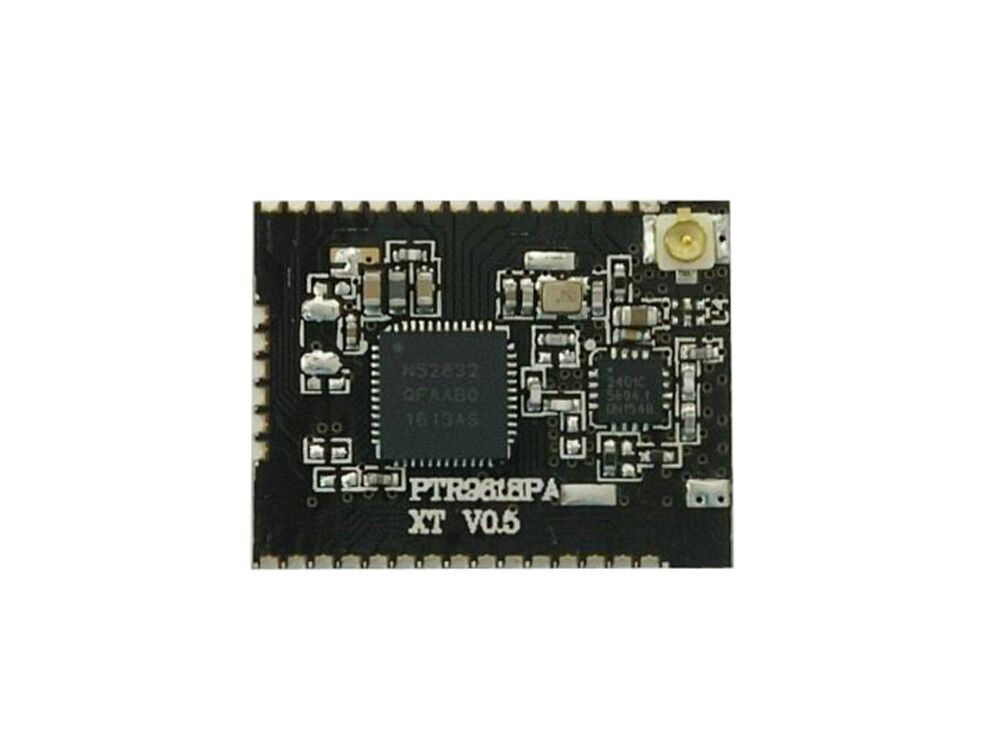

nRF52832 BLE4.2 Module with PA

Be the first to review this product

$6.50

Availability: In stock

SKU

MCB52832P

The PTR9618PA ultra-low power Bluetooth Low Energy/ANT/2.4GHz Proprietary Multi-protocol modules based on the Nrf52832 from Nordic Semiconductor. The module with an ARM Cortex M4F 32 bit processor, embedded 2.4GHz transceiver, and integrated antenna provide a complete solution with no additional RF design, allowing faster time to market, while simplifying designs, reducing BOM costs, also reduce the burden of Regulatory approvals to enter the world market. Making you more quickly into the Bluetooth smart application and remove the worries.

Features:

System on Module(SOM) base on Nordic nRF52832

Bluetooth Low Energy/ANT/2.4GHz Proprietary Multi-protocol support

Max +20dBm @ setting nRF52832 0dBm output

Complete Bluetooth Low Energy stack/profiles solution (Bluetooth 4.x and Higher)

ARM Cortex M4F 32-bit processor,512kB flash memory, 64kB RAM

31 General Purpose I/O, Configurable mapping Pins, Simple layout of external application

12-bit/200KSPS ADC ,PWM ,SPI Master/Slave(8Mbps)

Two 2-wire Master/Slave (I2 Compatible)

I2S audio interface, PDM audio interface

UART(w/CTS/RTS and DMA)

3×4 – channel PWMs

20 channel CPU independent Programmable Peripheral Interconnect(PPI)

Quadrature Demodulator(QDEC)

128-bit AES HW encryption

5×32bit Timer, 3×24bit Real Timer Counters(RTC), Watchdog Timer

Internal RC Oscillator 32.768kHz(±250ppm)

Over-the-Air(OTA) firmware updates available

Package List:

1 x nRF52832 BLE4.2 Module with PA
