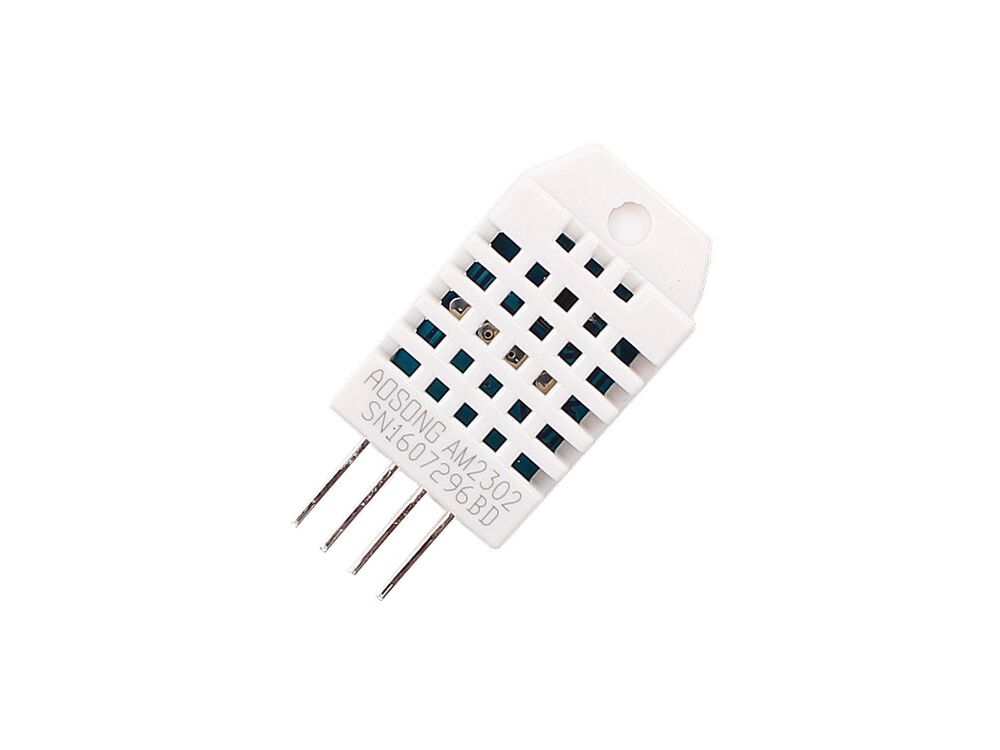

Temperature and Humidity Module AM2302

Temperature and Humidity Module AM2302

AM2302 capacitive humidity sensing digital temperature and humidity module is one that contains the compound has been calibrated digital signal output of the temperature and humidity sensors. Application of a dedicated digital modules collection technology and the temperature and humidity sensing technology, to ensure that the product has high reliability and excellent long-term stability. The sensor includes a capacitive sensor wet components and a high-precision temperature measurement device and connected with a high-performance 8-bit microcontroller. The product has the excellent quality, fast response, strong anti-jamming capability, and high cost. Each sensor is extremely accurate humidity calibration chamber calibration.


  • Voltage: 3 to 5V power and I/O
  • Current: 2.5mA max current use during conversion (while requesting data)
  • Humidity Range: Good for 0-100% humidity readings with 2-5% accuracy
  • Temperature Range: -40 to 80°C temperature readings ±0.5°C accuracy
  • Sampling rate: No more than 0.5 Hz (once every 2 seconds)
  • 4 pins, 0.1" spacing
  • Package List:

  • 1 x Temperature and humidity module AM2302
  • Documents:

  • Datasheet
  • Demo Code
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    • Views: 6669
    • Product Code: MSE2302TH
    • Availability: In Stock
    • $2.80
    This product has a minimum quantity of 6
