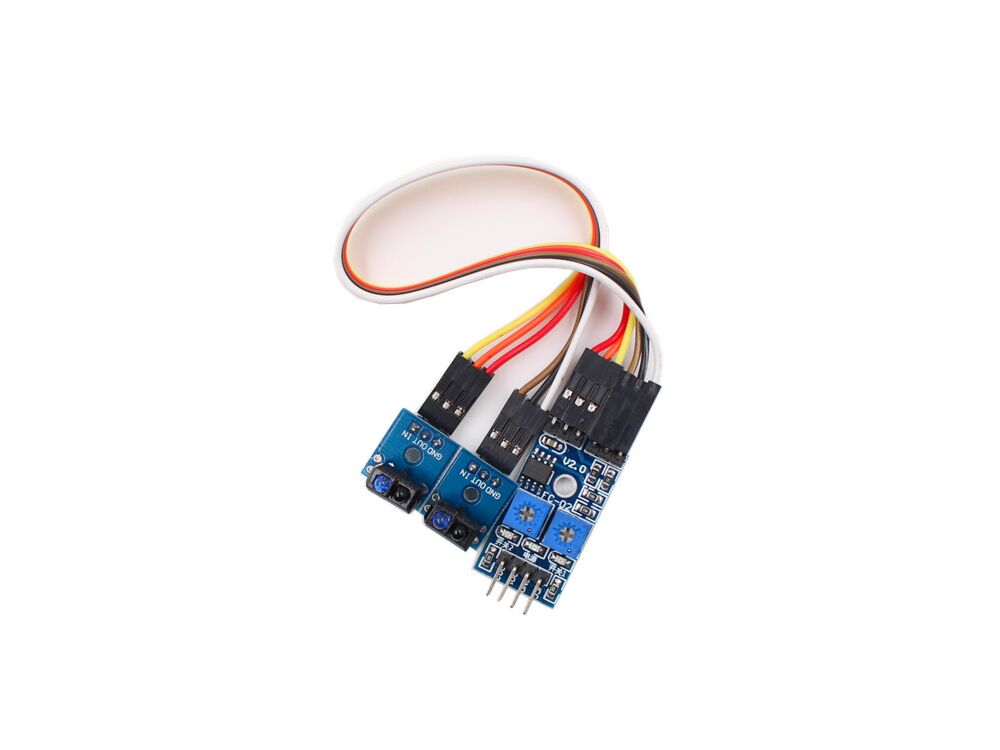

2 Channels IR Reflective Sensor (TCRT5000)

2 Channels IR Reflective Sensor (TCRT5000)

The reflectivity of infrared light varies with the color and distance of the reflecting surface. According to this principle, those 2 channels Infrared Reflective Sensor utilizes a TCRT5000 reflective photosensor module to detect color and distance. When a light-colored object approaches, the signal intensity received by the infrared reflective sensor increases and the indicator LED on board turns red. When a dark-colored object approaches, the intensity decreases and the LED turns off.

This sensor is a basic and widely used part in applications such as line-following cars, rotary speed detection, auto data logging on utility meters, or other situations where color or distance contrast is sharp.

Features:

  • Operating voltage: 3.3 V - 5.5 V
  • Digital output: 0 or VCC
  • Detection distance: 1mm ~ 8mm; Focus distance is 2.5mm
  • The small PCB size: 3.2cm x 1.7cm
  • Using the TCRT5000 infrared reflection sensor
  • Using a wide voltage LM393 comparator
  • Package List:

  • 1 x 2 Channels IR Reflective Sensor (TCRT5000)
  • 8 x Jump Wires
  • 2 x TCRT5000 and Positioning Board
  • Write a review
    Note: HTML is not translated!
        Bad           Good

    Captcha
    • Views: 10254
    • Product Code: MSE0002IR
    • Availability: In Stock
    • $2.00
    • 21 or more $1.80
    This product has a minimum quantity of 6
