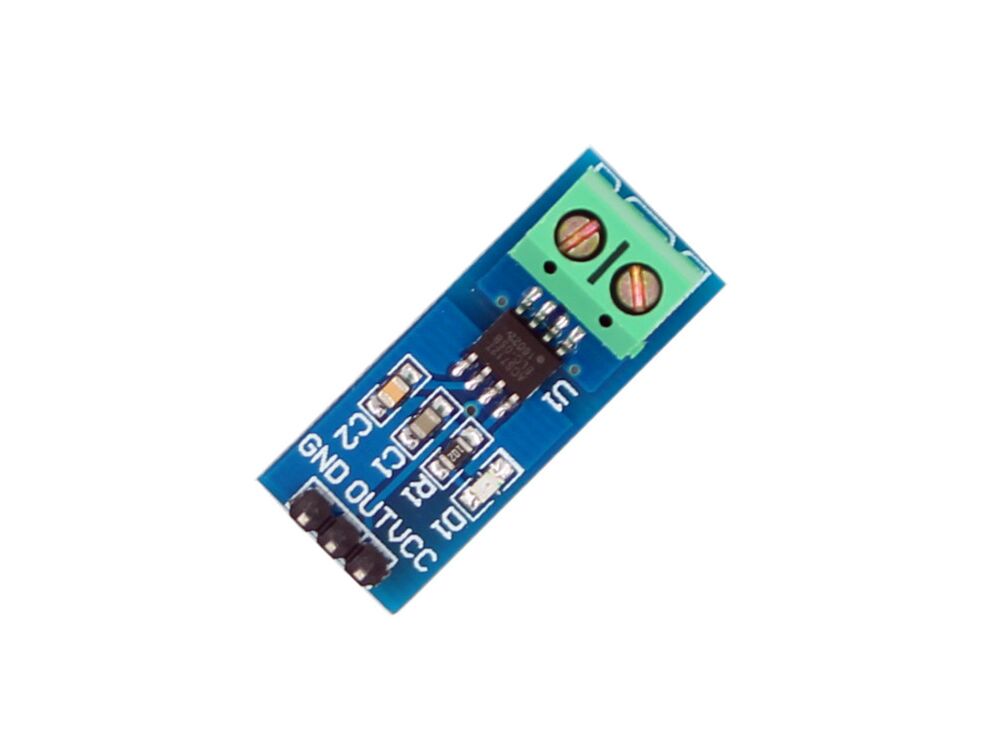

ACS712 Current Sensor- 20A

ACS712 Current Sensor- 20A

ACS712 Current Sensor- 5A

Be the first to review this product
$1.20
Availability: In stock
SKU
MSE71205A
Add to Wish List Add to Compare

The ACS712 sensor reads the current value and converts it into a relevant voltage value. The measurement sensitivity for 5A model is 185mV/A. The sensor can measure positive and negative currents (range -5A…5A), and power supply is 5V for the sensor, and the middle sensing voltage is 2.5V when no current.

Features:

  • Low-noise analog signal path
  • 5 μs output rise time in response to step input current
  • 80 kHz bandwidth
  • Total output error 1.5% at TA= 25°C
  • 5.0V single supply operation
    •

    Package List:

  • 1 x ACS712 Current Sensor- 5A

    • Documents:

  • Schematic
  • Demo code
